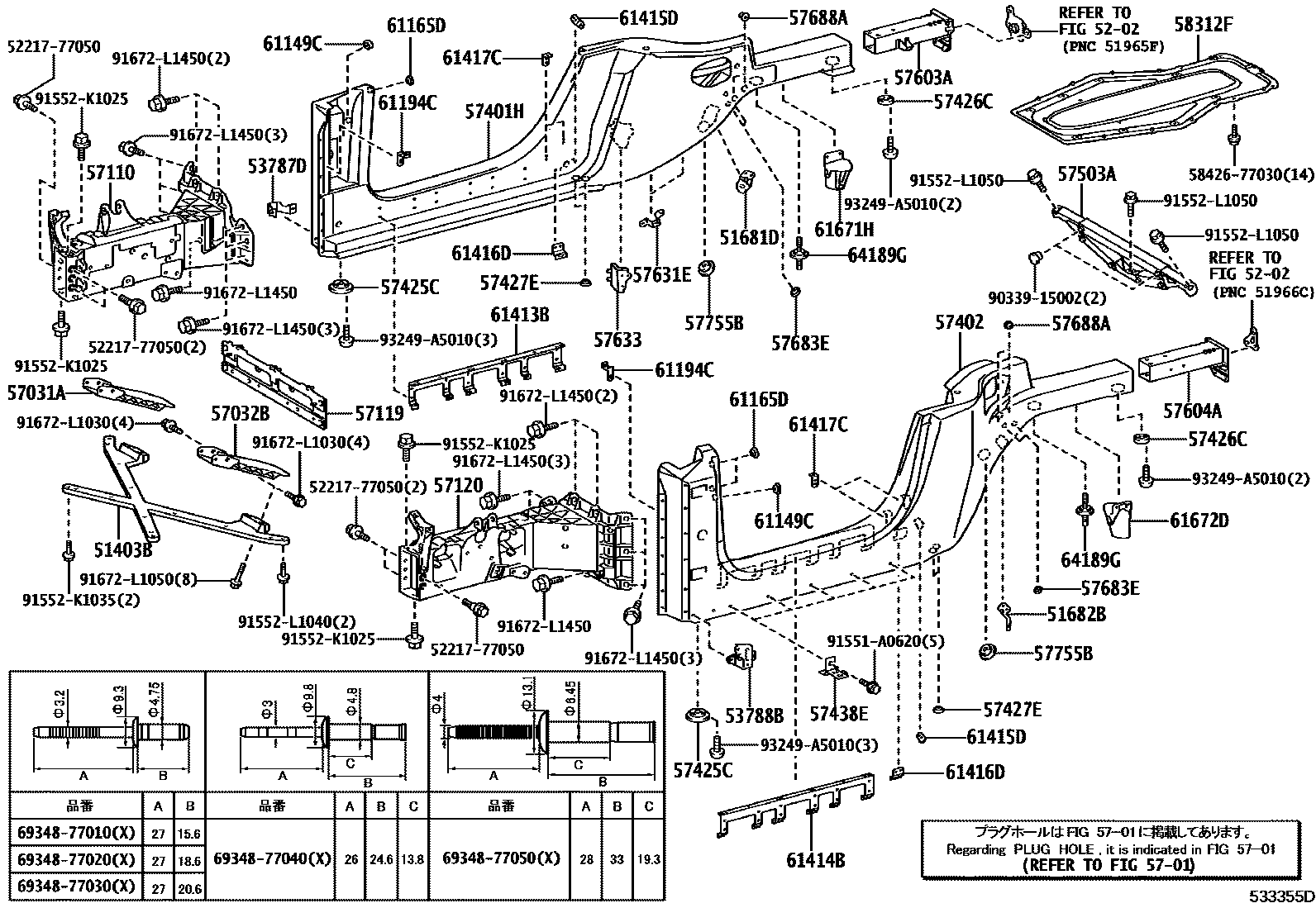

FLOOR SIDE MEMBER
51403BBRACE SUB-ASSY, FRONT SUSPENSION MEMBER
51681DBRACKET, FLEXIBLE HOSE, RH
51682BBRACKET, FLEXIBLE HOSE, LH
5202
53787DGUSSET, FRONT FENDER APRON, LOWER RH
53788BGUSSET, FRONT FENDER APRON, LOWER LH
5701
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57110MEMBER ASSY, FRONT SIDE, RH
57119PLATE, FRONT SIDE MEMBER, FRONT
57120MEMBER ASSY, FRONT SIDE, LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57425CPLATE, REAR STEP PANEL, NO.1
57426CPLATE, REAR STEP PANEL, NO.2
57427EREINFORCEMENT, FRONT FLOOR TO BRACE
57438EPLATE, REAR STEP SIDE, LH
57503ABRACE SUB-ASSY, CENTER FLOOR CROSSMEMBER
BASIC PACKAGE
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57631EREINFORCEMENT, REAR FLOOR SIDE MEMBER, NO.1
57633EXTENSION, REAR FLOOR SIDE MEMBER
57683EREINFORCEMENT, REAR ABSORBER MOUNTING, NO.3
57688AREINFORCEMENT, REAR FLOOR CROSSMEMBER
57755BPLATE, REAR SUSPENSION MEMBER MOUNTING, FR
58312FPANEL, REAR FLOOR, REAR
BASIC PACKAGE
FLOOR UNDER COVER-WITH(LIGHT)
61149CREINFORCEMENT, FRONT DOOR CHECK
61165DBRACKET, INSTRUMENT PANEL TO COWL SIDE
61194CBRACKET, COWL SIDE TRIM
61413BPANEL, FRONT STEP, RH
61414BPANEL, FRONT STEP, LH
61415DPANEL, FRONT STEP UNDER, RH
61416DPANEL, FRONT STEP UNDER, LH
61417CPANEL, FRONT STEP, INNER RH
61671HSUPPORT, REAR SUSPENSION SPRING, RH
61672DSUPPORT, REAR SUSPENSION SPRING, LH
64189GBOLT, REAR BODY MOUNTING
5221777050BOLT, BODY MOUNTING
5842677030NUT, BATTERY SERVICE HOLE COVER
6934877010JOINT, ADJUSTING
6934877020JOINT, ADJUSTING
6934877030JOINT, ADJUSTING
6934877040JOINT, ADJUSTING
6934877050JOINT, ADJUSTING
9033915002
91551A0620
91552K1025
91552K1035
91552L1040
91552L1050
91672L1030
91672L1050
91672L1450
93249A5010
55 parts on this diagram · 1 diagram in section
