FRONT FENDER APRON & DASH PANEL
53208ASUPPORT SUB-ASSY, HOOD LOCK
53284ARETAINER, FRONT BODY MOUNTING
53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
BASIC PACKAGE
FRONT PERFORMANCE ROD-W/O
53683BRACKET, FRONT SUSPENSION UPPER TO COWL BRACE, RH
53684BRACKET, FRONT SUSPENSION UPPER TO COWL BRACE, LH
53692BRACKET, FRONT SUSPENSION UPPER BRACE
53693BRACKET, FRONT SUSPENSION UPPER BRACE
53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53717DGUSSET, FENDER APRON, RH
53728ABRACKET, FENDER APRON, RH
53729ABRACKET, FENDER APRON, LH
53822FBRACKET, FRONT FENDER, REAR LH
53831EREINFORCEMENT, FRONT FENDER, UPPER RH
53832EREINFORCEMENT, FRONT FENDER, UPPER LH
53833CREINFORCEMENT, FRONT FENDER, LOWER RH
53834GREINFORCEMENT, FRONT FENDER, LOWER LH
53867BRETAINER, FRONT SIDE PANEL
55101PANEL SUB-ASSY, DASH
55149DRETAINER, PEDAL BRACKET
5701
57491CRETAINER, FLOOR MEMBER REINFORCEMENT
57516CRETAINER, FRONT FLOOR TO FRONT CROSS
75861NRETAINER, ROCKER PANEL MOULDING, RH
6934877010JOINT, ADJUSTING
main69348-77010
6934877020JOINT, ADJUSTING
main69348-77020
6934877030JOINT, ADJUSTING
main69348-77030
6934877040JOINT, ADJUSTING
main69348-77040
6934877050JOINT, ADJUSTING
main69348-77050
9046706188
main90467-06188
9054115037
main90541-15037
91551J0616
main91551-J0616
91551J0825
main91551-J0825
91551L0830
main91551-L0830
91551L0845
main91551-L0845
91551L0855
main91551-L0855
91552K1030
main91552-K1030
91552L1035
main91552-L1035
91553L0860
main91553-L0860
91671J0635
main91671-J0635
9415120841
main94151-20841
9415180640
main94151-80640

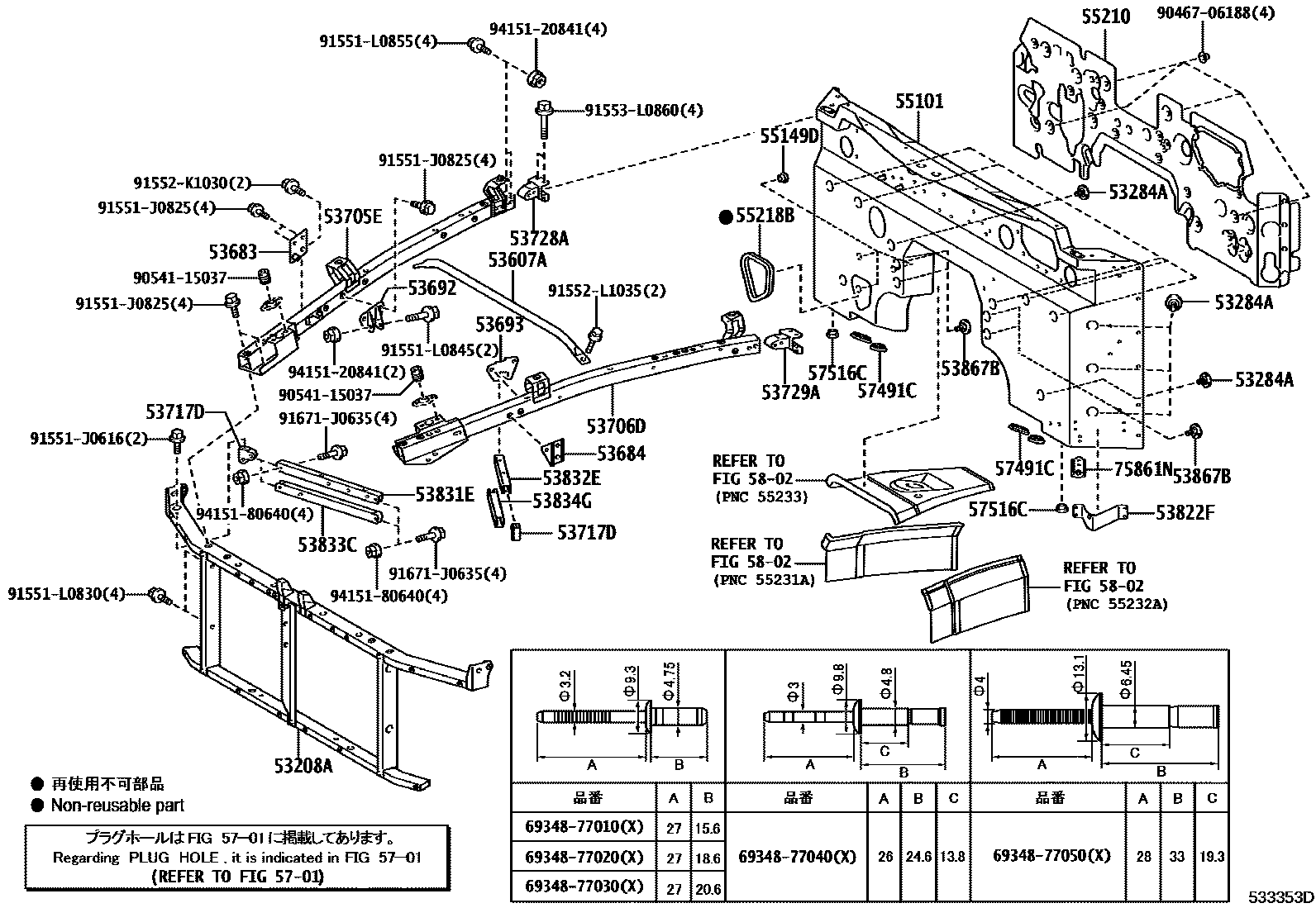

44 parts on this diagram · 2 diagrams in section
