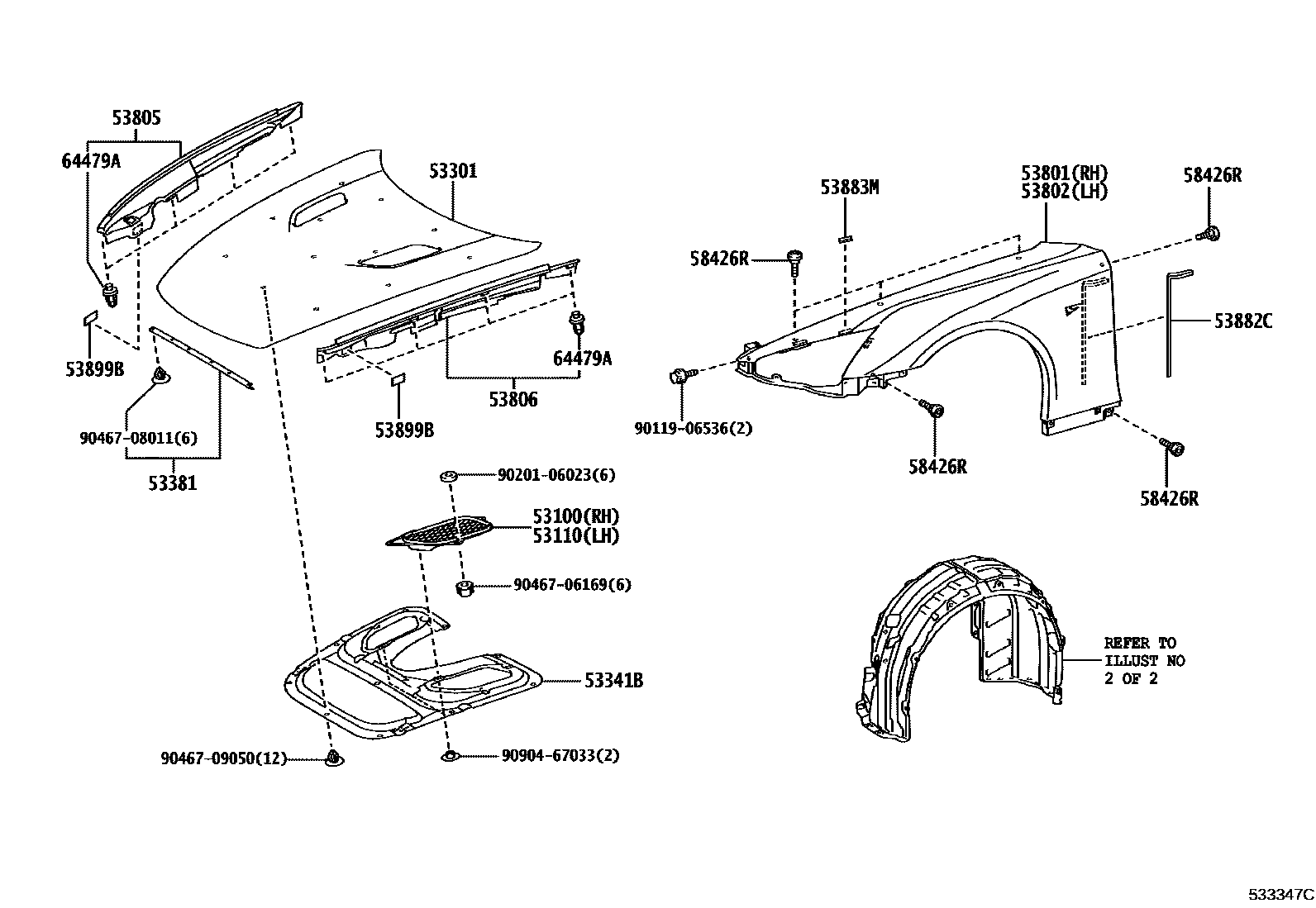

HOOD & FRONT FENDER

0001 1 0002 1

53100GRILLE ASSY, RADIATOR, RH

main53100-77010iLFA10201012

53110GRILLE ASSY, RADIATOR, LH

main53110-77010iLFA10201012

53301HOOD SUB-ASSY

main53301-77020-B1iLFA10201012-201212

GRAY

53341BINSULATOR, HOOD

main53341-77010iLFA10201012

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-77010iLFA10201012

53801FENDER SUB-ASSY, FRONT RH

main53811-77020-B1iLFA10201012-201212

GRAY

53802FENDER SUB-ASSY, FRONT LH

main53812-77020-B1iLFA10201012-201212

GRAY

53805SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH

main53805-77010iLFA10201012

53806SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH

main53806-77010iLFA10201012

53882CSEAL, FRONT FENDER MAIN

main53882-77010iLFA10201012

53883MSEAL, FRONT FENDER

main53883-77010iLFA10201012

53899BSUPPORT, FRONT FENDER PANEL

main53899-77020iLFA10201012

58426RBOLT(FOR FRONT FENDER)

main58426-77020iLFA10201012

64479ACLIP, ENGINE HOOD SIDE PANEL

main64479-77010iLFA10201012

9011906536

main90119-06536

9020106023

main90201-06023

9046706169

main90467-06169

9046708011

main90467-08011

9046709050

main90467-09050

9090467033

main90904-67033

20 parts on this diagram · 2 diagrams in section
