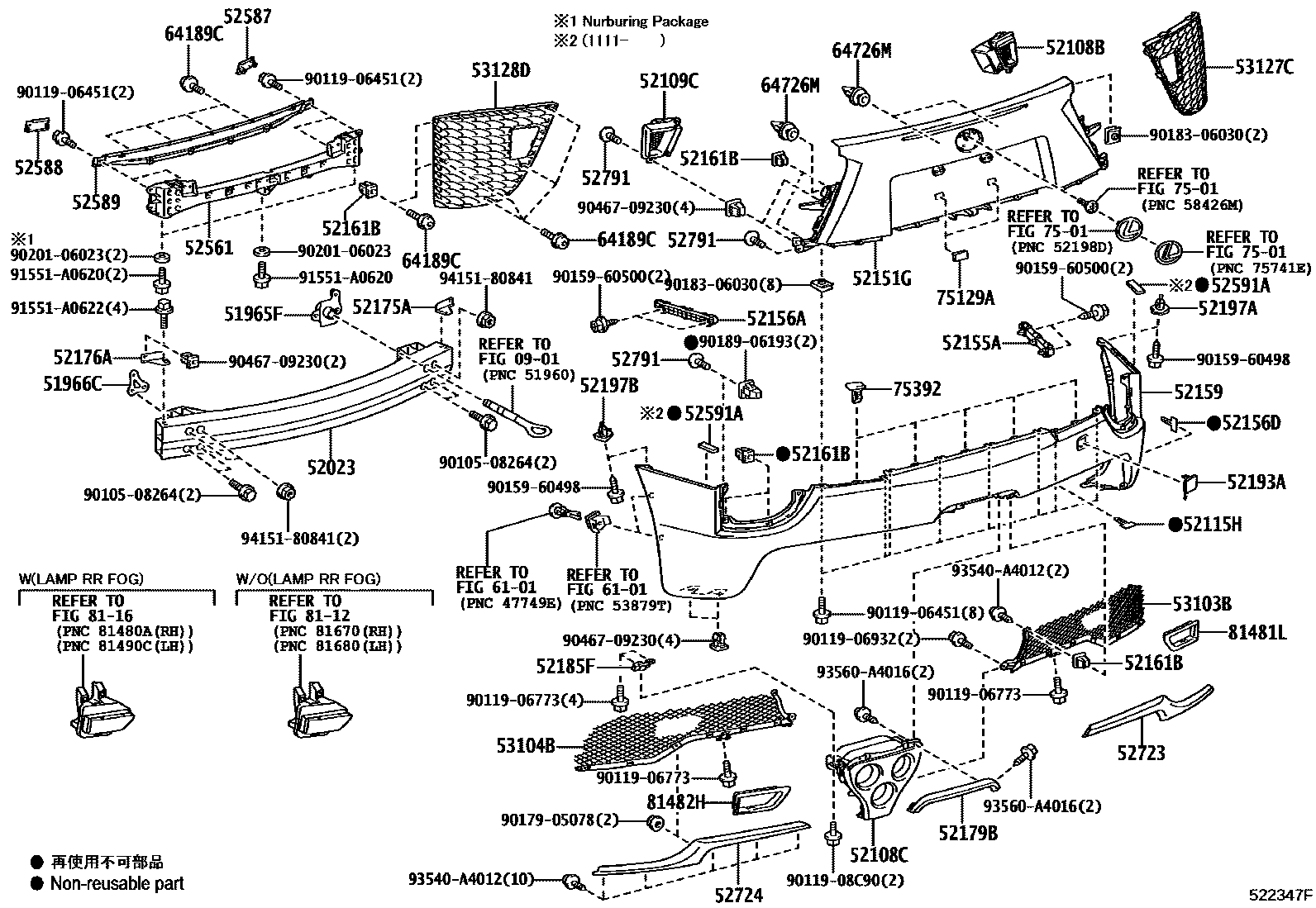

REAR BUMPER & BUMPER STAY
0901
51965FRETAINER, REAR HOOK, RH
51966CRETAINER, REAR HOOK, LH
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52108BEXTENSION SUB-ASSY, REAR BUMPER SIDE, RH
52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER
52109CEXTENSION SUB-ASSY, REAR BUMPER SIDE, LH
52115HSUPPORT, REAR BUMPER SIDE
52151GEXTENSION, REAR BUMPER
GRAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52156DSUPPORT, REAR BUMPER SIDE, LWR
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
52175ABRACKET, REAR BUMPER ARM MOUNTING, RH
52176ABRACKET, REAR BUMPER ARM MOUNTING, LH
52179BPLATE, REAR BUMPER BAR
52185FBRACKET, REAR BUMPER SIDE MOUNTING
52193APLATE, BUMPER MOULDING MOUNTING, RH
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52561RETAINER, REAR BUMPER, UPPER CENTER
52587RETAINER, REAR BUMPER END, RH
52588RETAINER, REAR BUMPER END, LH
52589RETAINER, REAR BUMPER END, NO.2
52591ASEAL, REAR BUMPER
52723MOULDING, REAR BUMPER EXTENSION, RH
52724MOULDING, REAR BUMPER EXTENSION, LH
52791BOLT, BUMPER MOULDING SET, NO.1
53103BGRILLE SUB-ASSY, RADIATOR, LOWER RH
53104BGRILLE SUB-ASSY, RADIATOR, LOWER LH
53127CGRILLE, RADIATOR, LOWER RH
53128DGRILLE, RADIATOR, LOWER LH
6101
64189CBOLT, REAR BODY MOUNTING
64726MCLIP, LUGGAGE TRIM, REAR
7501
75129ACUSHION, REAR LICENCE PLATE
75392RETAINER, OUTSIDE MOULDING
8112
8116
81481LCOVER, FOG LAMP, RH
81482HCOVER, FOG LAMP, LH
9010508264
main90105-08264
9011906451
main90119-06451
9011906773
main90119-06773
9011906932
main90119-06932
9011908C90
main90119-08C90
9015960498
main90159-60498
9015960500
main90159-60500
9017905078
main90179-05078
9018306030
main90183-06030
9018906193
main90189-06193
9020106023
main90201-06023
9046709230
main90467-09230
91551A0620
main91551-A0620
91551A0622
main91551-A0622
93540A4012
main93540-A4012
93560A4016
main93560-A4016
9415180841
main94151-80841
60 parts on this diagram · 1 diagram in section
