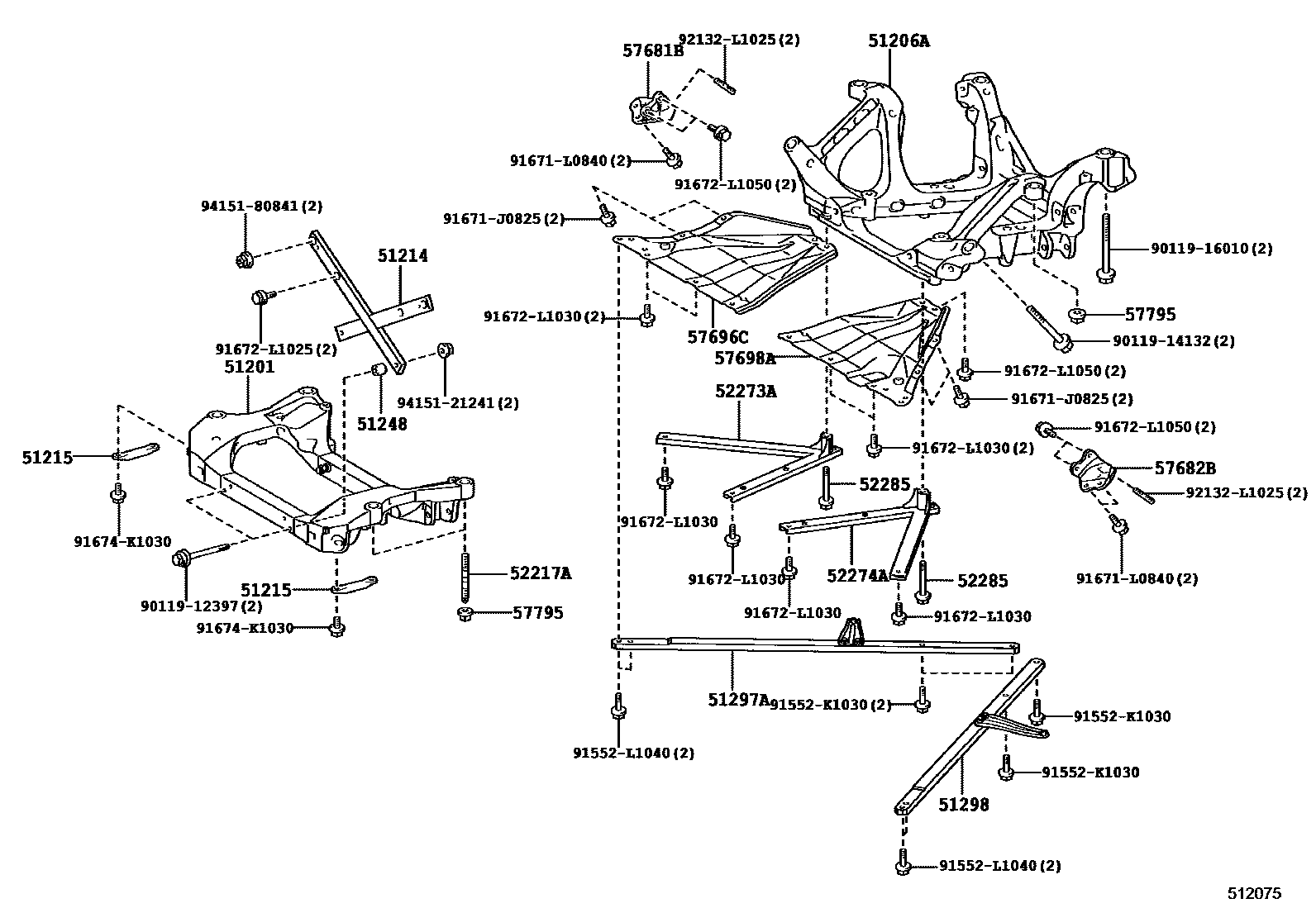

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-77010iLFA10¥362,000201012-201212

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-77010iLFA10¥515,000201012

51214BRACE, FRONT SIDE MEMBER TO SUSPENSION CROSSMEMBER

main51204-77010iLFA10¥30,300201012

51215REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER

main51215-77010iLFA10¥1,720201012

51248SPACER, FLAME CROSSMEMBER

main51248-77010iLFA10¥1,450201012

51297AREINFORCEMENT, REAR SUSPENSION MEMBER, LOWER RH

main51297-77010iLFA10¥21,600201012

51298REINFORCEMENT, REAR SUSPENSION MEMBER, LOWER LH

main51298-77010iLFA10¥21,600201012

52217ABOLT, BODY MOUNTING

main52217-77030iLFA10¥7,200201012

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-77010iLFA10¥37,400201012

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-77010iLFA10¥37,400201012

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-77010iLFA10¥1,390201012

57681BREINFORCEMENT, REAR ABSORBER MOUNTING MEMBER, RH

main57681-77010iLFA10201012

57682BREINFORCEMENT, REAR ABSORBER MOUNTING MEMBER, LH

main57682-77010iLFA10201012

57696CGUIDE, FUEL TANK CROSSMEMBER, RH

main57696-77010iLFA10¥68,100201012

57698AGUIDE, FUEL TANK CROSSMEMBER, LH

main57698-77010iLFA10¥68,100201012

57795NUT, SUSPENSION MENBER BODY BRACKET

main57795-77010iLFA10¥3,070201012

9011912397

main90119-12397¥340

9011914132

main90119-14132¥540

9011916010

main90119-16010¥780

91552K1030

main91552-K1030¥100

91552L1040

main91552-L1040¥220

91671J0825

main91671-J0825¥70

91671L0840

main91671-L0840¥170

91672L1025

main91672-L1025¥120

91672L1030

main91672-L1030¥120

91672L1050

main91672-L1050¥260

91674K1030

main91674-K1030¥140

92132L1025

main92132-L1025¥220

9415121241

main94151-21241¥100

9415180841

main94151-80841¥80

30 parts on this diagram · 2 diagrams in section
