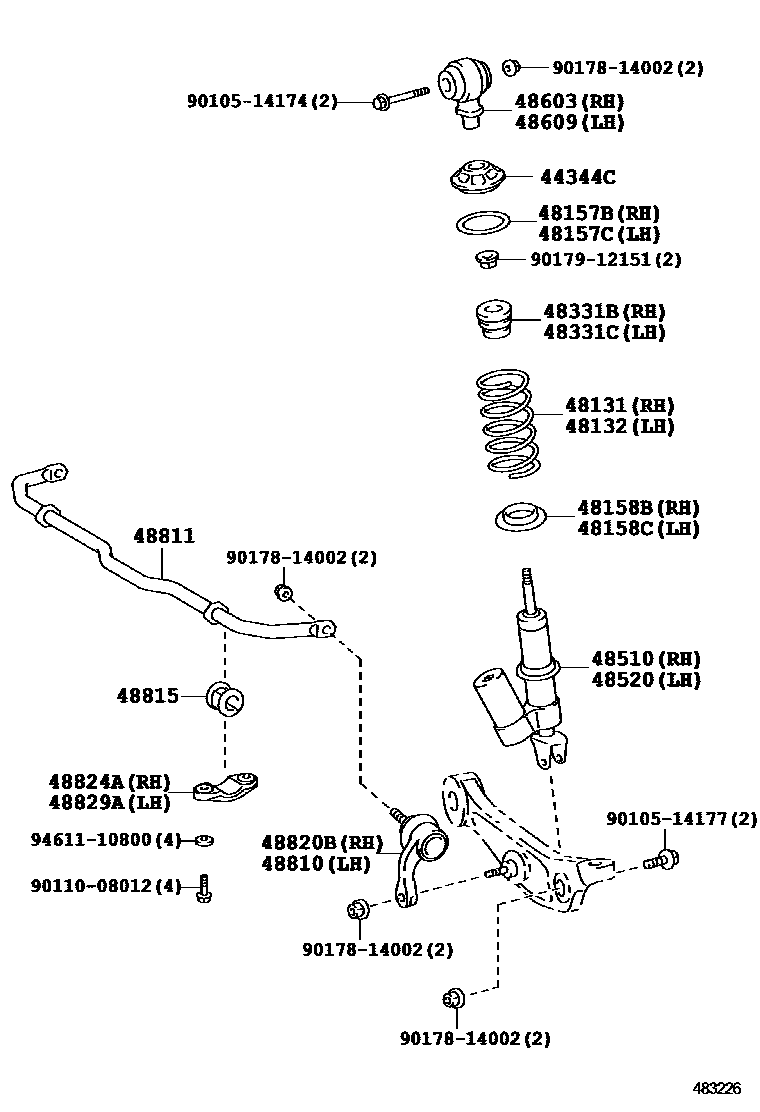

FRONT SPRING & SHOCK ABSORBER

44344CSEAT, SPRING(FOR FRONT SUSPENSION)

main44344-77010×2iLFA10201012

48131SPRING, FRONT COIL, RH

main48131-77010iLFA10201012

main48131-77020iLFA10..EUR201106

BASIC PACKAGE

48132SPRING, FRONT COIL, LH

main48131-77010iLFA10201012

main48131-77020iLFA10..EUR201106

BASIC PACKAGE

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-77020iLFA10201012

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-77020iLFA10201012

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48157-77010iLFA10201012

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48157-77010iLFA10201012

48331BBUMPER, FRONT SPRING, RH

main48331-77010iLFA10201012

48331CBUMPER, FRONT SPRING, LH

main48331-77010iLFA10201012

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-77010iLFA10201012

MARK 48510-77010

main48510-77020iLFA10..EUR201106

MARK 48510-77020,BASIC PACKAGE

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-77010iLFA10201012

MARK 48510-77010

main48510-77020iLFA10..EUR201106

MARK 48510-77020,BASIC PACKAGE

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48680-77010iLFA10201012

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48680-77010iLFA10201012

48810LINK ASSY, FRONT STABILIZER, LH

main48810-77010iLFA10201012

48811BAR, STABILIZER, FRONT

main48811-77010iLFA10201012

main48811-77020iLFA10..EUR201106

BASIC PACKAGE

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-77010×2iLFA10201012

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-77010iLFA10201012

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-77010iLFA10201012

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-77010iLFA10201012

9010514174

main90105-14174

9010514177

main90105-14177

9011008012

main90110-08012

9017814002

main90178-14002

9017912151

main90179-12151

9461110800

main94611-10800

25 parts on this diagram · 1 diagram in section
