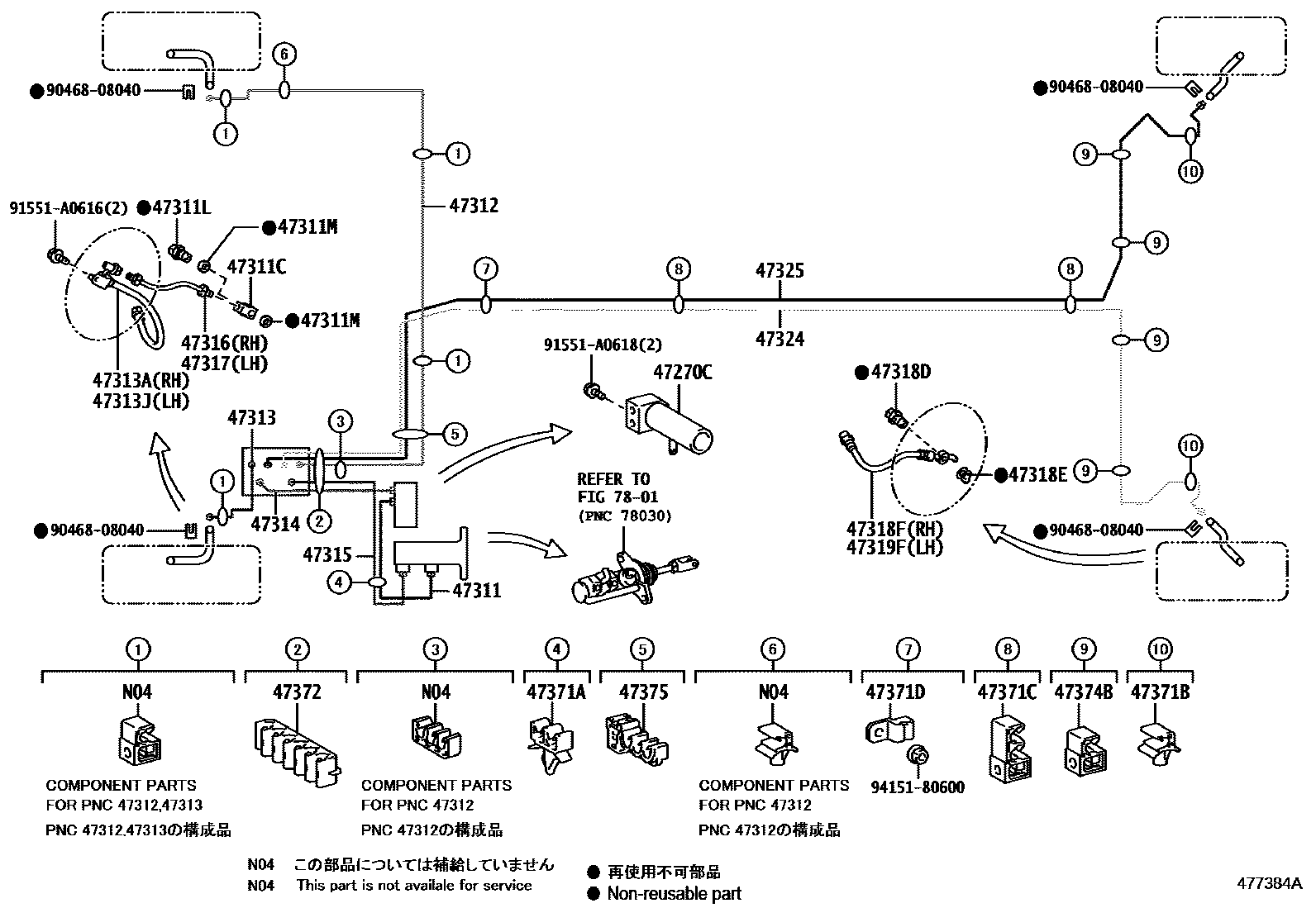

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47270CCYLINDER ASSY, BRAKE STROKE SIMULATOR

main47270-77010iLFA10201012

47311TUBE, FRONT BRAKE, NO.1

main47311-77030iLFA10..LHD201012

main47311-77040iLFA10..RHD201012

47311CUNION(FOR FRONT BRAKE TUBE)

main90405-10073iLFA10201012

47311LBOLT, UNION

main90401-10056iLFA10201012

47311MGASKET

main90430-10012iLFA10201012

47312TUBE, FRONT BRAKE, NO.2

main47312-77010iLFA10201012

47313TUBE, FRONT BRAKE, NO.3

main47313-77010iLFA10201012

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F10iLFA10201012

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02G40iLFA10201012

47314TUBE, FRONT BRAKE, NO.4

main47314-77010iLFA10..LHD201012

main47314-77020iLFA10..RHD201012

47315TUBE, FRONT BRAKE, NO.5

main47315-77010iLFA10..LHD201012

main47315-77020iLFA10..RHD201012

47316TUBE, FRONT BRAKE, NO.6

main47311-77010iLFA10201012

47317TUBE, FRONT BRAKE, NO.7

main47311-77020iLFA10201012

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iLFA10201012

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iLFA10201012

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02G41iLFA10201012

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02G42iLFA10201012

47324TUBE, REAR BRAKE, NO.4

main47324-77010iLFA10201012

47325TUBE, REAR BRAKE, NO.5

main47325-77010iLFA10201012

47371ACLAMP, BRAKE TUBE, NO.1

main90469-07019iLFA10201012

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D26iLFA10201012

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D60iLFA10201012

47371DCLAMP, BRAKE TUBE, NO.8

main90461-10850iLFA10201012

47372CLAMP, BRAKE TUBE, NO.2

main90949-01C85iLFA10201012

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01C82iLFA10201012

47375CLAMP, BRAKE TUBE, NO.5

main90949-01C95iLFA10201012

7801

9046808040

main90468-08040

91551A0616

main91551-A0616

91551A0618

main91551-A0618

9415180600

main94151-80600

31 parts on this diagram · 3 diagrams in section
