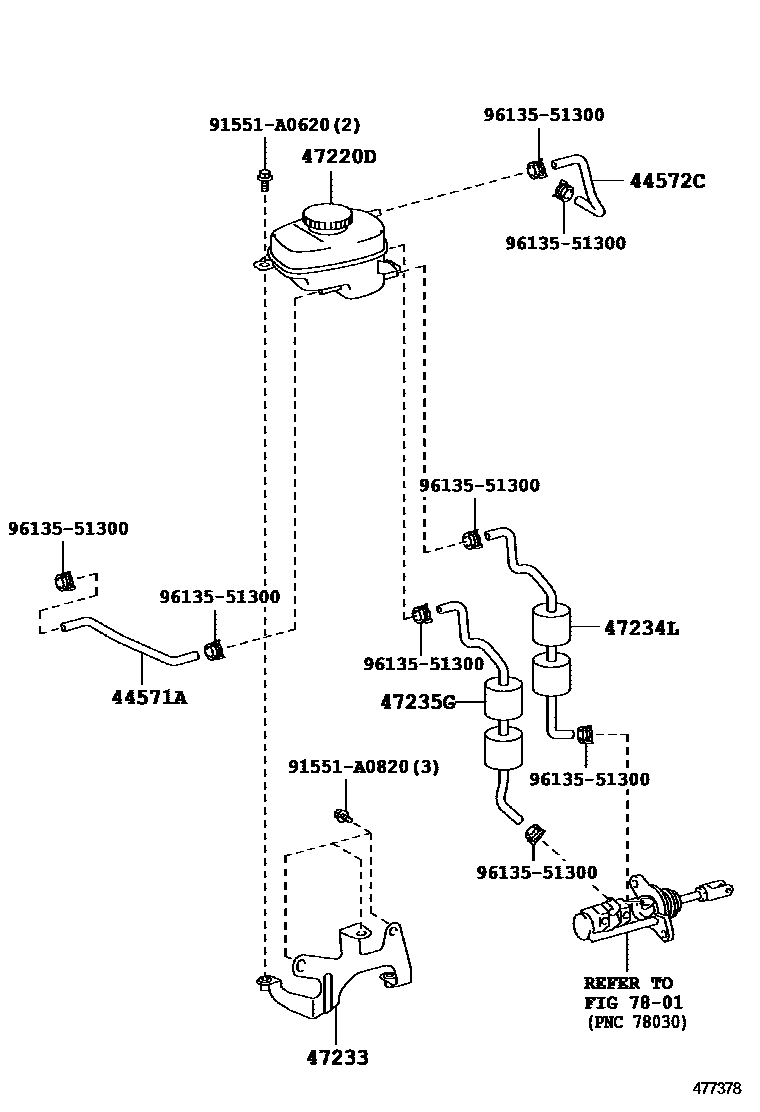

BRAKE MASTER CYLINDER

0001 1 0002 1

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-77010iLFA10201012

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-77010iLFA10201012

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-77010iLFA10201012

47233BRACKET, RESERVOIR

main47233-77010iLFA10201012

47234LHOSE, RESERVOIR, NO.1

main47234-77010iLFA10..LHD201012

main47234-77030iLFA10..RHD201012

47235GHOSE, RESERVOIR, NO.2

main47235-77010iLFA10..LHD201012

main47235-77030iLFA10..RHD201012

7801

91551A0620

main91551-A0620

91551A0820

main91551-A0820

9613551300

main96135-51300

10 parts on this diagram · 2 diagrams in section
