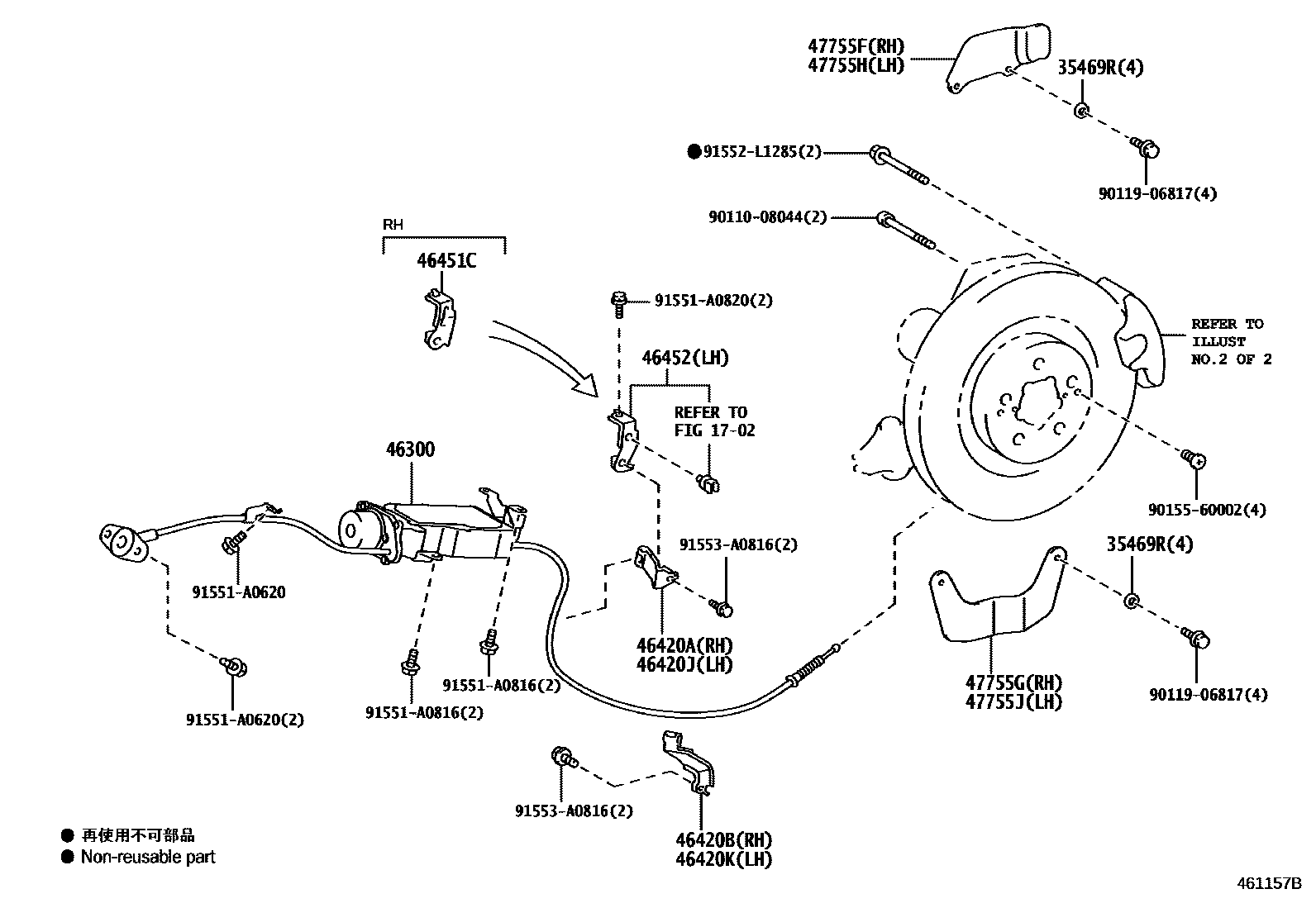

PARKING BRAKE & CABLE

0001 1 0002 1

1702

35469RSPACER

main35469-77020iLFA10201012

46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET

main46300-77010iLFA10201012

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-77010iLFA10201012

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46421-77020iLFA10201012

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46431-77010iLFA10201012

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46431-77020iLFA10201012

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-77010iLFA10201012

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-77020iLFA10201012

47755FINSULATOR, DISC BRAKE HEAT, NO.1

main47755-77070iLFA10201012

47755GINSULATOR, DISC BRAKE HEAT, NO.2

main47755-77080iLFA10201012

47755HINSULATOR, DISC BRAKE HEAT, NO.3

main47755-77090iLFA10201012

47755JINSULATOR, DISC BRAKE HEAT, NO.4

main47755-77100iLFA10201012

9011008044

main90110-08044

9011906817

main90119-06817

9015560002

main90155-60002

91551A0620

main91551-A0620

91551A0816

main91551-A0816

91551A0820

main91551-A0820

91552L1285

main91552-L1285

91553A0816

main91553-A0816

21 parts on this diagram · 2 diagrams in section
