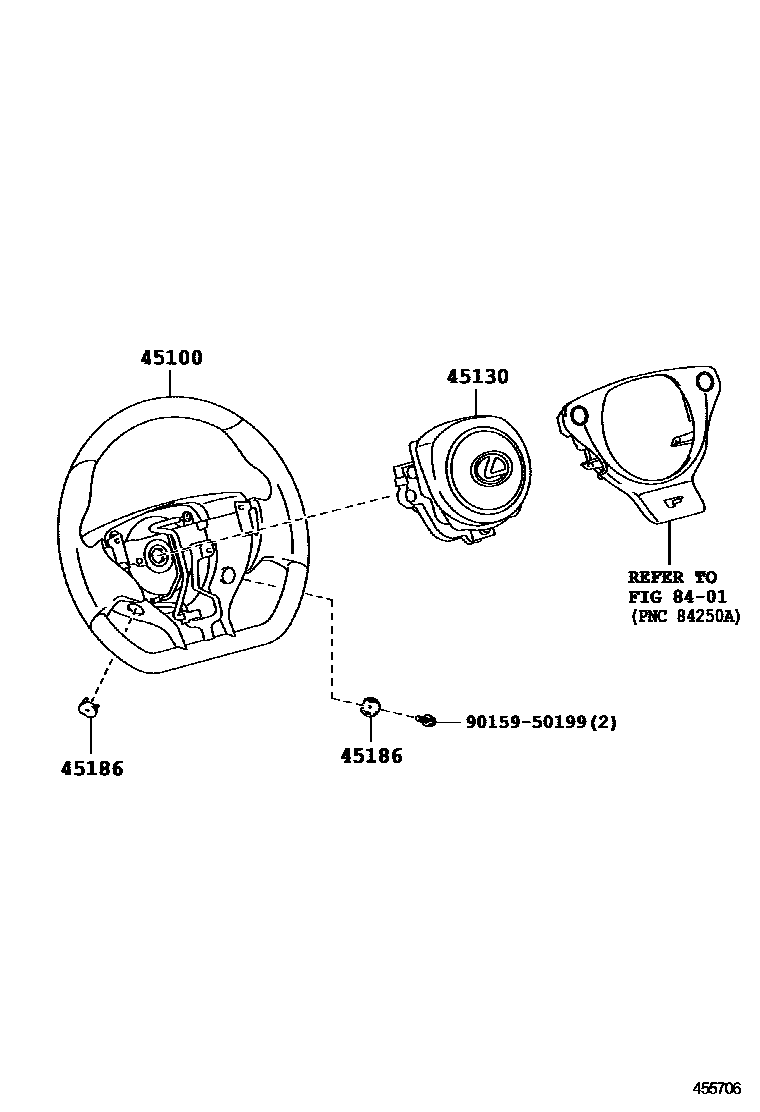

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-77010-A0iLFA10201012-201212

3-SP,CARBON&LEATHER,BLACK & WHITE,TRIM20

main45100-77010-A1iLFA10201012-201212

3-SP,CARBON&LEATHER,BLACK & CREAM,TRIM20

main45100-77010-B0iLFA10201012-201212

3-SP,CARBON&LEATHER,BLACK & SILVER,TRIM20

main45100-77010-C0iLFA10201012-201212

3-SP,CARBON&LEATHER,BLACK & BLACK,TRIM20

main45100-77010-D1iLFA10201012-201212

3-SP,CARBON&LEATHER,BLACK & RED,TRIM20

main45100-77010-D2iLFA10201012-201212

3-SP,CARBON&LEATHER,BLACK & BORDEAUX,TRIM20

main45100-77010-E0iLFA10201012-201212

3-SP,CARBON&LEATHER,BLACK & SADDLE TAN,TRIM20

main45100-77010-E1iLFA10201012-201212

3-SP,CARBON&LEATHER,BLACK & BLACKISH .BROWN,TRIM20

main45100-77010-E2iLFA10201012-201212

3-SP,CARBON&LEATHER,BLACK & ORANGE,TRIM20

main45100-77010-F0iLFA10201012-201212

3-SP,CARBON&LEATHER,BLACK & CAMEL YELLOW,TRIM20

main45100-77010-J1iLFA10201012-201212

3-SP,CARBON&LEATHER,BLACK & BLUE,TRIM20

main45100-77010-K0iLFA10201012-201212

3-SP,CARBON&LEATHER,BLACK & VIOLET,TRIM20

45130BUTTON ASSY, HORN

main45130-77010-C0iLFA10201012-201112

BLACK,TRIM2#

sub45130-77030

main45130-77030-C0iLFA10201112-201212

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-77010-C0iLFA10201012-201212

BLACK,TRIM2#

8401

9015950199

main90159-50199

5 parts on this diagram · 1 diagram in section
