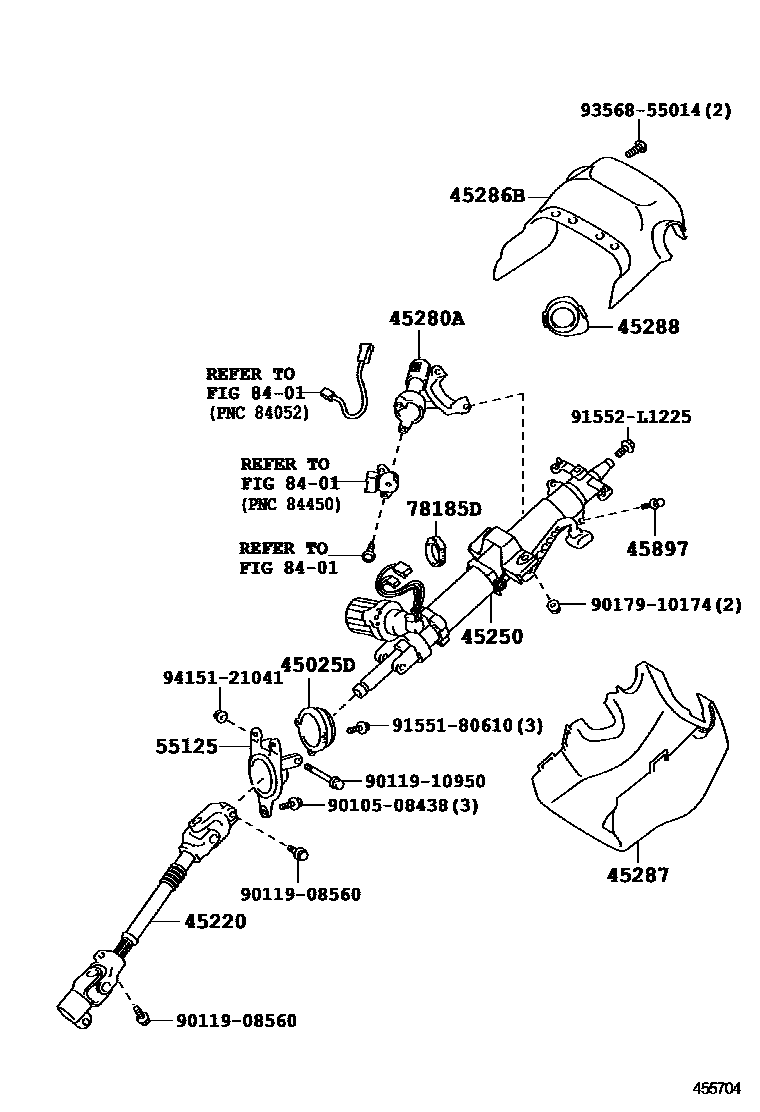

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-77010iLFA10201012

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-77010iLFA10..LHD201012

main45220-77020iLFA10..RHD201012

45250COLUMN ASSY, STEERING

main45250-77030iLFA10..LHD201012

main45250-77040iLFA10..RHD201012

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-77010iLFA10201012

45286BCOVER, STEERING COLUMN, UPR

main45286-77010-C0iLFA10201012-201212

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45287-77010-C0iLFA10201012-201212

BLACK,TRIM2#

45288PLATE, STEERING COLUMN COVER

main45288-77010iLFA10201012

45897BOLT, STEERING LOCK SET

main45897-12020iLFA10201012

55125BRACKET, STEERING SUPPORT

main55125-77010iLFA10201012

78185DCLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-20080iLFA10..RHD201012

8401

9010508438

main90105-08438

9011908560

main90119-08560

9011910950

main90119-10950

9017910174

main90179-10174

9155180610

main91551-80610

91552L1225

main91552-L1225

9356855014

main93568-55014

9415121041

main94151-21041

19 parts on this diagram · 2 diagrams in section
