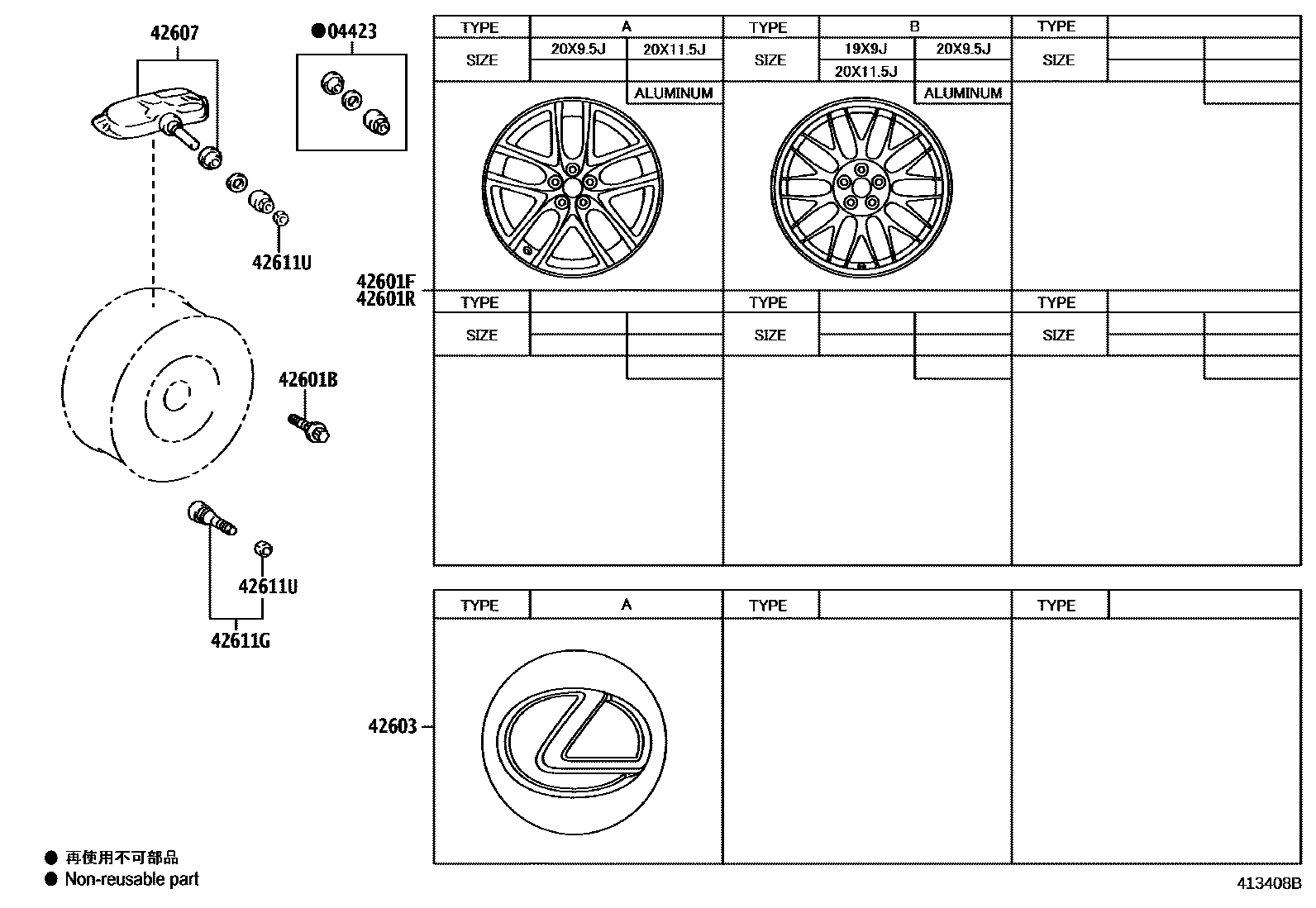

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iLFA10201012

sub04423-33060

42601BBOLT, HUB (FOR AXLE)

main90942-02084iLFA10201012

42601FWHEEL, DISC (FOR FRONT)

main4261A-77010iLFA10201012-201212

20X9.5J,#,TYPE A:REFER ILLUST.

42601RWHEEL, DISC (FOR REAR)

main4261A-77030iLFA10201012-201212

20X11.5J,#,TYPE A:REFER ILLUST.

sub4261A-77031

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-53110iLFA10201012

*ALU

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-50011iLFA10201012-201212

sub42607-50012

42611GVALVE (FOR TUBELESS TIRE)

42611UCAP, TIRE VALVE

main90942-05037iLFA10201012-201212

8 parts on this diagram · 2 diagrams in section
