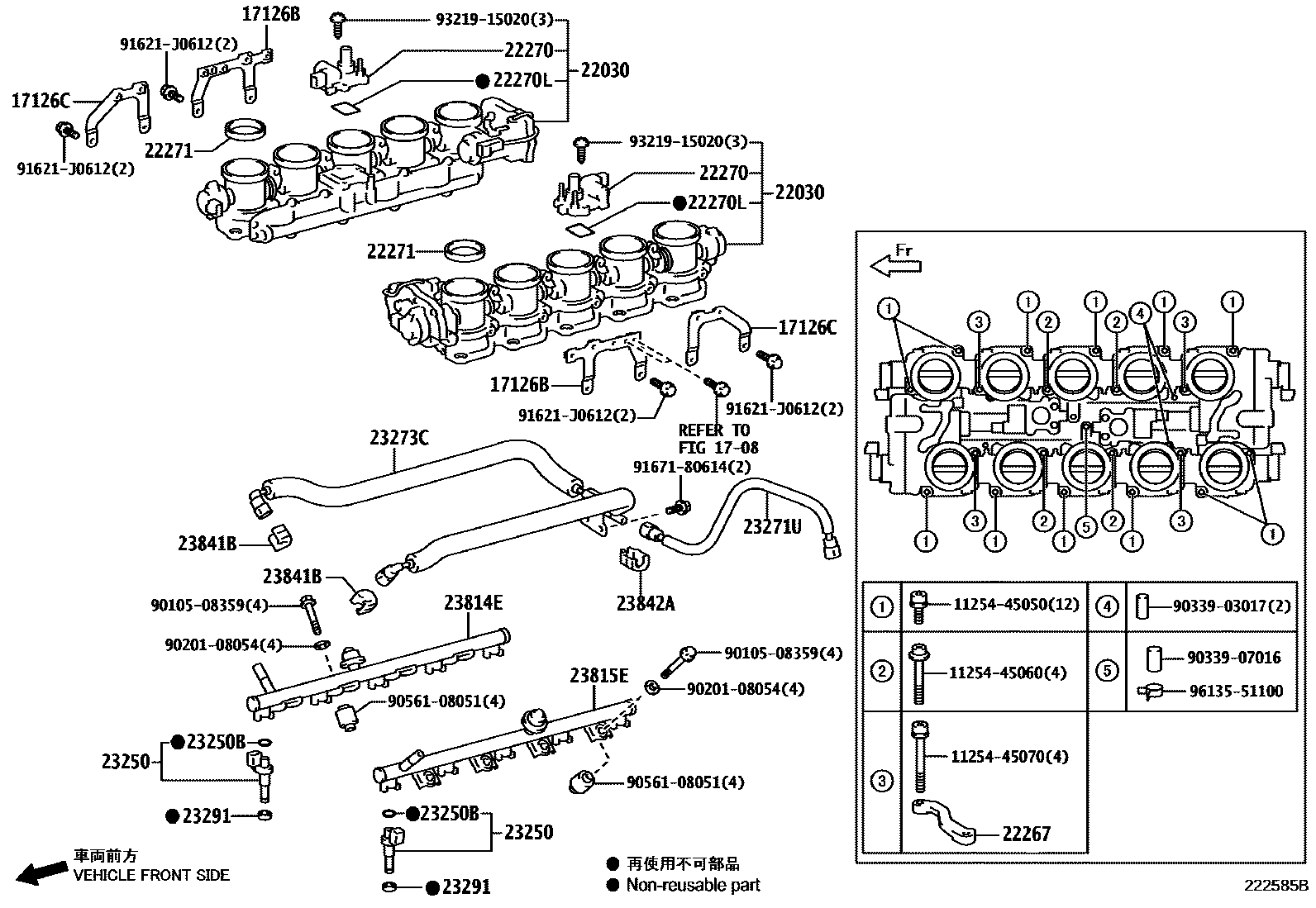

FUEL INJECTION SYSTEM

1708

17126BSTAY, SURGE TANK, NO.2

main17126-45020i1LRGUE..LFA10201012

17126CSTAY, SURGE TANK, NO.3

main17126-45010i1LRGUE..LFA10201012

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-45010i1LRGUE..LFA10201012

22267BRACKET, THROTTLE BODY

main22267-45010i1LRGUE..LFA10201012

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-88580i1LRGUE..LFA10201012

22270LGASKET, IDLE SPEED CONTROL VALVE(FOR THLOTTLE BODY)

main90079-50004i1LRGUE..LFA10201012

22271GASKET, THROTTLE BODY

main22271-45010i1LRGUE..LFA10201012

23250INJECTOR ASSY, FUEL

main23209-45020i1LRGUE..LFA10201012

23250BRING, O(FOR FUEL INJECTOR)

main90301-06017i1LRGUE..LFA10201012

23271UHOSE, FUEL, NO.1

main23271-45030i1LRGUE..LFA10201012

23273CHOSE, FUEL, NO.2

main23273-45010i1LRGUE..LFA10201012

23291INSULATOR, INJECTOR VIBRATION

main23291-28020i1LRGUE..LFA10201012

23814EPIPE, FUEL DELIVERY, RH

main23814-45010i1LRGUE..LFA10201012

23815EPIPE, FUEL DELIVERY, LH

main23815-45010i1LRGUE..LFA10201012

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-45010i1LRGUE..LFA10201012

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-45010i1LRGUE..LFA10201012

1125445050BRACKET, V-BANK COVER, NO.1

main11254-45050

1125445060BRACKET, V-BANK COVER, NO.1

main11254-45060

1125445070BRACKET, V-BANK COVER, NO.1

main11254-45070

9010508359

main90105-08359

9020108054

main90201-08054

9033903017

main90339-03017

9033907016

main90339-07016

9056108051

main90561-08051

91621J0612

main91621-J0612

9167180614

main91671-80614

9321915020

main93219-15020

9613551100

main96135-51100

29 parts on this diagram · 1 diagram in section
