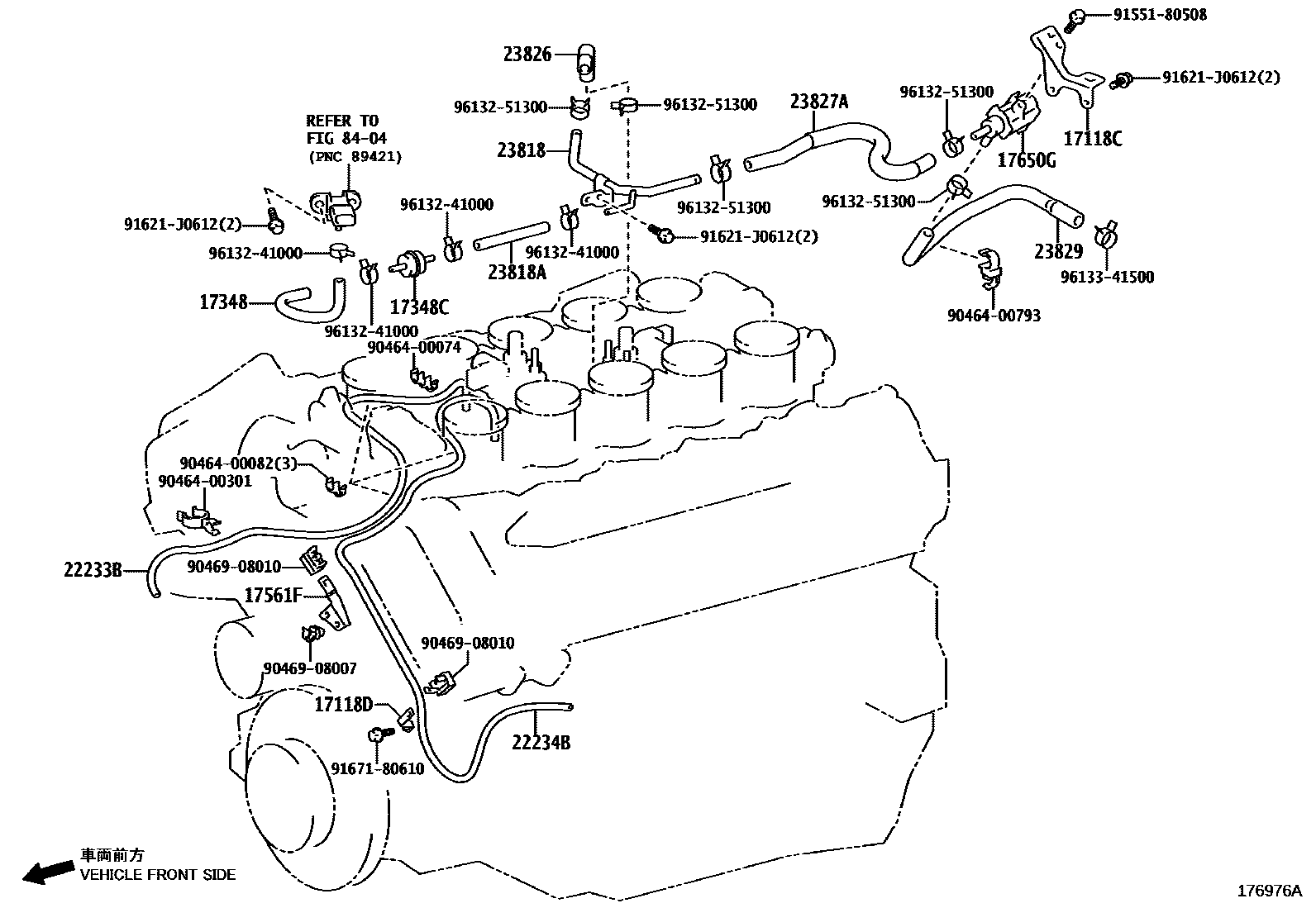

VACUUM PIPING

17118CSTAY, MANIFOLD, NO.1

main17118-45020i1LRGUE..LFA10¥3,870201012

17118DSTAY, MANIFOLD, NO.2

main17118-45030i1LRGUE..LFA10¥1,170201012

17348HOSE, AIR, NO.8

main17348-45010i1LRGUE..LFA10¥2,390201012

17348CFILTER, GAS

main90917-11035i1LRGUE..LFA10¥1,950201012

17561FSTAY, CLAMP

main17561-45030i1LRGUE..LFA10¥1,360201012

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12259i1LRGUE..LFA10201012

22233BHOSE, AUXILIARY AIR VALVE, NO.1

main22233-45010i1LRGUE..LFA10¥4,390201012

22234BHOSE, AUXILIARY AIR VALVE, NO.2

main22234-45010i1LRGUE..LFA10¥4,890201012

23818PIPE, FUEL VAPOR FEED

main23818-45020i1LRGUE..LFA10201012

23818AHOSE(FOR FUEL VAPOR FEED PIPE)

main95327-04008i1LRGUE..LFA10¥360201012

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-45010i1LRGUE..LFA10201012

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-45010i1LRGUE..LFA10201012

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-45030i1LRGUE..LFA10201012

8404

9046400074

main90464-00074¥120

9046400082

main90464-00082¥100

9046400301

main90464-00301¥90

9046400793

main90464-00793¥160

9046908007

main90469-08007¥220

9046908010

main90469-08010¥240

9155180508

main91551-80508¥60

91621J0612

main91621-J0612¥70

9167180610

main91671-80610¥60

9613241000

main96132-41000¥80

9613251300

main96132-51300¥120

9613341500

main96133-41500¥140

26 parts on this diagram · 1 diagram in section
