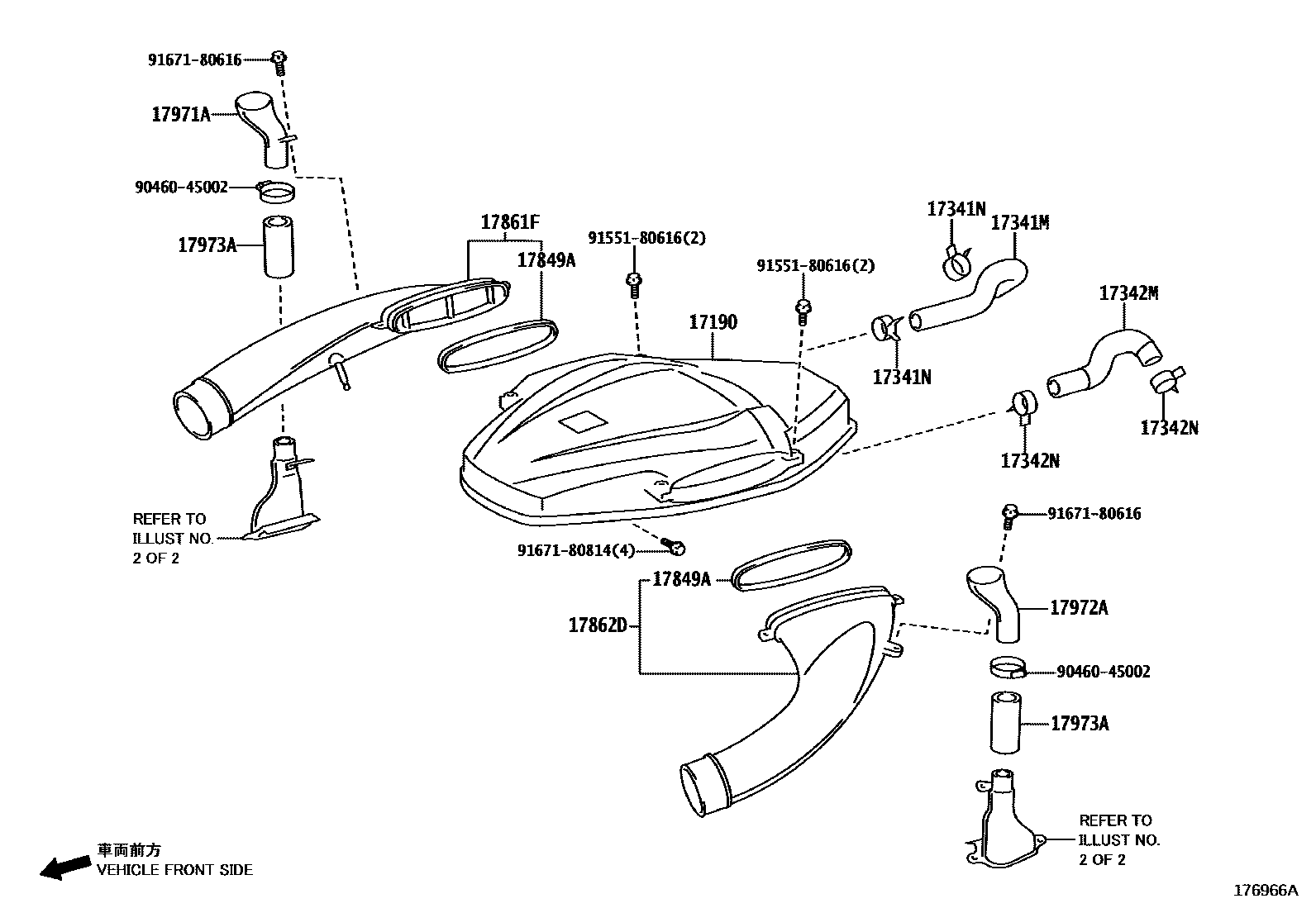

MANIFOLD
17190TANK ASSY, INTAKE AIR SURGE
17341MHOSE, AIR, NO.1
17341NCLAMP OR CLIP(FOR AIR HOSE, NO.1)
17342MHOSE, AIR, NO.2
17342NCLAMP OR CLIP(FOR AIR HOSE, NO.2)
17849AGASKET, INTAKE AIR CONNECTOR
17861FCONNECTOR, INTAKE AIR
17862DCONNECTOR, INTAKE AIR, NO.2
17971AINLET, COOL AIR, NO.1
17972AINLET, COOL AIR, NO.2
17973AINLET, COOL AIR, NO.3
9046045002
9155180616
9167180616
9167180814
15 parts on this diagram · 2 diagrams in section
