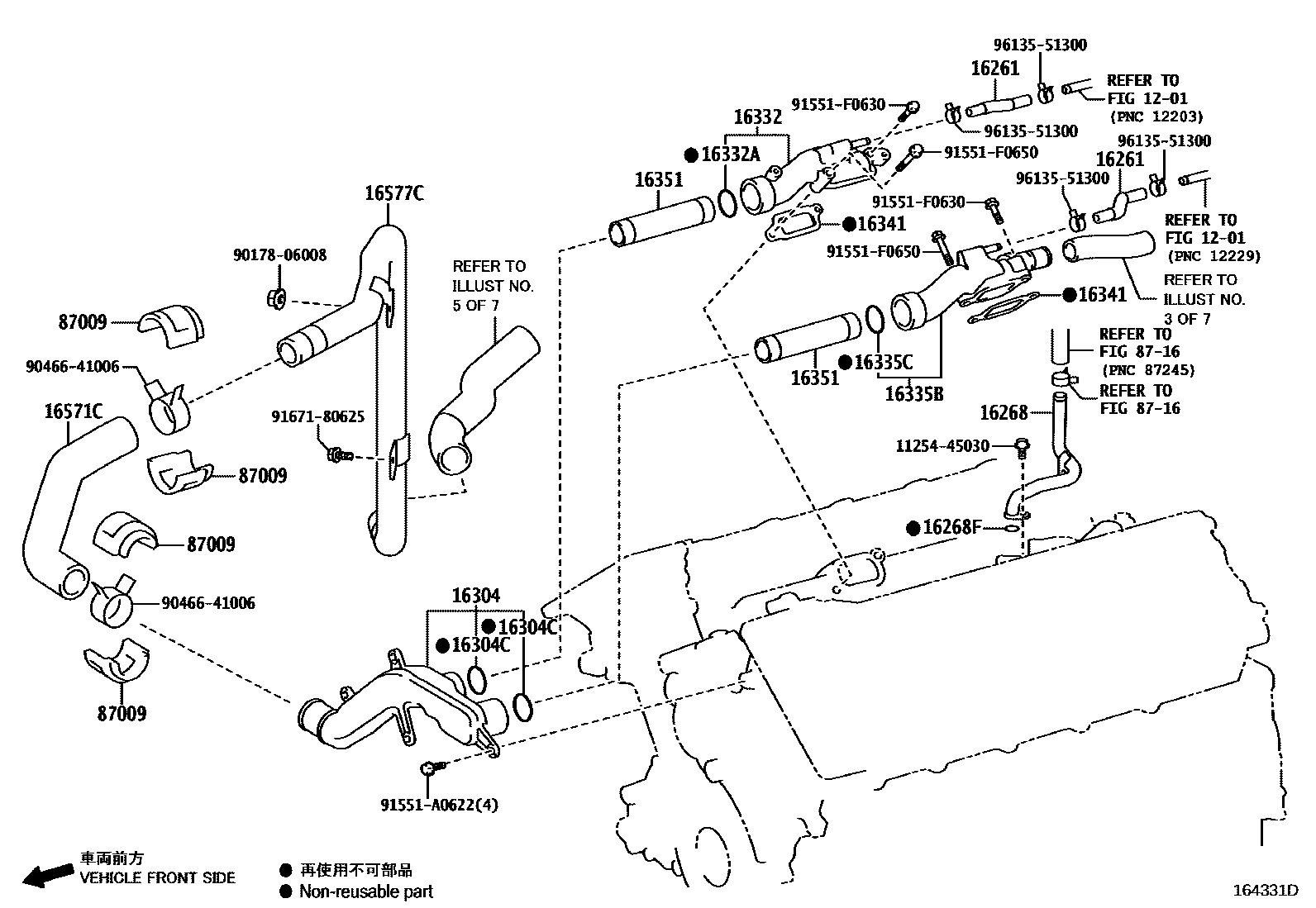

RADIATOR & WATER OUTLET

0001 1ENGINE UPPER 0002 1ENGINE SIDE 0003 1ENGINE REAR 0004 1RESERVE TANK & WATER INLET 0005 1PIPING(WATER INLET - RADIATOR0006 1RADIATOR RH 0007 1RADIATOR LH

1201

16261HOSE, WATER BY-PASS

main16261-45060i1LRGUE..LFA10201012

16268PIPE, WATER BY-PASS, NO.1

main16268-45030i1LRGUE..LFA10201012

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24017i1LRGUE..LFA10201012

16304OUTLET SUB-ASSY, WATER

main16304-45010i1LRGUE..LFA10201012

16304CRING, O(FOR WATER OUTLET)

main96761-35028i1LRGUE..LFA10201012

16332PIPE, WATER OUTLET, NO.1

main16332-45010i1LRGUE..LFA10201012

16332ARING, O(FOR WATER OUTLET PIPE)

main96761-35028i1LRGUE..LFA10201012

16335BPIPE, WATER OUTLET, NO.2

main16335-45010i1LRGUE..LFA10201012

16335CRING, O(FOR WATER OUTLET PIPE)

main96761-35028i1LRGUE..LFA10201012

16341GASKET, WATER OUTLET

main16341-45010i1LRGUE..LFA10201012

16351OUTLET, WATER BY-PASS

main16351-45030i1LRGUE..LFA10201012

16571CHOSE, RADIATOR, NO.1

main16571-45010i1LRGUE..LFA10201012

16577CPIPE, RADIATOR

main16577-45010i1LRGUE..LFA10201012

87009HOSE SET, WATER, NO.1

main87009-77010iLFA10201012

8716

1125445030BRACKET, V-BANK COVER, NO.1

main11254-45030

9017806008

main90178-06008

9046641006

main90466-41006

91551A0622

main91551-A0622

91551F0630

main91551-F0630

91551F0650

main91551-F0650

9167180625

main91671-80625

9613551300

main96135-51300

24 parts on this diagram · 7 diagrams in section
