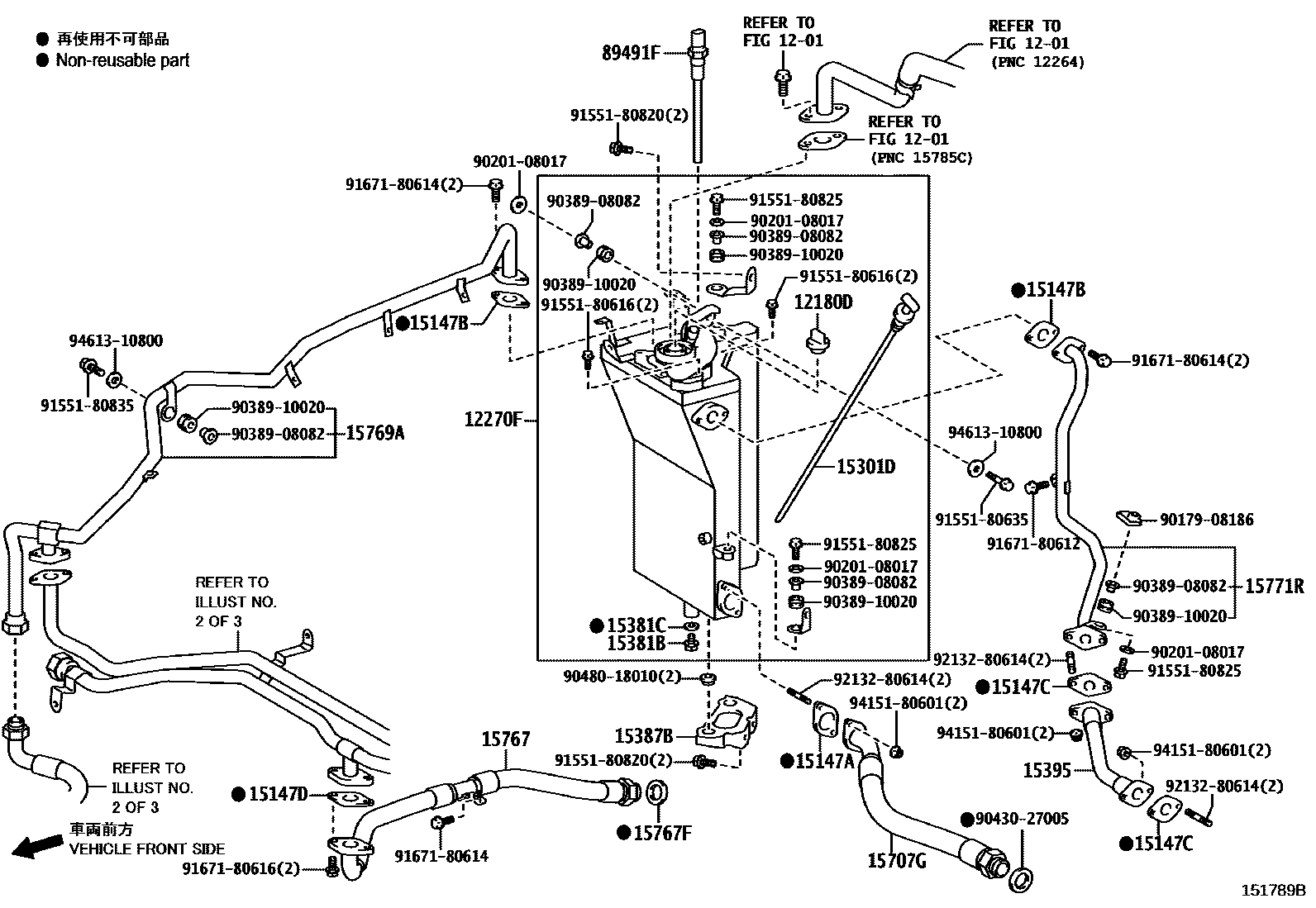

ENGINE OIL COOLER
1201
12180DCAP ASSY, OIL FILLER
12270FSEPARATOR ASSY, OIL
15147AGASKET, OIL STRAINER
15147BGASKET, OIL STRAINER NO.2
15147CGASKET, OIL STRAINER NO.3
15147DGASKET, OIL STRAINER
15301DGAGE SUB-ASSY, OIL LEVEL
15381BPLUG(FOR OIL TANK DRAIN)
15381CGASKET(FOR OIL TANK DRAIN PLUG)
15387BBRACKET, OIL TANK
15395HOSE, OIL TANK
15707GPIPE SUB-ASSY, OIL
15767PIPE, OIL COOLER
15767FGASKET(FOR OIL COOLER PIPE)
15769APIPE, OIL COOLER, NO.2
15771PIPE, OIL, NO.1
15771RPIPE, OIL, NO.1
89491FSENSOR, ENGINE OIL LEVEL
9017908186
main90179-08186
9020108017
main90201-08017
9038908082
main90389-08082
9038910020
main90389-10020
9043027005
main90430-27005
9048018010
main90480-18010
9155180616
main91551-80616
9155180635
main91551-80635
9155180820
main91551-80820
9155180825
main91551-80825
9155180835
main91551-80835
9167180612
main91671-80612
9167180614
main91671-80614
9167180616
main91671-80616
9213280614
main92132-80614
9415180601
main94151-80601
9461310800
main94613-10800
36 parts on this diagram · 3 diagrams in section
