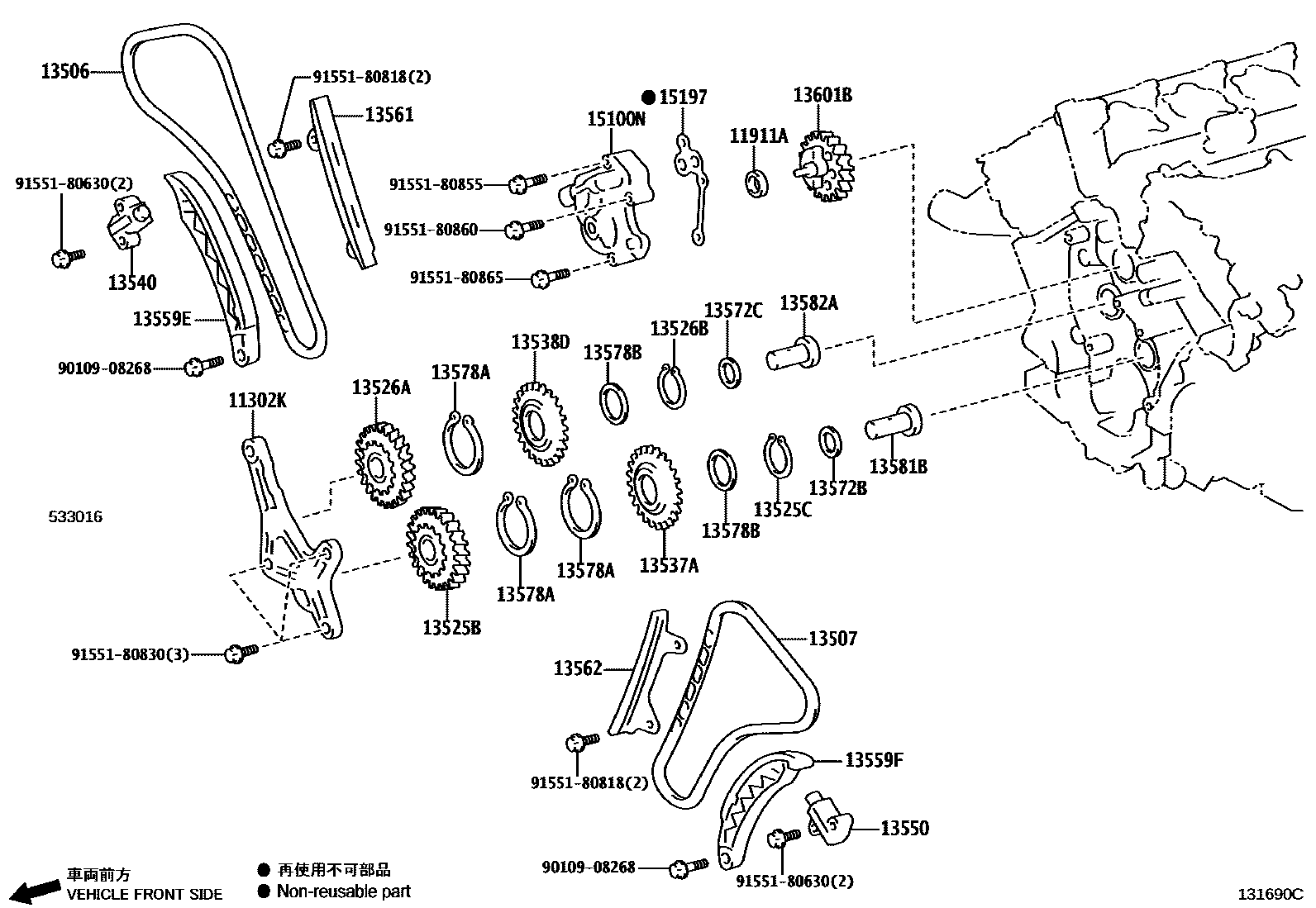

CAMSHAFT & VALVE
11302KCOVER SUB-ASSY, TIMING GEAR
11911ABEARING, BALANCESHAFT, NO.1
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13525BGEAR, IDLE, NO.1
13525CRING, SNAP(FOR IDLE GEAR NO.1)
13526AGEAR, IDLE, NO.2
13526BRING, SNAP(FOR IDLE GEAR NO.2)
13537AGEAR, IDLE SUB, NO.1
13538DGEAR, IDLE SUB, NO.2
13540TENSIONER ASSY, CHAIN, NO.1
13550TENSIONER ASSY, CHAIN, NO.2
13559ESLIPPER, CHAIN TENSIONER, RH
13559FSLIPPER, CHAIN TENSIONER, LH
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13572BPLATE, IDLE GEAR THRUST, NO.1
13572CPLATE, IDLE GEAR THRUST, NO.2
13578ASPRING, IDLE GEAR, NO.1
13578BSPRING, IDLE GEAR, NO.2
13581BSHAFT, IDLE GEAR, NO.1
13582ASHAFT, IDLE GEAR, NO.2
13601BBALANCESHAFT SUB-ASSY, NO.1
15100NPUMP ASSY, OIL
15197GASKET, OIL PUMP
9010908268
main90109-08268
9155180630
main91551-80630
9155180818
main91551-80818
9155180830
main91551-80830
9155180855
main91551-80855
9155180860
main91551-80860
9155180865
main91551-80865
32 parts on this diagram · 2 diagrams in section
