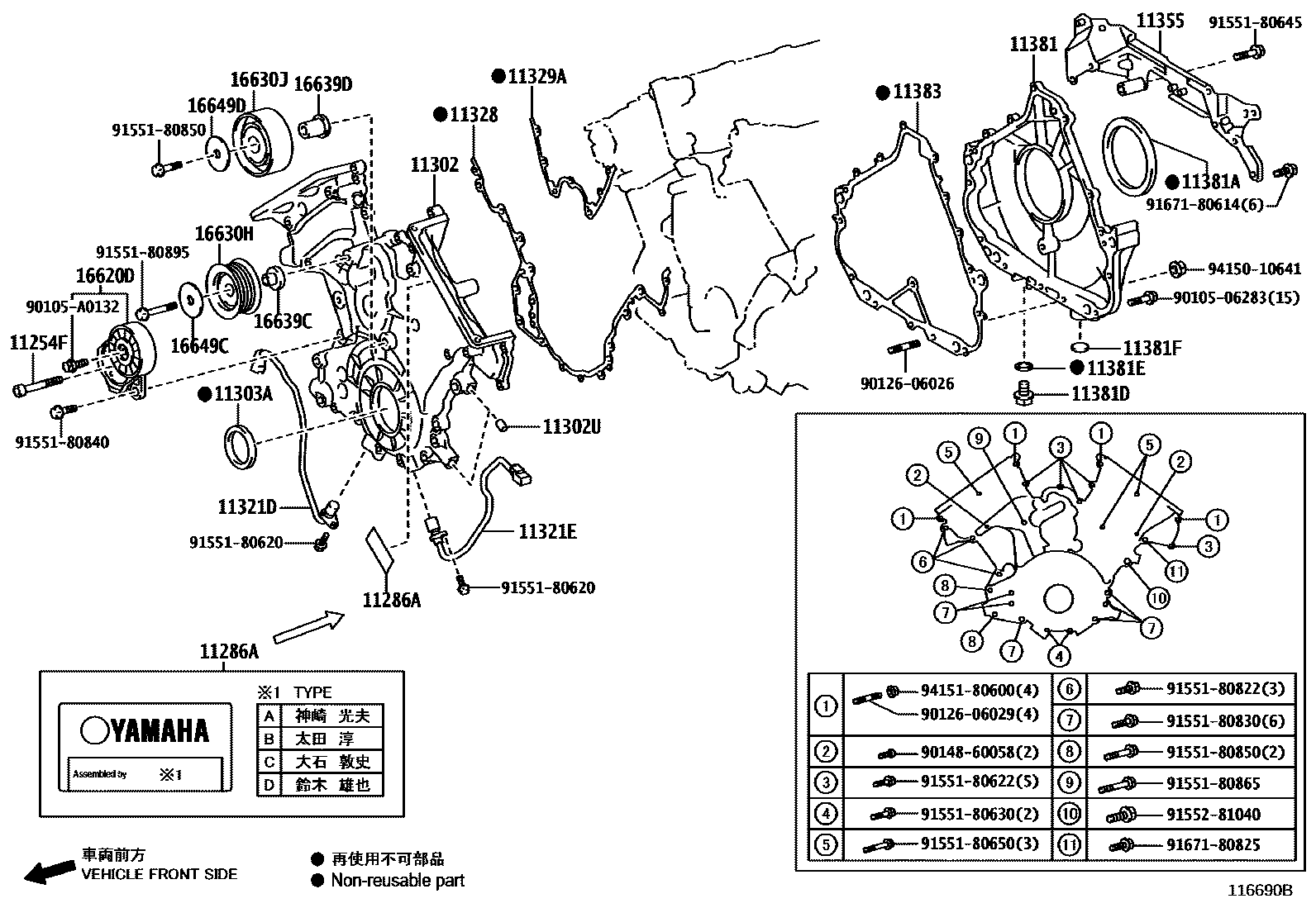

TIMING GEAR COVER & REAR END PLATE

11254FBOLT, V-BANK COVER

main11254-45170i1LRGUE..LFA10¥760201012

11286APLATE, ENGINE SPECIFICATION

main11286-45020i1LRGUE..LFA10¥3,740201012

TYPE A

main11286-45030i1LRGUE..LFA10¥3,740201012

TYPE B

main11286-45040i1LRGUE..LFA10¥3,740201012

TYPE C

main11286-45050i1LRGUE..LFA10¥3,740201012

TYPE D

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-45020i1LRGUE..LFA10¥79,300201012

11302UPIN, RING

main90253-11006i1LRGUE..LFA10¥60201012

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main11551-45010i1LRGUE..LFA10¥3,610201012

11321DSENSOR, CRANK POSITION, NO.1

main90919-05077i1LRGUE..LFA10¥6,700201012

11321ESENSOR, CRANK POSITION, NO.2

main90919-05076i1LRGUE..LFA10¥6,700201012

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-45010i1LRGUE..LFA10¥10,800201012

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-45010i1LRGUE..LFA10¥5,700201012

11355PLATE, REAR END

main11355-45010i1LRGUE..LFA10¥18,200201012

11381RETAINER, ENGINE REAR OIL SEAL

main11381-45010i1LRGUE..LFA10¥81,700201012

11381ASEAL, ENGINE REAR OIL

main11551-45020i1LRGUE..LFA10¥7,100201012

11381DPLUG, STRAIGHT SCREW(FOR OIL SEAL RETAINER)

main90341-12012i1LRGUE..LFA10¥160201012

11381EGASKET(FOR OIL SEAL RETAINER STRAIGHT SCREW PLUG)

main90430-12031i1LRGUE..LFA10¥90201012

11381FTIGHT PLUG(FOR OIL SEAL RETAINER)

main96411-61800i1LRGUE..LFA10¥120201012

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-45010i1LRGUE..LFA10¥7,400201012

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-0W150i1LRGUE..LFA10¥90,000201012

16630HPULLEY ASSY, IDLER

main16630-45010i1LRGUE..LFA10¥39,800201012

16630JPULLEY ASSY, IDLER, NO.2

main16630-45020i1LRGUE..LFA10¥24,000201012

16639CSPACER, IDLER PULLEY NO.1

main16639-45010i1LRGUE..LFA10¥1,870201012

16639DSPACER, IDLER PULLEY NO.2

main16639-45020i1LRGUE..LFA10¥4,260201012

16649CPLATE, IDLER PULLEY COVER

main16649-45010i1LRGUE..LFA10¥1,170201012

16649DPLATE, IDLER PULLEY COVER, NO.2

main16649-45010i1LRGUE..LFA10¥1,170201012

9010506283

main90105-06283¥130

90105A0132

main90105-A0132¥100

9012606026

main90126-06026¥60

9012606029

main90126-06029¥60

9014860058

main90148-60058¥90

9155180620

main91551-80620¥60

9155180622

main91551-80622¥60

9155180630

main91551-80630¥60

9155180645

main91551-80645¥130

9155180650

main91551-80650¥80

9155180822

main91551-80822¥80

9155180830

main91551-80830¥80

9155180840

main91551-80840¥120

9155180850

main91551-80850¥100

9155180865

main91551-80865¥100

9155180895

main91551-80895¥120

9155281040

main91552-81040¥120

9167180614

main91671-80614¥60

9167180825

main91671-80825¥80

9415010641

main94150-10641¥60

9415180600

main94151-80600¥60

44 parts on this diagram · 1 diagram in section
