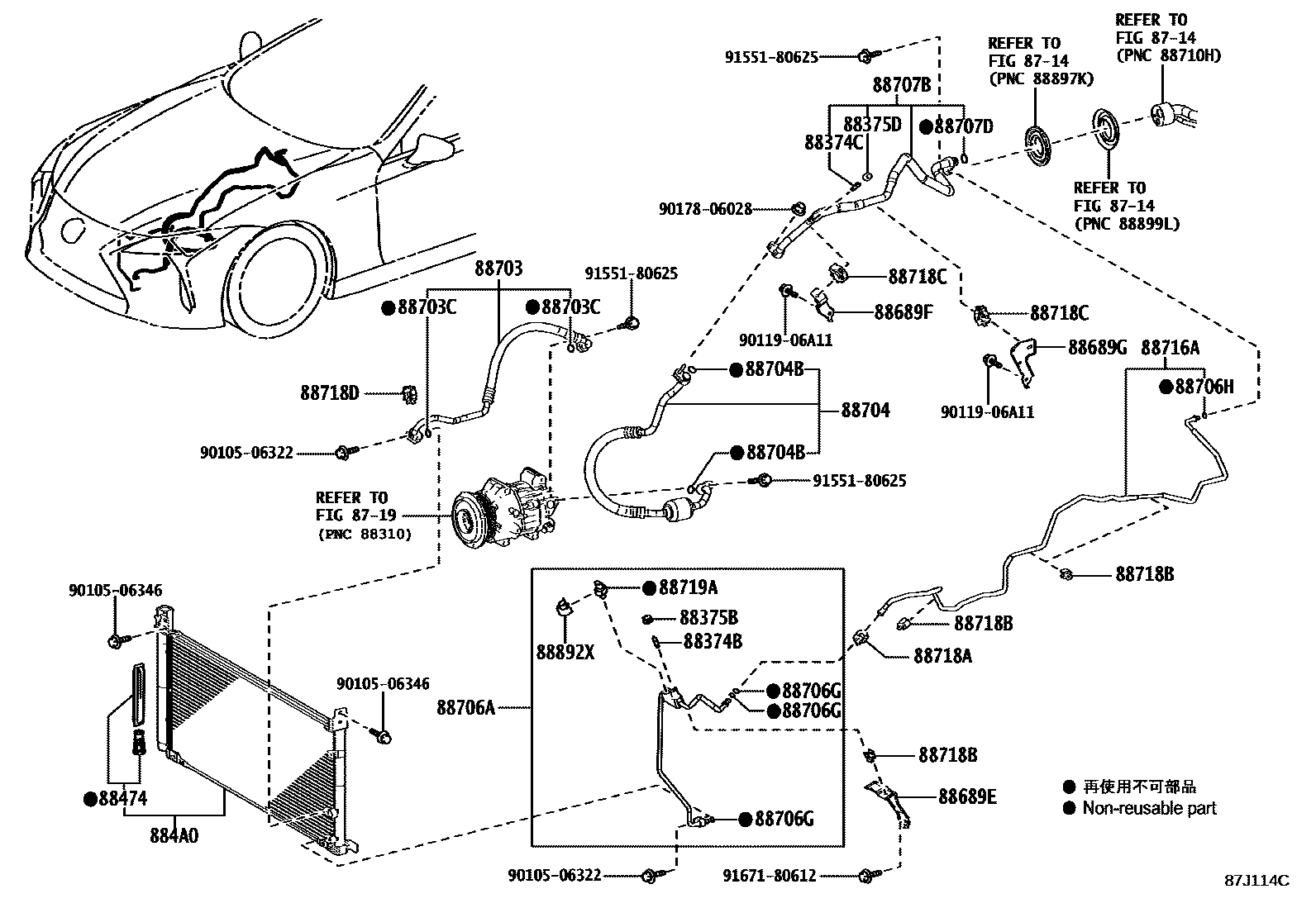

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
AZERBAIJAN SPEC
UKRAINE SPEC
88375DCAP, SERVICE VALVE, NO.2
AZERBAIJAN SPEC
UKRAINE SPEC
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
AZERBAIJAN SPEC
UKRAINE SPEC
88689EBRACKET, COOLER, NO.1
88689FBRACKET, COOLER, NO.2
88689GBRACKET, COOLER, NO.3
88703HOSE SUB-ASSY, DISCHARGE
sub88703-11031
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88706GRING, O(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88706HRING, O, NO.2(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88707BTUBE SUB-ASSY, SUCTION, B
AZERBAIJAN SPEC
UKRAINE SPEC
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88716APIPE, COOLER REFRIGERANT LIQUID, A
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718DCLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)
88719ASENSOR, AIR CONDITIONER PRESSURE
88892XCOVER, COOLER, NO.2
9010506322
9010506346
main90105-06346
9011906A11
9017806028
9155180625
9167180612
33 parts on this diagram · 2 diagrams in section
