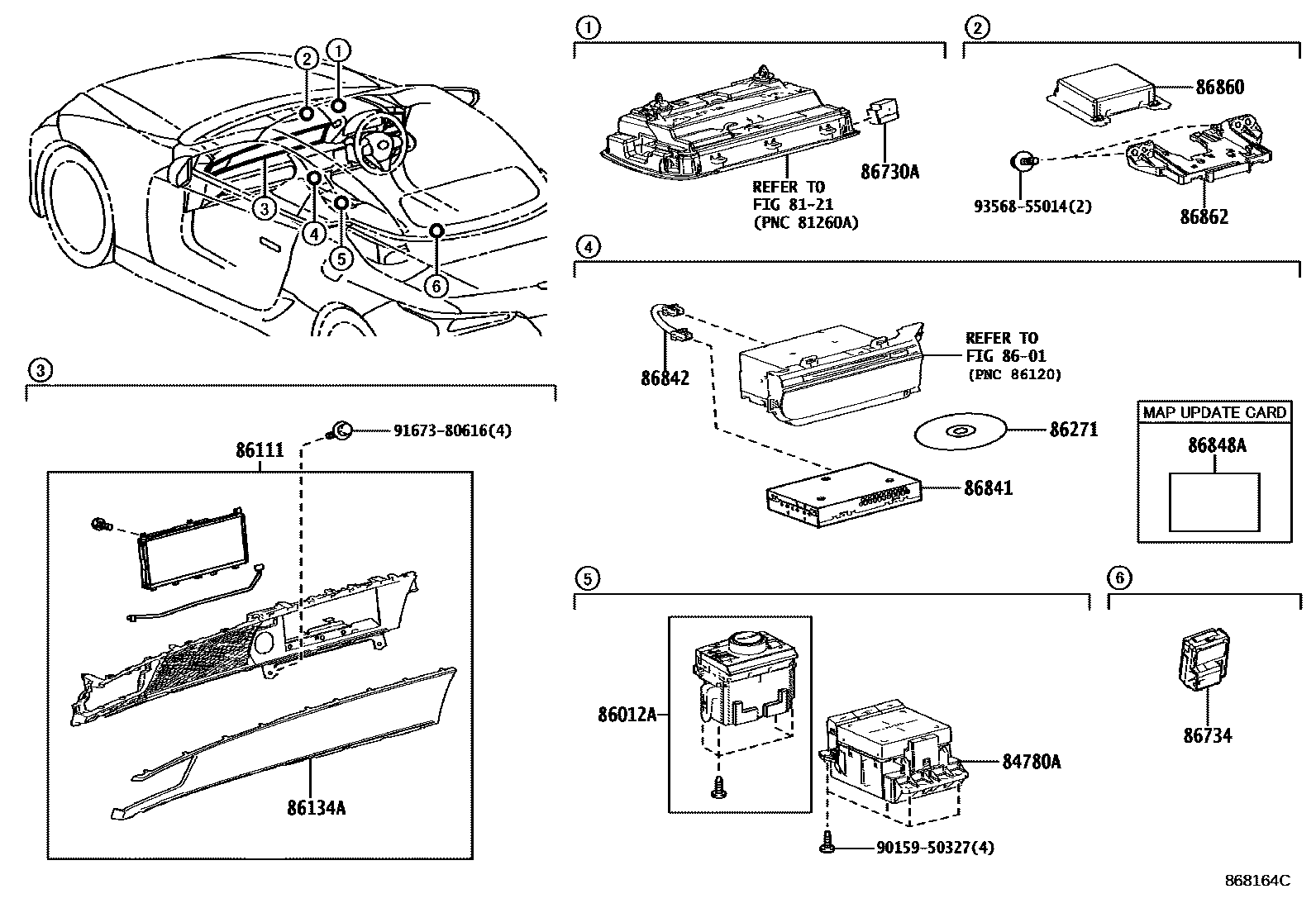

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1

8121

84780ACONTROLLER ASSY, REMOTE OPERATION

main84780-11011iURZ100¥27,300202007-202111

main84780-11170iURZ100¥27,300202111

8601

86012APARTS SET, RADIO SETTING

main86011-11030iURZ100202007

86111MULTI-DISPLAY

main86111-11010iURZ100..RHD¥190,000202007

DENSO

main86111-11022iURZ100..LHD202007

DENSO

86134APARTS, MULTI-DISPLAY

main86134-11010iURZ100..LHD202007

main86134-11020iURZ100..RHD¥53,900202007

86271DISC, DISC PLAYER

main86807-11022iURZ100..GEN202007-202008

MIDDLE & SOUTH AMERICA SPEC

sub86807-11023

main86807-11022iURZ100..GEN202007-202008

GUATEMALA SPEC

sub86807-11023

main86807-11022iURZ100..GEN202007-202008

CURACAO SPEC

sub86807-11023

main86807-11023iURZ100..GEN202009-202108

CURACAO SPEC

sub86807-11025

main86807-11023iURZ100..GEN202009-202108

MIDDLE & SOUTH AMERICA SPEC

sub86807-11025

main86807-11023iURZ100..GEN202009-202108

GUATEMALA SPEC

sub86807-11025

main86807-11024iURZ100..GEN202109-202211

MIDDLE & SOUTH AMERICA SPEC

sub86807-11025

main86807-11024iURZ100..GEN202109-202211

GUATEMALA SPEC

sub86807-11025

main86807-11025iURZ100..GEN202212

sub86807-11026

main86807-11034iURZ100..GCC202007-202106

sub86807-11035

main86807-11035iURZ100..GCC202107-202209

sub86807-11036

main86807-11036iURZ100..GCC202210

sub86807-11037

main86807-11042iURZ100..ARL202007-202009

sub86807-11043

main86807-11043iURZ100..ARL202010-202109

sub86807-11044

main86807-11044iURZ100..ARL202110-202211

main86807-11045iURZ100..ARL202212

sub86807-11046

86730AMICROPHONE ASSY, TELEPHONE

main86250-12020iURZ100¥3,750202007

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11030iURZ100¥1,860202007

86841COMPUTER, NAVIGATION

main86840-0W230iURZ100..EUR202007-202204

sub86840-0W231

main86840-0W231iURZ100..EUR202204

main86840-48192iURZ100..GCC202007-202106

sub86840-48193

main86840-48193iURZ100..GCC202107-202206

sub86840-48194

main86840-48194iURZ100..GCC202207

sub86840-48195

main86840-48221iURZ100..ARL202007-202009

sub86840-48222

main86840-48222iURZ100..ARL202010-202109

sub86840-48224

main86840-48223iURZ100..ARL202110-202208

sub86840-48224

main86840-48224iURZ100..ARL202209

sub86840-48225

main86840-48261iURZ100..GEN202007-202008

sub86840-48262

main86840-48262iURZ100..GEN202009-202108

sub86840-48263

main86840-48263iURZ100..GEN202109-202207

sub86840-48264

main86840-48264iURZ100..GEN202208

sub86840-48265

86842WIRE, NAVIGATION, NO.1

main86842-11010iURZ100¥2,370202007

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-33040iURZ100..ARL¥12,100202007

main86848-33050iURZ100..GEN202007

main86848-33060iURZ100..GCC202007

86860ANTENNA ASSY, NAVIGATION

main86860-78010iURZ100¥8,500202007

86862BRACKET, NAVIGATION ANTENNA

main86862-58020iURZ100¥940202007

9015950327

main90159-50327¥70

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

17 parts on this diagram · 4 diagrams in section
