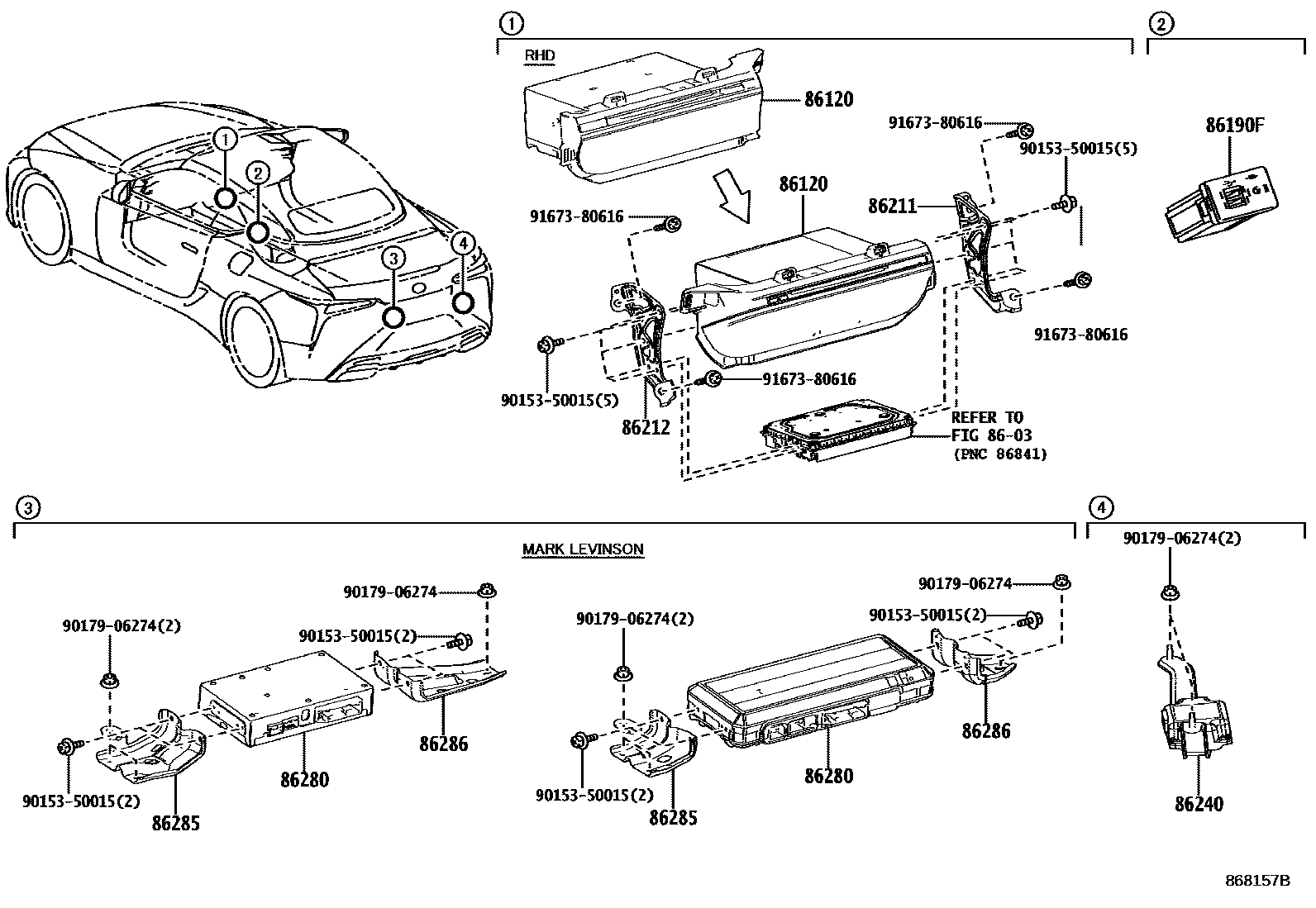

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER & AMPLIFIER 0002 1CONDENSER

8603

86120RECEIVER ASSY, RADIO

main86120-11A00iURZ100..RHD..EUR202007-202102

PANASONIC

sub86120-11A01

main86120-11A01iURZ100..RHD..EUR202103-202210

PANASONIC

main86120-11A11iURZ100..RHD..EUR202210

PANASONIC

main86120-11A20iURZ100..LHD..EUR202007-202102

PANASONIC

sub86120-11A21

main86120-11A21iURZ100..LHD..EUR202103-202210

PANASONIC

main86120-11A32iURZ100..LHD..EUR202210

PANASONIC

main86120-11A40iURZ100..ARL202007-202111

PIONEER

main86120-11A50iURZ100..ARL202111

PIONEER

main86120-11B00iURZ100..GCC202007-202111

PIONEER

main86120-11B10iURZ100..GCC202111

PIONEER

main86120-11B90iURZ100..GEN202007

PIONEER

86190FADAPTER ASSY, STEREO JACK

main86190-24030iURZ100202007

86211BRACKET, RADIO, NO.1

main86211-11010iURZ100202007

86212BRACKET, RADIO, NO.2

main86212-11010iURZ100202007

86240EQUALIZER ASSY,STEREO COMPONENT

main86240-11020iURZ100202007

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-11030iURZ100..EUR202007-202210

main86280-11030iURZ100..ARL,GCC202007-202111

AUDIO-EMV & AM/FM & DVD & 12SPEAKER

main86280-11060iURZ100..RHD..EUR202111

main86280-11070iURZ100..LHD..EUR202007

86285BRACKET, AMPLIFIER, NO.1

main86285-11010iURZ100..ARL,GCC202007-202111

AUDIO-EMV & AM/FM & DVD & 12SPEAKER

main86285-11010iURZ100..EUR202007-202210

main86285-11020iURZ100..GEN202007

86286BRACKET, AMPLIFIER, NO.2

main86286-11010iURZ100..ARL,GCC202007-202111

AUDIO-EMV & AM/FM & DVD & 12SPEAKER

main86286-11010iURZ100..EUR202007-202210

main86286-11020iURZ100..GEN202007

9015350015

main90153-50015

9017906274

main90179-06274

9167380616

main91673-80616

12 parts on this diagram · 2 diagrams in section
