WINDSHIELD WASHER
8401
8505
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319AHOSE, INLET
85319DPACKING, FRONT WASHER
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=300)
85371YHOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT), NO.2
L=1800(*H,L=305)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1000(*H,L=400)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=60)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=570)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=90)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=115)
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=140)
L=1080
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
L=1450(*H,L=230)
L=1450(*H,L=310)
85373KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9
L=1450(*H,L=70)
L=1450(*H,L=30)
85373LGROMMET, WASHER
85373MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.10
L=1450(*H,L=390)
85373NHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.11
L=1450(*H,L=50)
85373PHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.12
L=1450(*H,L=570)
85373QHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.13
L=1450(*H,L=120)
85373THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.14
L=1450(*H,L=85)
85373UHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.15
L=1450(*H,L=120)
L=1450(*H,L=1100)
85373VHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.16
L=1450(*H,L=330)
L=1450(*H,L=340)
85373ZHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.18
L=1450(*H,L=90)
L=1450(*H,L=65)
85397SWITCH ASSY,LEVEL WARNING
8271111020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-11020
827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C170
8271133770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33770
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F290
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
9011906767
main90119-06767

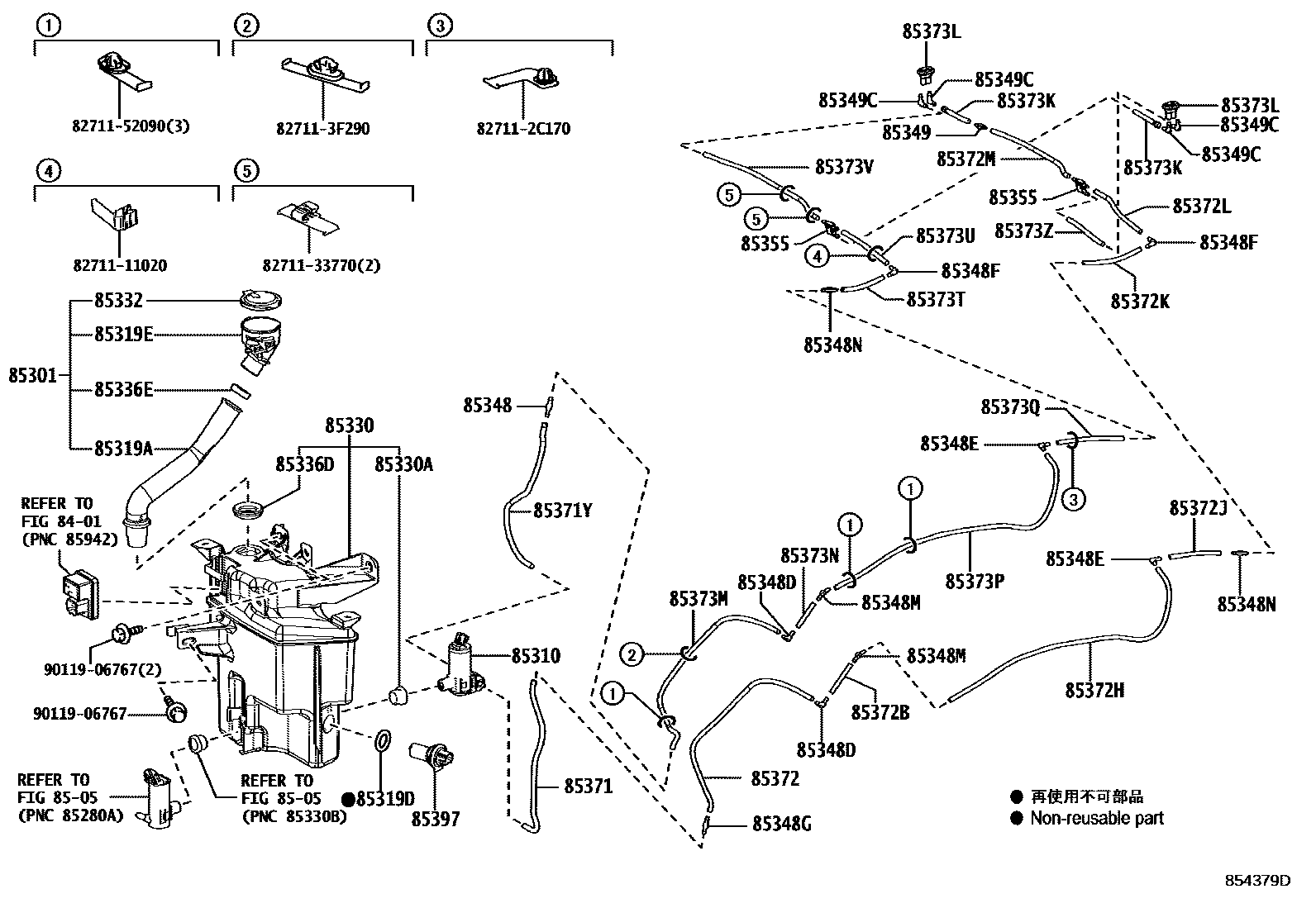

48 parts on this diagram · 2 diagrams in section
