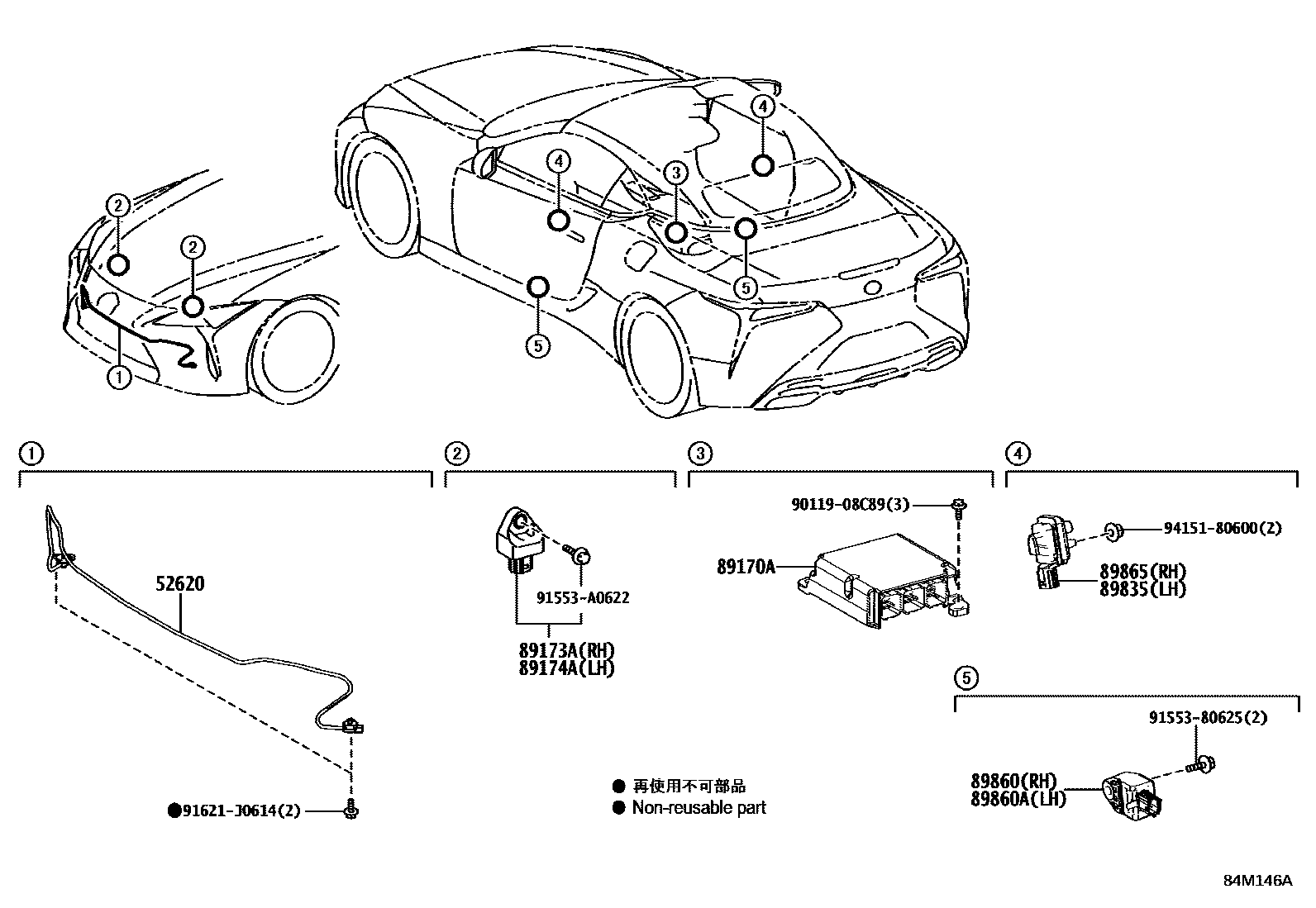

AIR BAG

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-11011iURZ100202007

89170ACOMPUTER ASSY, AIRBAG

main89170-11070iURZ100..ARL202007

main89170-11090iURZ100..GCC,GEN202007

main89170-11100iURZ100..LHD..EUR202007

main89170-11110iURZ100..RHD..EUR202007

89173ASENSOR, AIRBAG, FRONT RH

main89173-19505iURZ100202007

89174ASENSOR, AIRBAG, FRONT LH

main89173-19505iURZ100202007

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-33010iURZ100202007-202012

sub8983A-33011

main8983A-33011iURZ100202101

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-11010iURZ100202007

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-11010iURZ100202007

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-33010iURZ100202007-202012

sub8983A-33011

main8983A-33011iURZ100202101

9011908C89

main90119-08C89

9155380625

main91553-80625

91553A0622

main91553-A0622

91621J0614

main91621-J0614

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
