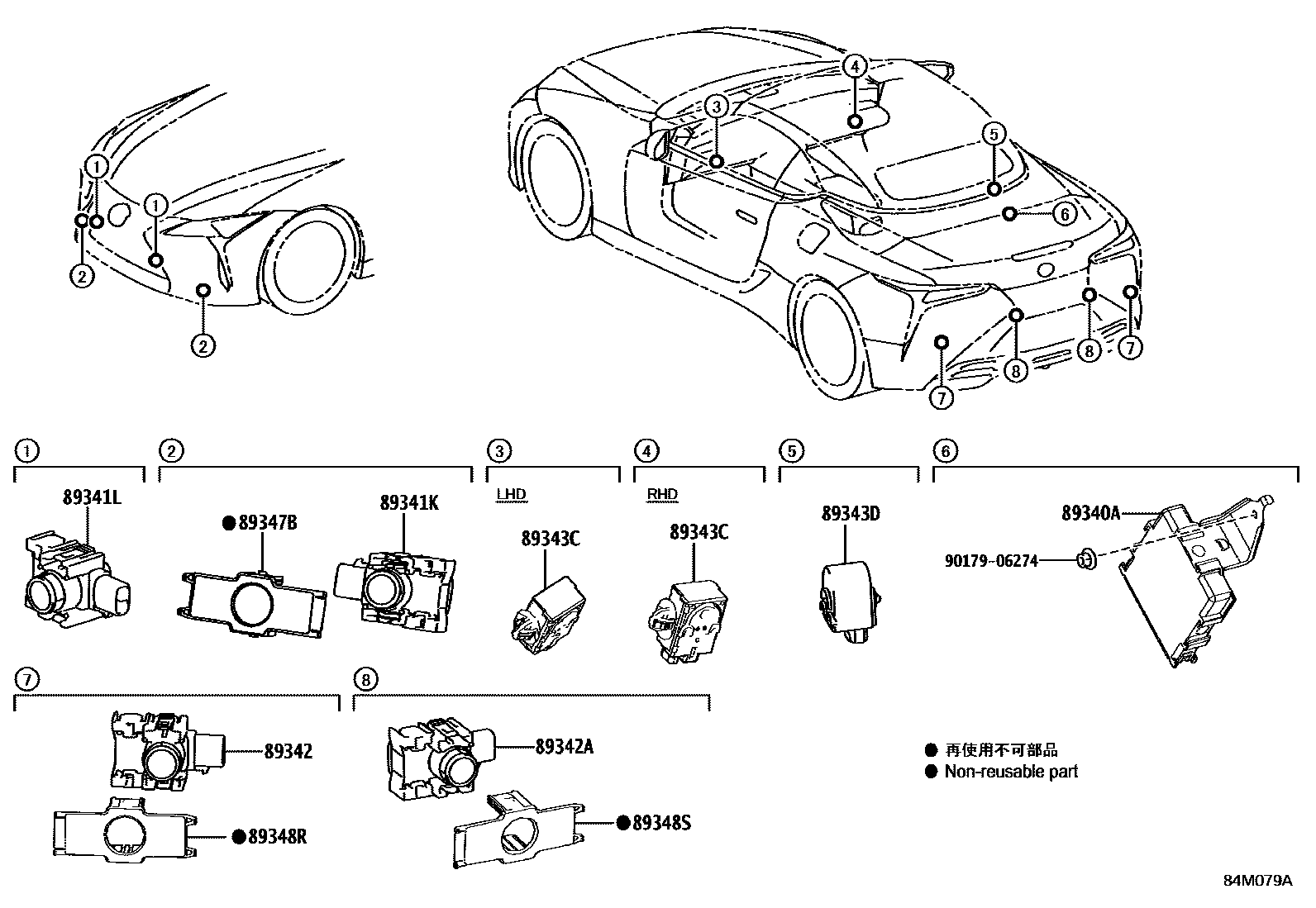

CLEARANCE & BACK SONAR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
SONIC SILVER,1J2
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
BLAZING CARNELIAN CONTRAS,4Y1
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
STRUCTURAL BLUE,8Y0
89341LSENSOR, ULTRASONIC, FRONT CENTER
89342SENSOR, ULTRASONIC, REAR CORNER
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
SONIC SILVER,1J2
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
BLAZING CARNELIAN CONTRAS,4Y1
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
STRUCTURAL BLUE,8Y0
89342ASENSOR, ULTRASONIC, REAR CENTER
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
SONIC SILVER,1J2
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
BLAZING CARNELIAN CONTRAS,4Y1
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
STRUCTURAL BLUE,8Y0
89343CBUZZER, CLEARANCE WARNING, NO.1
89343DBUZZER, CLEARANCE WARNING, NO.2
CURACAO SPEC&BLIND SPOT MONITOR-WITHOUT
89347BRETAINER, ULTRASONIC SENSOR, FRONT CORNER
89348RRETAINER, ULTRASONIC SENSOR, REAR CORNER
89348SRETAINER, ULTRASONIC SENSOR, REAR CENTER
9017906274
main90179-06274
11 parts on this diagram · 1 diagram in section
