ELECTRONIC FUEL INJECTION SYSTEM
6403
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89571COMPUTER, FUEL PUMP CONTROL
89573BRACKET, FUEL PUMP CONTROL COMPUTER
89661COMPUTER, ENGINE CONTROL
DENSO
DENSO
DENSO,AZERBAIJAN SPEC
DENSO,UKRAINE SPEC
DENSO,ARGENTINA SPEC
DENSO
DENSO,BRUNEI SPEC
DENSO,INDONESIA SPEC
DENSO,MALAYSIA SPEC
DENSO,PHILIPPINE SPEC
DENSO,MIDDLE & SOUTH AMERICA SPEC
DENSO,GUATEMALA SPEC
DENSO
DENSO,SINGAPORE SPEC
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669EBRACKET, ENGINE CONTROL COMPUTER, NO.4
89871DRIVER, INJECTOR
89878ADRIVER, EXHAUST CHANGE VALVE
AZERBAIJAN SPEC
PHILIPPINE SPEC
MIDDLE & SOUTH AMERICA SPEC
UKRAINE SPEC
ARGENTINA SPEC
GUATEMALA SPEC
89879BRACKET, INJECTOR DRIVER
89879ABRACKET, INJECTOR DRIVER
9015350015
main90153-50015
9017906274
main90179-06274
9043012005
main90430-12005
9155180625
main91551-80625
9167180614
main91671-80614
9167380616
main91673-80616
9167380620
main91673-80620
9415180600
main94151-80600

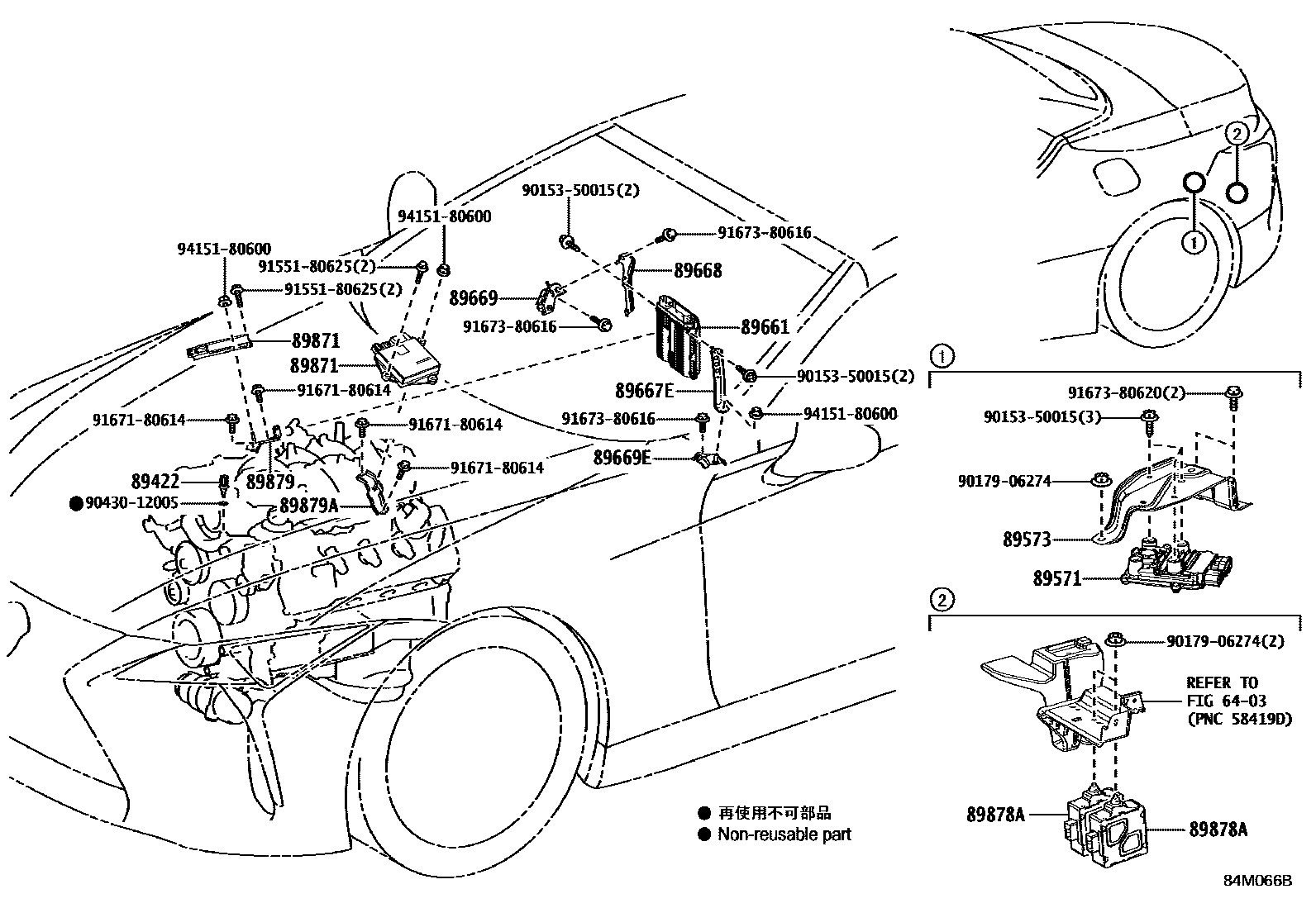

21 parts on this diagram · 2 diagrams in section
