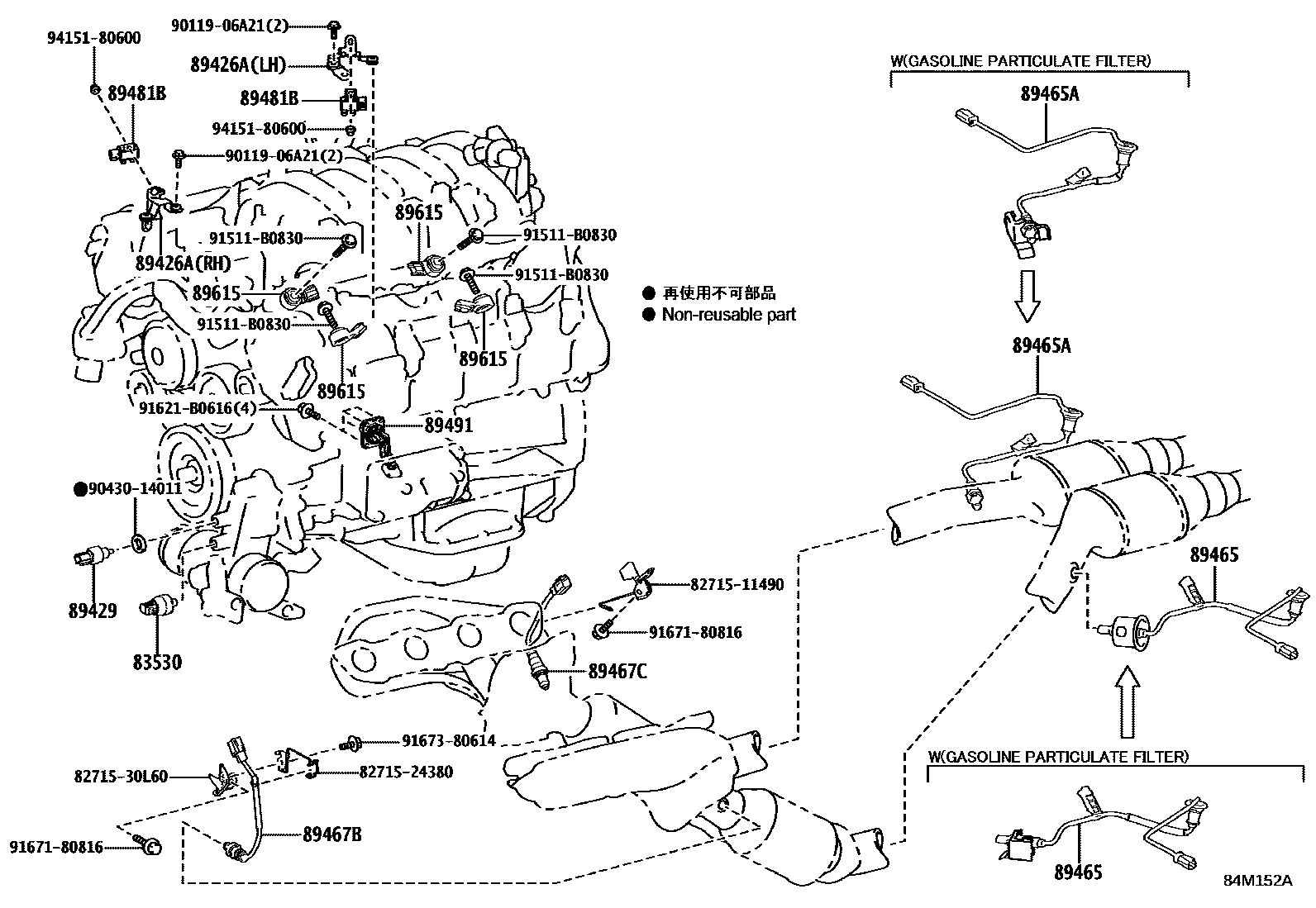

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1CONSOLE BOX 0010 1STEERING 0011 1SEAT 0012 1DOOR, ROOF & FLOOR 0013 1LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iURZ100202007

DENSO,*369

main83530-60020iURZ100202007

YAZAKI,*369

89426ABRACKET, VACUUM SENSOR

main89426-11010iURZ100..EUR,GEN202007

RH

main89426-11020iURZ100..EUR,GEN202007

LH

89429SENSOR, OIL TEMPERATURE

main89429-53010iURZ100202007

89465SENSOR, OXYGEN

main89465-11010iURZ100..LHD..EUR202007

PHILIPPINE SPEC

main89465-11030iURZ100..EUR,GEN202007

89465ASENSOR, OXYGEN NO.2

main89465-11020iURZ100..LHD..EUR202007

PHILIPPINE SPEC

main89465-11040iURZ100..EUR,GEN202007

89467BSENSOR, AIR FUEL RATIO

main89467-24010iURZ100202007

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-11050iURZ100202007

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iURZ100..EUR,GEN202007

89491SENSOR, ENGINE OIL LEVEL

main89491-24020iURZ100202007

89615SENSOR, KNOCK CONTROL

main89615-20090iURZ100202007

8271511490BRACKET,WIRING HARNESS CLAMP

main82715-11490

8271524380BRACKET,WIRING HARNESS CLAMP

main82715-24380

8271530L60BRACKET,WIRING HARNESS CLAMP

main82715-30L60

9011906A21

main90119-06A21

9043014011

main90430-14011

91511B0830

main91511-B0830

91621B0616

main91621-B0616

9167180816

main91671-80816

9167380614

main91673-80614

9415180600

main94151-80600

20 parts on this diagram · 13 diagrams in section
