WIRING & CLAMP

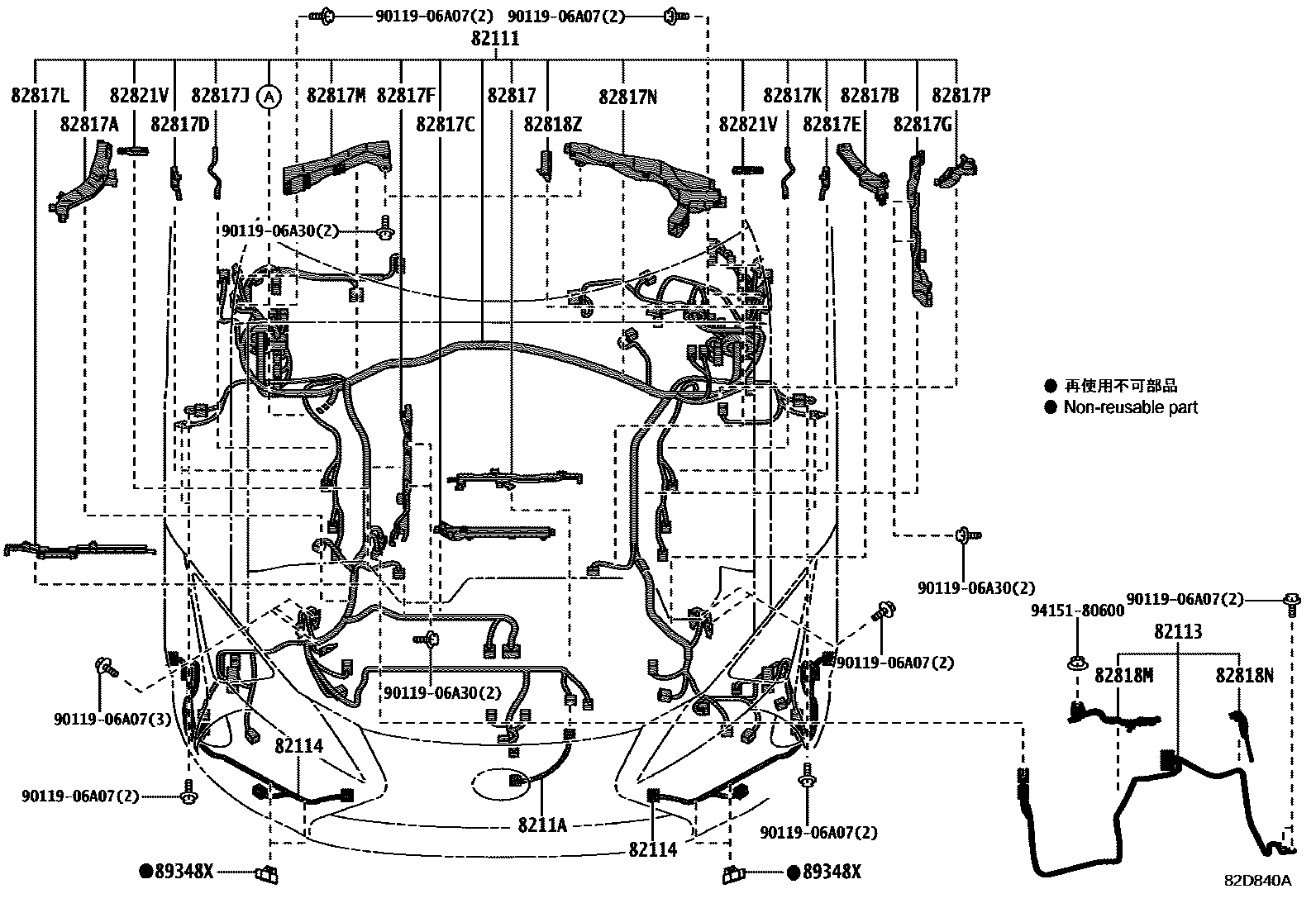

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-11033i202111

main82111-11510i202007-202110

main82111-11520i202007

main82111-11550i202007-202111

main82111-11530i202007-202111

INDONESIA SPEC

main82111-11560i202007-202111

PANAMA SPEC

82113WIRE, ENGINE ROOM, NO.3

main82113-11010i202007

main82113-50130i202007

82114WIRE, ENGINE ROOM, NO.4

main82114-11020×2i202007

8211AWIRE, ENGINE ROOM, NO.6

main8211A-11010i202007

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-11670i202007

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-11740i202007

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-11780i202007

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-11790i202007

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-50P80i202007

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-50P90i202007

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-50Q10i202007

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-50Q60i202007

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-50Z70i202007

82817KPROTECTOR, WIRING HARNESS, NO.10

main82817-50Z80i202007

82817LPROTECTOR, WIRING HARNESS, NO.11

main82817-11770i202007

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-50N50i202007

82817NPROTECTOR, WIRING HARNESS, NO.13

main82817-5AA70i202007

82817PPROTECTOR, WIRING HARNESS, NO.14

main82817-5AD60i202007

main82817-5AD70i202007

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-11700i202007

82818MPROTECTOR, WIRING HARNESS, NO.13

main82817-50P40i202007

main82817-50P50i202007

82818NPROTECTOR, WIRING HARNESS, NO.14

main82817-5AE30i202007

82818ZPROTECTOR, WIRING HARNESS, NO.22

main82817-12860i202007

82821VCOVER, CONNECTOR

main82821-11070×2i202007

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050×4i202007

9011906A07

main90119-06A07

9011906A30

main90119-06A30

9415180600

main94151-80600

27 parts on this diagram · 18 diagrams in section
