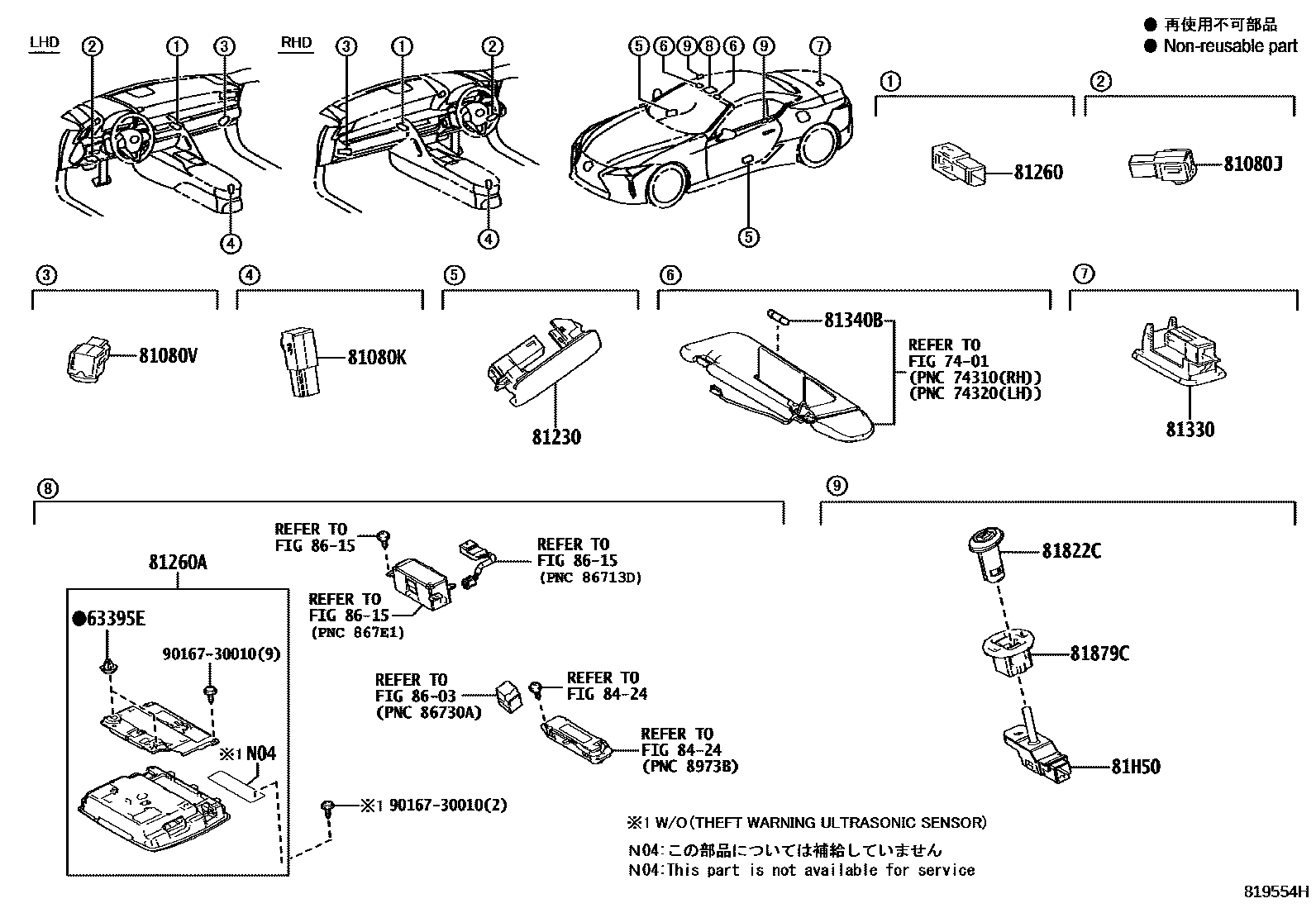

INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main90467-09245iURZ100¥80202007

7401

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33310iURZ100¥1,260202007

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-30170iURZ100¥920202007

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-33310iURZ100¥1,260202007

81230LAMP ASSY, COURTESY

main81230-11030iURZ100¥1,090202007

81260LAMP ASSY, GLOVE BOX

main81080-33290iURZ100¥920202007

81260ALAMP ASSY, MAP

main81208-11100iURZ100..LHD202007

main81208-11110iURZ100..RHD202007

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010iURZ100¥1,090202007

81340BBULB (FOR VANITY LAMP)

main90981-14014iURZ100¥140202007

12V 2W

81822CCOVER, INDICATOR LAMP

main81822-11010iURZ100¥80202007

81879CBRACKET, INDICATOR LAMP

main81879-50020iURZ100¥110202007

81H50LAMP ASSY, INDICATOR

main81850-11010iURZ100¥1,130202007

8424

8603

8615

9016730010

main90167-30010¥60

17 parts on this diagram · 1 diagram in section
