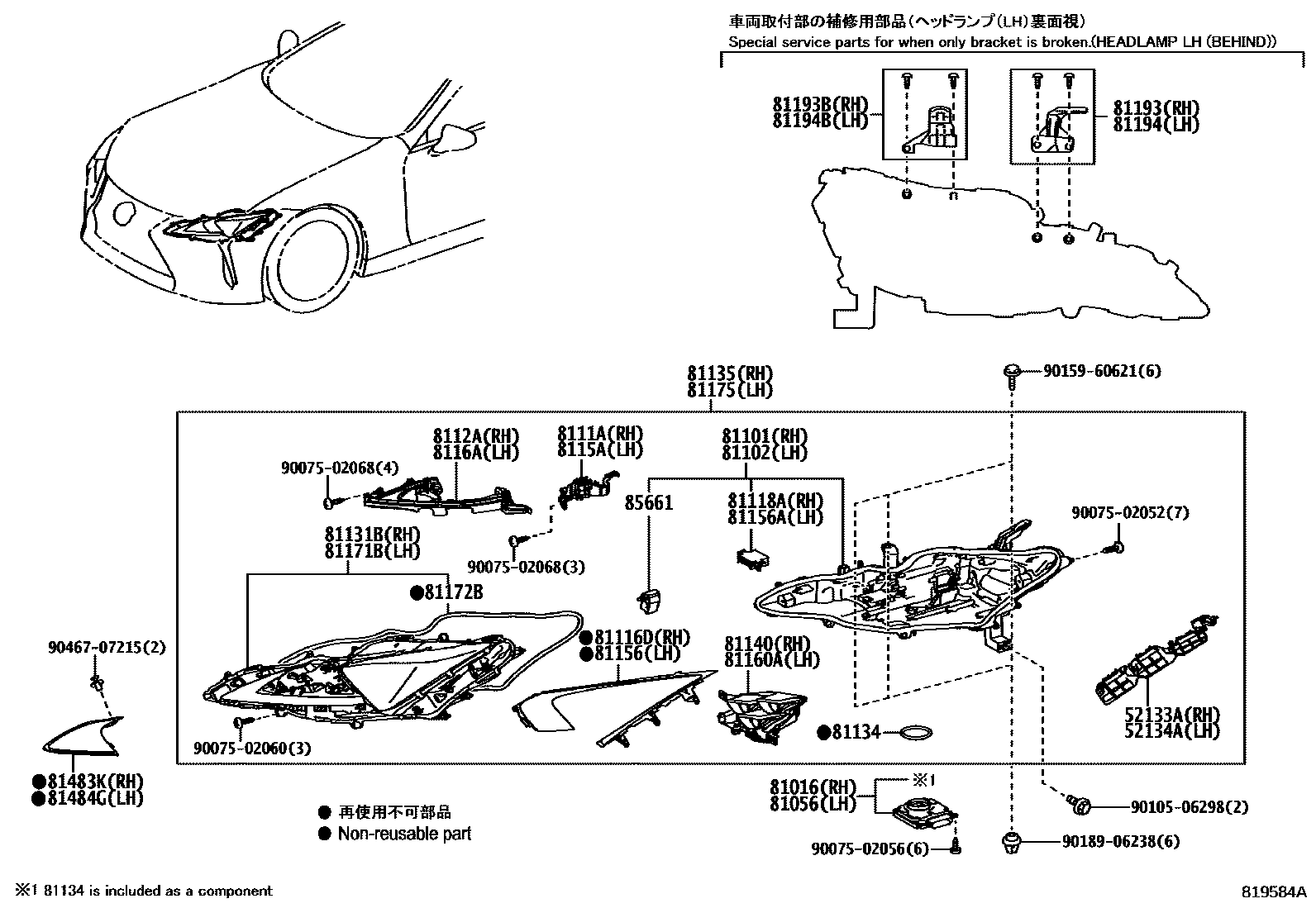

HEADLAMP
52133ABRACKET, FRONT BUMPER, RH
PERSONAL PACKAGE&HEADLAMP-LED & WITH(*AHB) & UNWIND
52134ABRACKET, FRONT BUMPER, LH
81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1
81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1
81101HOUSING SUB-ASSY, HEADLAMP, RH
81102HOUSING SUB-ASSY, HEADLAMP, LH
81116DRIM, HEAD LAMP, RH
PERSONAL PACKAGE&HEADLAMP-LED & WITH(*AHB) & UNWIND
81118ABRACKET, HEADLAMP, RH
8111AUNIT, HEADLAMP CORNERING LED, RH
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
PERSONAL PACKAGE&HEADLAMP-LED & WITH(*AHB) & UNWIND
"UNWIND"*(E)
81156RIM, HEADLAMP, LH
PERSONAL PACKAGE&HEADLAMP-LED & WITH(*AHB) & UNWIND
81156ABRACKET, HEADLAMP, LH
8115AUNIT, HEADLAMP CORNERING LED, LH
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
81172BGASKET, HEADLAMP LENS
81175UNIT ASSY, HEADLAMP, LH
PERSONAL PACKAGE&HEADLAMP-LED & WITH(*AHB) & UNWIND
"UNWIND"*(E)
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81483KCOVER, DAYTIME RUNNING LAMP, RH
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
SONIC SILVER,1J2
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
BLAZING CARNELIAN CONTRAS,4Y1
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
STRUCTURAL BLUE,8Y0
81484GCOVER, DAYTIME RUNNING LAMP, LH
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
SONIC SILVER,1J2
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
BLAZING CARNELIAN CONTRAS,4Y1
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
STRUCTURAL BLUE,8Y0
85661MOTOR, HEADLAMP LEVELING, RH
9007502052
main90075-02052
9007502056
main90075-02056
9007502060
main90075-02060
9007502068
main90075-02068
9010506298
main90105-06298
9015960621
main90159-60621
9018906238
main90189-06238
9046707215
main90467-07215
37 parts on this diagram · 1 diagram in section
