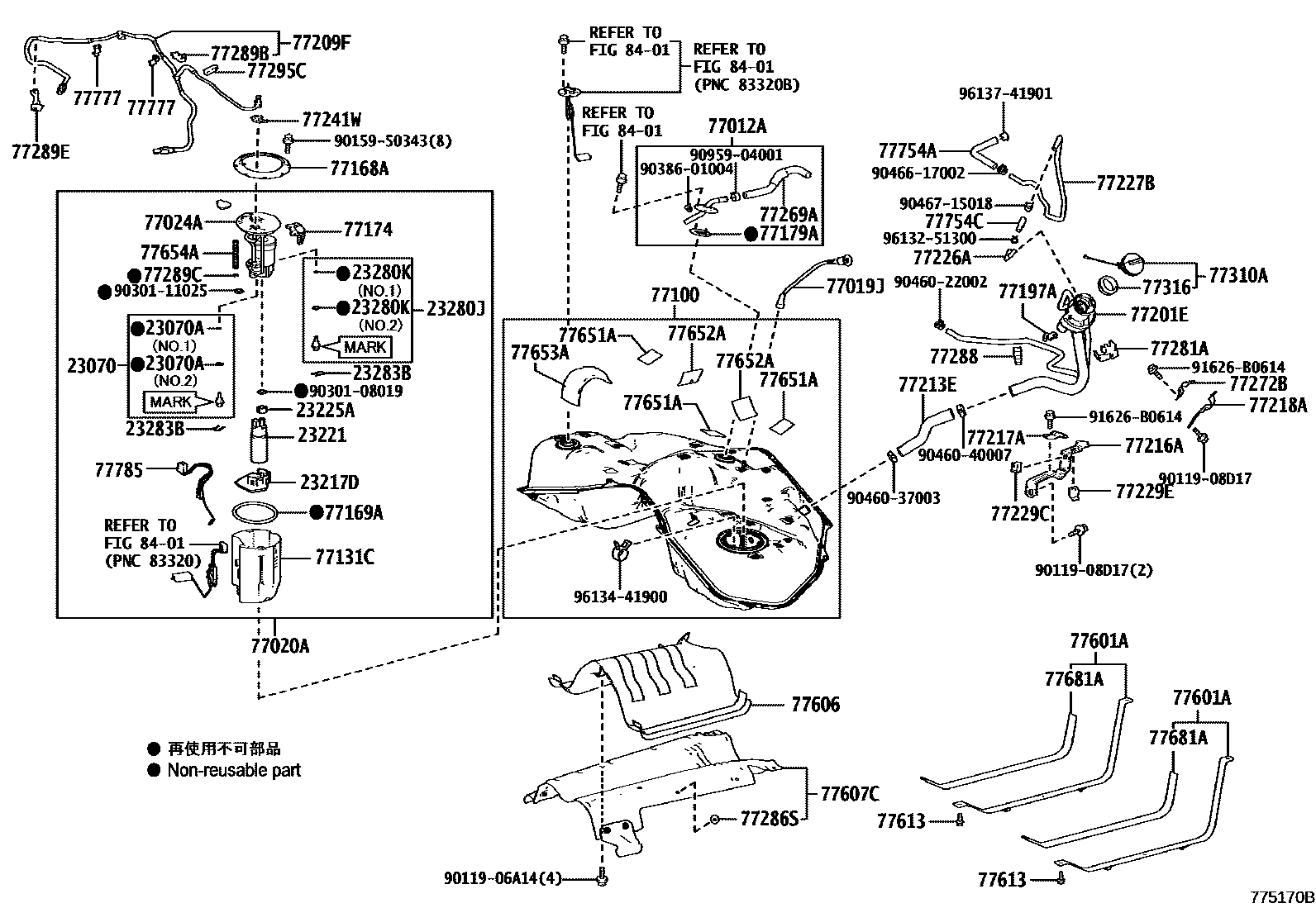

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL TUBE 0004 1CHARCOAL CANISTER 0005 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-31030i2URGSE..URZ100¥2,560202007

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-04013i2URGSE..URZ100¥140202007

NO.1:REFER ILLUST.

main90301-15024i2URGSE..URZ100¥140202007

NO.2:REFER ILLUST.

23217DFILTER, FUEL PUMP

main23217-31080i2URGSE..URZ100¥1,320202007

23221PUMP, FUEL

main23221-31130i2URGSE..URZ100¥23,400202007

23225ASPACER, FUEL PUMP

main23225-31010i2URGSE..URZ100¥40202007

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-38020i2URGSE..URZ100¥6,000202007

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2URGSE..URZ100¥140202007

NO.1:REFER ILLUST.

main90301-15024i2URGSE..URZ100¥140202007

NO.2:REFER ILLUST.

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-36010i2URGSE..URZ100¥110202007

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-11040iURZ100..LHD..EUR¥2,980202007

UKRAINE SPEC

main77012-11040iURZ100..LHD..EUR¥2,980202007

ARGENTINA SPEC

main77012-11040iURZ100..LHD..EUR¥2,980202007

GUATEMALA SPEC

main77012-11040iURZ100..GEN¥2,980202007

AZERBAIJAN SPEC

main77012-11040iURZ100..GEN¥2,980202007

PHILIPPINE SPEC

main77012-11040iURZ100..GEN¥2,980202007

MIDDLE & SOUTH AMERICA SPEC

main77012-11050iURZ100..EUR,GEN202007

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77019-11010iURZ100..EUR,GEN202007

main77019-50030iURZ100..ARL,GCC¥890202007

AZERBAIJAN SPEC

main77019-50030iURZ100..ARL,GCC¥890202007

PHILIPPINE SPEC

main77019-50030iURZ100..ARL,GCC¥890202007

MIDDLE & SOUTH AMERICA SPEC

main77019-50030iURZ100..ARL,GCC¥890202007

UKRAINE SPEC

main77019-50030iURZ100..ARL,GCC¥890202007

ARGENTINA SPEC

main77019-50030iURZ100..ARL,GCC¥890202007

GUATEMALA SPEC

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-11010iURZ100..EUR,GEN202007

main77020-11020iURZ100..GEN¥51,400202007

MIDDLE & SOUTH AMERICA SPEC

main77020-11020iURZ100..ARL,GCC¥51,400202007

AZERBAIJAN SPEC

main77020-11020iURZ100..ARL,GCC¥51,400202007

PHILIPPINE SPEC

main77020-11020iURZ100..ARL,GCC¥51,400202007

UKRAINE SPEC

main77020-11020iURZ100..ARL,GCC¥51,400202007

ARGENTINA SPEC

main77020-11020iURZ100..ARL,GCC¥51,400202007

GUATEMALA SPEC

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-11010iURZ100¥6,300202007

77100TANK ASSY, FUEL

main77001-11110iURZ100¥34,500202302

main77001-11130iURZ100¥37,900202007-202302

sub77001-11110¥34,500

77131CSUB-TANK, FUEL, NO.1

main77131-11010iURZ100¥1,350202007

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iURZ100¥1,170202007

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iURZ100..ARL,GCC¥280202007

GUATEMALA SPEC

main77169-52010iURZ100..LHD..EUR¥280202007

AZERBAIJAN SPEC

main77169-52010iURZ100..LHD..EUR¥280202007

PHILIPPINE SPEC

main77169-52010iURZ100..LHD..EUR¥280202007

MIDDLE & SOUTH AMERICA SPEC

main77169-52010iURZ100..LHD..EUR¥280202007

UKRAINE SPEC

main77169-52010iURZ100..LHD..EUR¥280202007

ARGENTINA SPEC

main77169-53010iURZ100..EUR,GEN¥1,170202007

77174SUPPORT, FUEL SUCTION, NO.1

main77174-48040iURZ100¥400202007

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iURZ100¥260202007

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-52010iURZ100¥120202007

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-11140iURZ100¥6,600202007

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-11040iURZ100..LHD..EUR¥3,640202007

GUATEMALA SPEC

main77209-11040iURZ100..ARL,GCC¥3,640202007

AZERBAIJAN SPEC

main77209-11040iURZ100..ARL,GCC¥3,640202007

PHILIPPINE SPEC

main77209-11040iURZ100..ARL,GCC¥3,640202007

MIDDLE & SOUTH AMERICA SPEC

main77209-11040iURZ100..ARL,GCC¥3,640202007

UKRAINE SPEC

main77209-11040iURZ100..ARL,GCC¥3,640202007

ARGENTINA SPEC

main77209-11060iURZ100..EUR,GEN202007

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-11070iURZ100..ARL,GCC¥1,510202007

AZERBAIJAN SPEC

main77213-11070iURZ100..ARL,GCC¥1,510202007

PHILIPPINE SPEC

main77213-11070iURZ100..ARL,GCC¥1,510202007

MIDDLE & SOUTH AMERICA SPEC

main77213-11070iURZ100..ARL,GCC¥1,510202007

UKRAINE SPEC

main77213-11070iURZ100..ARL,GCC¥1,510202007

ARGENTINA SPEC

main77213-11070iURZ100..ARL,GCC¥1,510202007

GUATEMALA SPEC

main77213-11090iURZ100..EUR,GEN202007

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-11020iURZ100¥920202007

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-11060iURZ100¥310202007

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-11030iURZ100¥490202007

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-11070iURZ100¥460202007

77227BTUBE, FUEL TANK BREATHER, NO.7

main77227-11030iURZ100¥1,860202007

77229CCLAMP, BREATHER TUBE

main77229-11080iURZ100¥300202007

77229ECLAMP, BREATHER TUBE

main77229-11110iURZ100¥500202007

77241WCLIP, TUBE JOINT

main77241-33011iURZ100¥80202007

77269AHOSE, FUEL TANK BREATHER

main77269-11010iURZ100..ARL,GCC¥1,110202007

AZERBAIJAN SPEC

main77269-11010iURZ100..ARL,GCC¥1,110202007

PHILIPPINE SPEC

main77269-11010iURZ100..ARL,GCC¥1,110202007

MIDDLE & SOUTH AMERICA SPEC

main77269-11010iURZ100..ARL,GCC¥1,110202007

UKRAINE SPEC

main77269-11010iURZ100..ARL,GCC¥1,110202007

ARGENTINA SPEC

main77269-11010iURZ100..ARL,GCC¥1,110202007

GUATEMALA SPEC

main77269-11020iURZ100..EUR,GEN202007

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-11040iURZ100¥470202007

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-11040iURZ100..RHD¥500202007

main77281-11080iURZ100..LHD202007

77281ACLAMP, FUEL FILLER PIPE

main77229-11120iURZ100¥580202007

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iURZ100¥200202007

77288CLAMP, BREATHER HOSE

main77229-50080iURZ100¥410202007

77289BCLAMP, FUEL TUBE, NO.3

main77289-11030iURZ100¥270202007

77289CCLAMP, FUEL TUBE, NO.4

main77289-52090iURZ100¥470202007

77289ECLAMP, FUEL TANK, NO.1

main77289-11040iURZ100¥490202007

77295CGROMMET, FUEL TUBE

main77295-11010iURZ100¥330202007

77310ACAP ASSY, FUEL TANK

main77300-12020iURZ100..ARL,GCC¥1,660202007

AZERBAIJAN SPEC

main77300-12020iURZ100..ARL,GCC¥1,660202007

PHILIPPINE SPEC

main77300-12020iURZ100..ARL,GCC¥1,660202007

MIDDLE & SOUTH AMERICA SPEC

main77300-12020iURZ100..ARL,GCC¥1,660202007

UKRAINE SPEC

main77300-12020iURZ100..ARL,GCC¥1,660202007

ARGENTINA SPEC

main77300-12020iURZ100..ARL,GCC¥1,660202007

GUATEMALA SPEC

main77300-48020iURZ100..EUR,GEN¥1,960202007

77316GASKET, FUEL TANK CAP

main77316-52040iURZ100..ARL,GCC¥230202007

AZERBAIJAN SPEC

main77316-52040iURZ100..ARL,GCC¥230202007

PHILIPPINE SPEC

main77316-52040iURZ100..ARL,GCC¥230202007

MIDDLE & SOUTH AMERICA SPEC

main77316-52040iURZ100..ARL,GCC¥230202007

UKRAINE SPEC

main77316-52040iURZ100..ARL,GCC¥230202007

ARGENTINA SPEC

main77316-52040iURZ100..ARL,GCC¥230202007

GUATEMALA SPEC

main77316-75020iURZ100..EUR,GEN¥200202007

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-11040iURZ100..EUR¥1,830202007

main77601-11050iURZ100..ARL,GCC,GEN202007

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-11020iURZ100¥9,900202007

77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2

main77607-11010iURZ100¥5,100202007

77613BOLT, FUEL TANK BAND SET

main90119-10A05iURZ100¥120202007

77651ACUSHION, FUEL TANK, NO.1

main77651-20090iURZ100¥250202007-202302

77652ACUSHION, FUEL TANK, NO.2

main77651-36130iURZ100¥430202007-202302

77653ACUSHION, FUEL TANK, NO.3

main77653-35050iURZ100¥650202007-202302

77654ACUSHION, FUEL TANK, NO.4

main77652-22090iURZ100¥340202007

77681ASEAT, FUEL TANK BAND

main77681-21020iURZ100¥660202007

77754AHOSE, CHARCOAL CANISTER OUTLET, NO.2

main77754-11060iURZ100¥760202007

77754CHOSE, FUEL TANK BREATHER

main77754-11050iURZ100¥360202007

77777BRACKET, FUEL TUBE CLAMP

main77778-50020iURZ100¥230202007

77785HARNESS, FUEL PUMP

main77785-30050iURZ100¥870202007

8401

9011906A14

main90119-06A14¥60

9011908D17

main90119-08D17¥100

9015950343

main90159-50343¥60

9030108019

main90301-08019¥200

9030111025

main90301-11025¥140

9038601004

main90386-01004¥140

9046022002

main90460-22002¥530

9046037003

main90460-37003¥190

9046040007

main90460-40007¥190

9046617002

main90466-17002¥120

9046715018

main90467-15018¥250

9095904001

main90959-04001¥240

91626B0614

main91626-B0614¥60

9613251300

main96132-51300¥120

9613441900

main96134-41900¥90

9613741901

main96137-41901¥160

72 parts on this diagram · 5 diagrams in section
