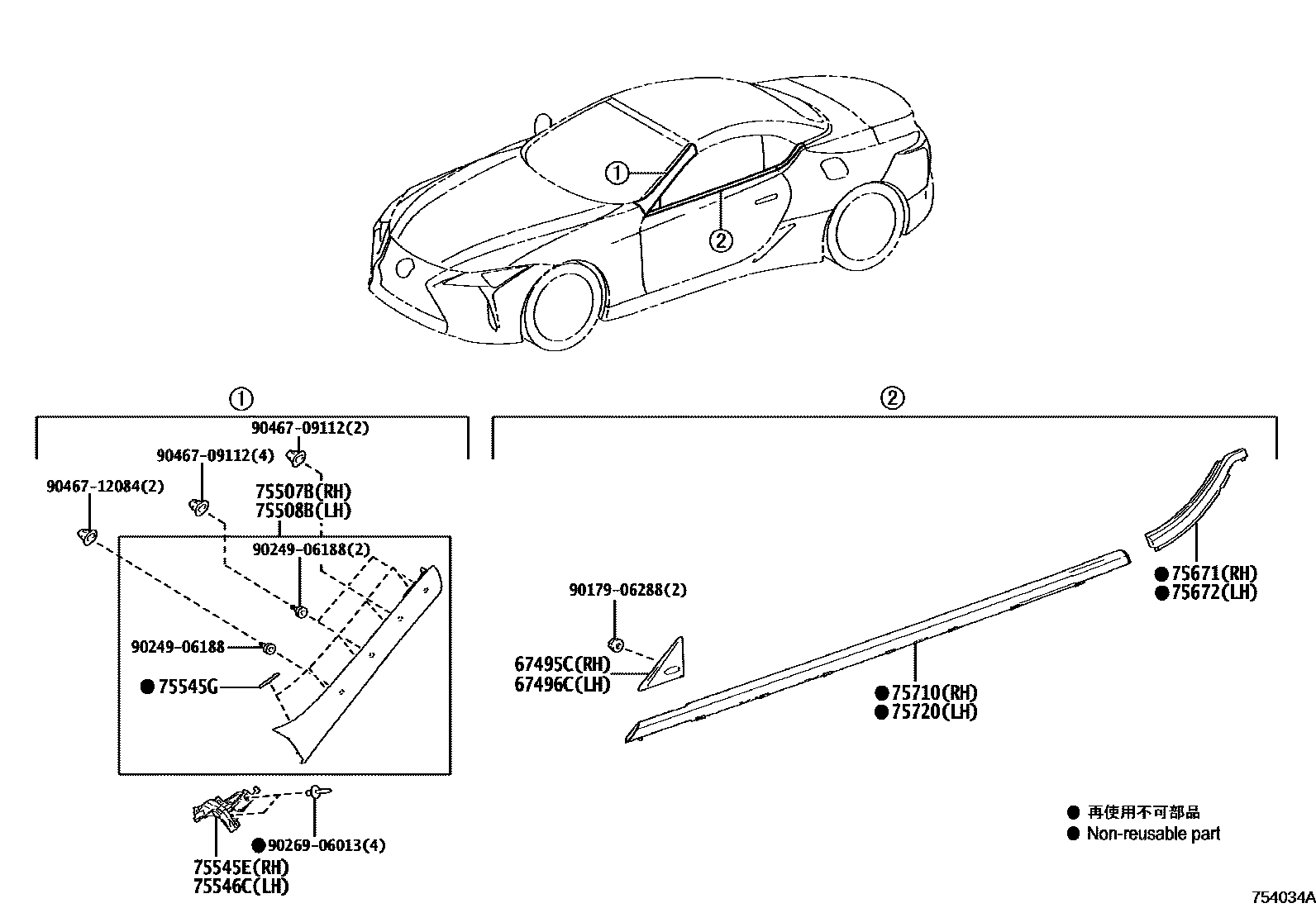

SIDE MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75507BGARNISH SUB-ASSY, ROOF SIDE RAIL, RH
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
SONIC SILVER,1J2
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
BLAZING CARNELIAN CONTRAS,4Y1
NAPLES YELLOW CONTRAST LA,5C1
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
STRUCTURAL BLUE,8Y0
75508BGARNISH SUB-ASSY, ROOF SIDE RAIL, LH
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
SONIC SILVER,1J2
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
BLAZING CARNELIAN CONTRAS,4Y1
NAPLES YELLOW CONTRAST LA,5C1
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
STRUCTURAL BLUE,8Y0
75545ECLIP, ROOF DRIP SIDE FINISH MOULDING, RH
75545GCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75546CCLIP, ROOF DRIP SIDE FINISH MOULDING, LH
75671MOULDING, QUARTER BELT, RH
75672MOULDING, QUARTER BELT, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
9017906288
9024906188
9026906013
9046709112
9046712084
16 parts on this diagram · 2 diagrams in section
