SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73108BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, RH

main73108-11020iURZ100¥2,640202007

73109BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, LH

main73108-11020iURZ100¥2,640202007

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iURZ100¥1,110202007

73131ABRACKET, SEAT BELT

main73131-11010iURZ100¥670202007

73137ACOVER, SHOULDER BELT ANCHOR, UPR

main73137-11010-C0iURZ100202007

BLACK,TRIM2#

main73137-11010-E0iURZ100202007

LT.OCHRE,TRIM4#

73172BCAP, FRONT SHOULDER BELT HANGER, RH

main73172-11020iURZ100¥2,090202007

73173DCAP, FRONT SHOULDER BELT HANGER, LH

main73172-11020iURZ100¥2,090202007

73178ACAP, SEAT BELT ANCHOR COVER

main73178-11020iURZ100¥1,190202007

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-11050-C1iURZ100202202-202207

BLACK/BLACK,TRIM20,3#

sub73210-11051¥24,900

main73210-11050-C1iURZ100202007-202202

BLACK/BLACK,TRIM2#,3#

sub73210-11051¥24,900

main73210-11050-D0iURZ100202202-202207

DK. ROSE/BLACK,TRIM23

sub73210-11051¥24,900

main73210-11050-E2iURZ100202007-202207

OCHER/BLACK,TRIM4#

sub73210-11051¥24,900

main73210-11050-J2iURZ100202007-202207

BLUE/WHITE,TRIM0#

sub73210-11051¥24,900

main73210-11051-C1iURZ100202208

BLACK/BLACK,TRIM20,3#

main73210-11051-D0iURZ100202208

BLACK/DK.ROSE,TRIM23

main73210-11051-E2iURZ100202208

BLACK/OCHRE,TRIM4#

main73210-11051-J2iURZ100202208

WHITE/BLUE,TRIM0#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iURZ100¥170202007

73219STOPPER, TONGUE PLATE

main73219-33010iURZ100¥100202007

BLACK

main73219-33020iURZ100¥100202007

GRAY

main73219-33030iURZ100¥100202007

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-11040-C1iURZ100202202-202207

BLACK/BLACK,TRIM20,3#

sub73220-11041¥24,900

main73220-11040-C1iURZ100202007-202202

BLACK/BLACK,TRIM2#,3#

sub73220-11041¥24,900

main73220-11040-D0iURZ100202202-202207

DK. ROSE/BLACK,TRIM23

sub73220-11041¥24,900

main73220-11040-E2iURZ100202007-202207

OCHER/BLACK,TRIM4#

sub73220-11041¥24,900

main73220-11040-J2iURZ100202007-202207

BLUE/WHITE,TRIM0#

sub73220-11041¥24,900

main73220-11041-C1iURZ100202208

BLACK/BLACK,TRIM20,3#

main73220-11041-D0iURZ100202208

BLACK/DK.ROSE,TRIM23

main73220-11041-E2iURZ100202208

BLACK/OCHRE,TRIM4#

main73220-11041-J2iURZ100202208

WHITE/BLUE,TRIM0#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-11020-A1iURZ100..LHD202007

WHITE,TRIM0#

main73230-11020-C1iURZ100..LHD202007

BLACK,TRIM2#,3#,4#

main73230-11030-A1iURZ100..RHD202007

WHITE,TRIM0#

main73230-11030-C1iURZ100..RHD202007

BLACK,TRIM2#,3#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-A7iURZ100202007

WHITE,TRIM0#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iURZ100202007

BLACK,TRIM2#,3#,4#

sub73233-60020¥500

sub73233-35010¥620

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-11010-A1iURZ100..LHD202007

WHITE,TRIM0#

main73240-11010-C1iURZ100..LHD202007

BLACK,TRIM2#,3#,4#

main73240-11020-A1iURZ100..RHD202007

WHITE,TRIM0#

main73240-11020-C1iURZ100..RHD202007

BLACK,TRIM2#,3#,4#

9010511041

main90105-11041¥100

9010911059

main90109-11059¥240

9016740044

main90167-40044¥70

9017906299

main90179-06299¥70

9017911010

main90179-11010¥110

9155180616

main91551-80616¥60

9155380618

main91553-80618¥60

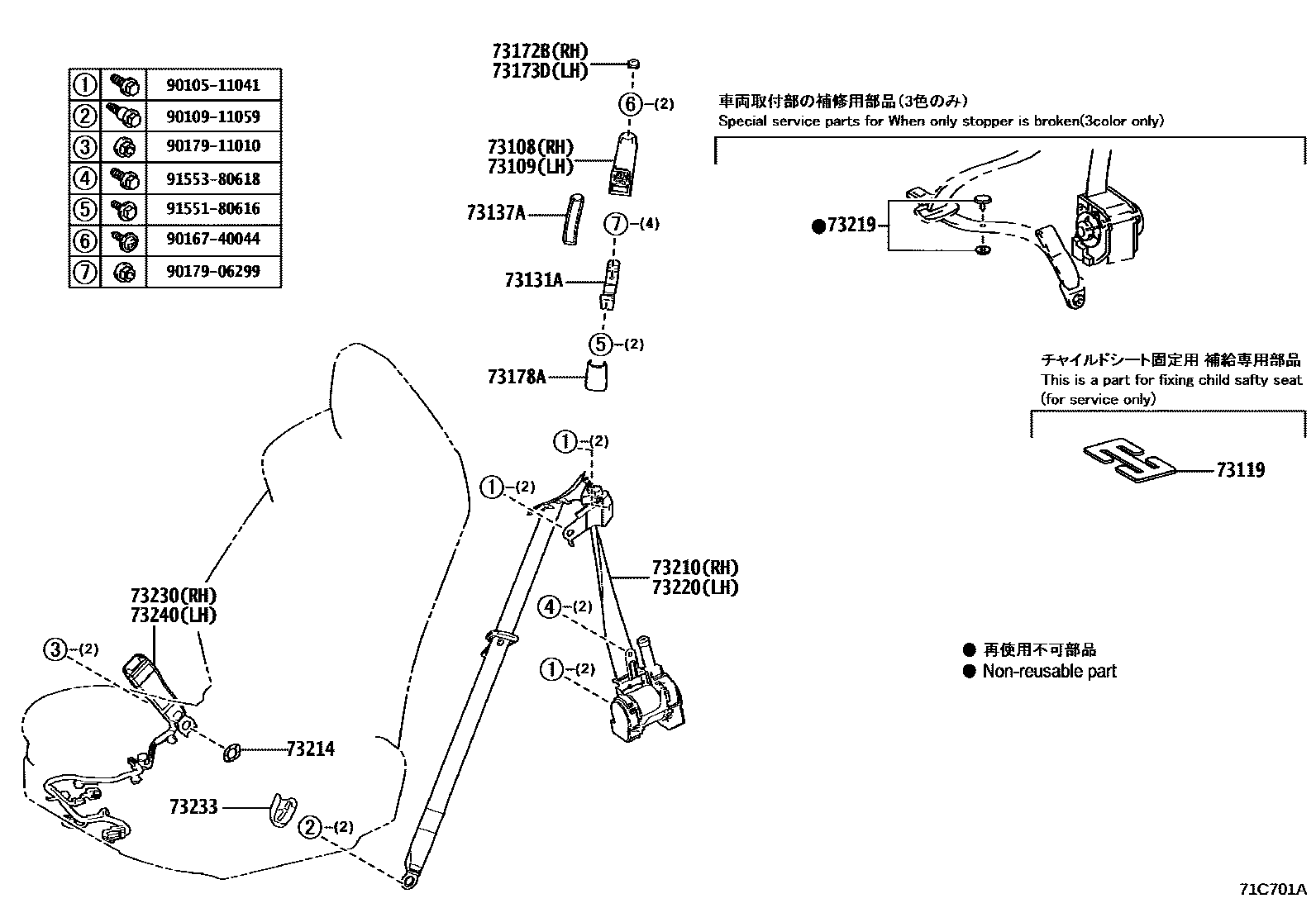

22 parts on this diagram · 2 diagrams in section
