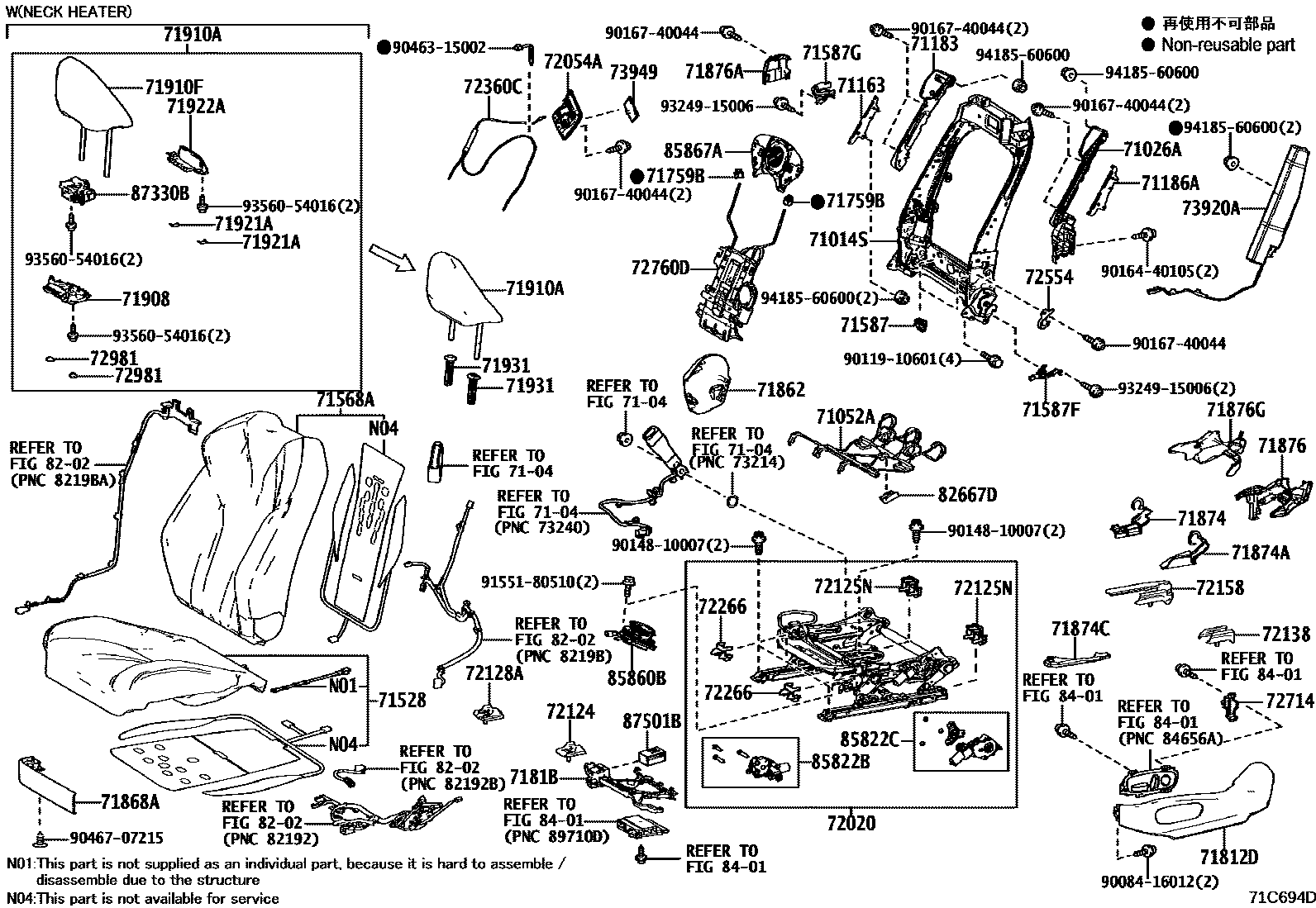

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
71026ASUPPORT, FRONT SEATBACK, LH
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71163BRACKET, FRONT SEATBACK SUPPORT, RH
71183SUPPORT, FRONT SEATBACK, RH
71186BRACKET, FRONT SEAT SIDE SUPPORT, RH
71186ABRACKET, FRONT SEAT SIDE SUPPORT, LH
71528PAD, FRONT SEAT CUSHION W/COVER, LH
BLACK,TRIM2#
LT.OCHRE,TRIM4#
BLACK,TRIM2#
LT.OCHRE,TRIM4#
BLACK,TRIM2#
LT.OCHRE,TRIM4#
71568APAD, FRONT SEATBACK W/COVER, LH
BLACK,TRIM2#
LT.OCHRE,TRIM4#
BLACK,TRIM2#
LT.OCHRE,TRIM4#
71587PROTECTOR, FRONT SEATBACK EDGE
71587FPROTECTOR, FRONT SEATBACK EDGE, OUTER(FOR LH SEAT)
71587GPROTECTOR, FRONT SEATBACK EDGE, INNER(FOR LH SEAT)
71759BHOOK, FRONT SEATBACK
71812DSHIELD, FRONT SEAT CUSHION, LH
BLACK/RED,TRIM23
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLACK/RED,TRIM23
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/RED,TRIM23
WHITE,TRIM0#
BLACK,TRIM2#,3#
BLACK,TRIM20,3#
OCHER,TRIM4#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
71862SHIELD, FRONT SEAT CUSHION, INNER LH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
BLACK
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
71874CSHIELD, FRONT SEAT CUSHION, LOWER
71876COVER, RECLINING ADJUSTER INSIDE, LH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
71908COVER SUB-ASSY, FRONT SEAT HEADREST
main71908-11010
71910AHEADREST ASSY, FRONT SEAT
BLACK,TRIM2#,RH
LT.OCHRE,TRIM4#,RH
BLACK,TRIM2#,LH
LT.OCHRE,TRIM4#,LH
71910FHEADREST ASSY, FRONT SEAT, LH
71921ACOVER, FRONT SEAT HEADREST
71922ACOVER, FRONT SEAT HEADREST UNDER
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK),BLACK,TRIM2#,3#,4#
W/O(LOCK),BLACK,TRIM2#,3#,4#
72020ADJUSTER ASSY, FRONT SEAT, LH
72054ALEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
BLACK,TRIM2#
OCHER,TRIM4#
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
72125NCOVER, SEAT TRACK, UPPER NO.4
sub72125-47010
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
72138COVER, SEAT TRACK, OUTER LH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
72158COVER, SEAT TRACK BRACKET, INNER LH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
72266COVER, SEAT TRACK UPPER RAIL, LH
72360CCABLE ASSY, RECLINING ADJUSTER EQUALIZING LH
72554PROTECTOR, RECLINING COVER, LH
72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
72981COVER, FRONT SEAT HEADREST
main72981-11040
73920AAIRBAG ASSY, FRONT SEAT, LH
8202
82667DHOLDER, CONNECTOR
8401
85822BMOTOR ASSY, POWER SEAT TILT, LH
85822CMOTOR ASSY, POWER SEAT LIFTER, LH
85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
87330BBLOWER ASSY, HEATER
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
9008416012
main90084-16012
9011910601
main90119-10601
9014810007
main90148-10007
9016440105
main90164-40105
9016740044
main90167-40044
9046315002
main90463-15002
9046707215
main90467-07215
9155180510
main91551-80510
9324915006
main93249-15006
9356054016
main93560-54016
9418560600
main94185-60600
66 parts on this diagram · 2 diagrams in section
