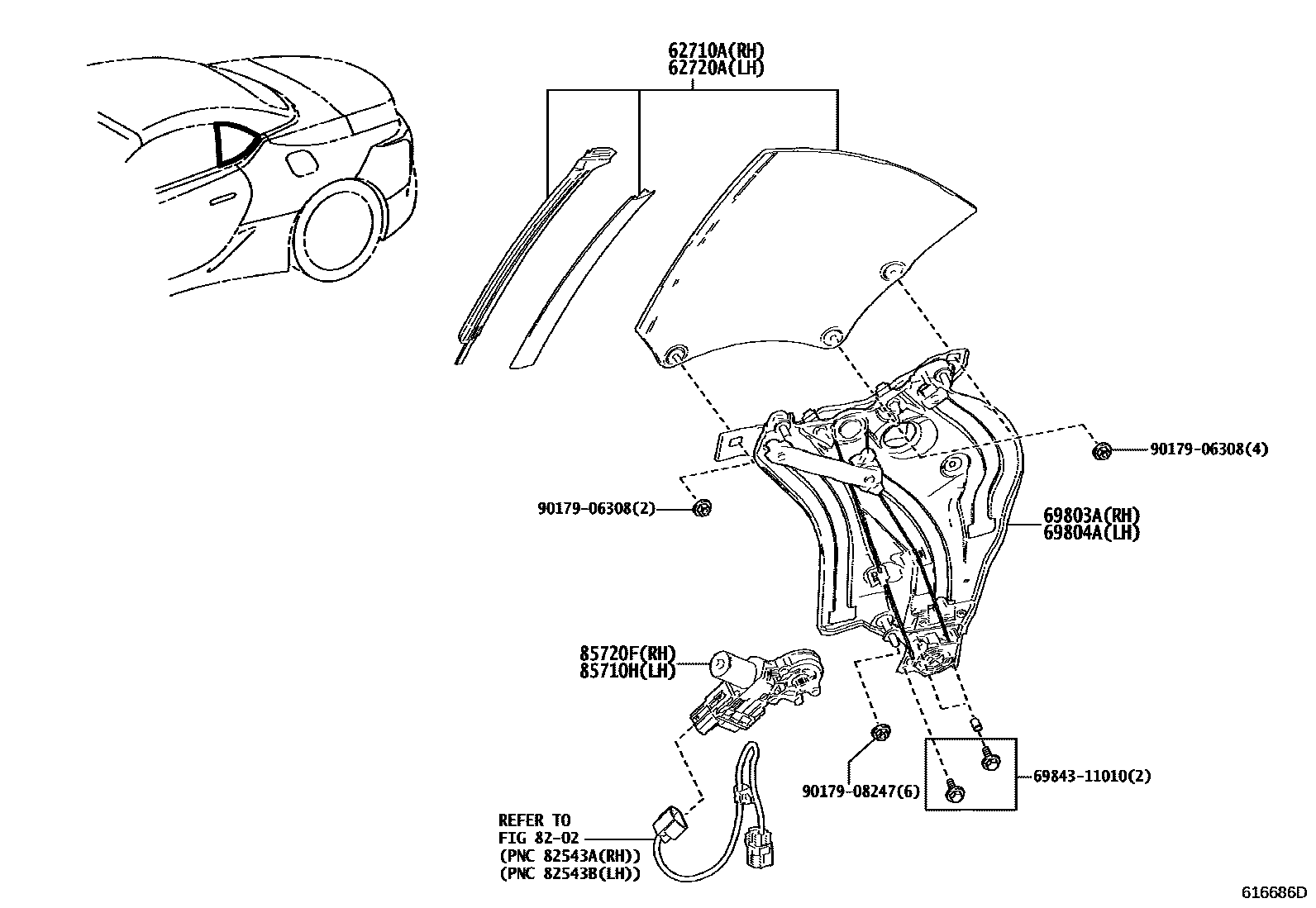

QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-11170iURZ100202007

62720AWINDOW ASSY, QUARTER, LH

main62720-11170iURZ100202007

69803AREGULATOR SUB-ASSY, QUARTER WINDOW, RH

main69803-11010iURZ100202007

69804AREGULATOR SUB-ASSY, QUARTER WINDOW, LH

main69804-11010iURZ100202007

8202

85710HMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-11030iURZ100202007

85720FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-11030iURZ100202007

6984311010

main69843-11010

9017906308

main90179-06308

9017908247

main90179-08247

10 parts on this diagram · 1 diagram in section
