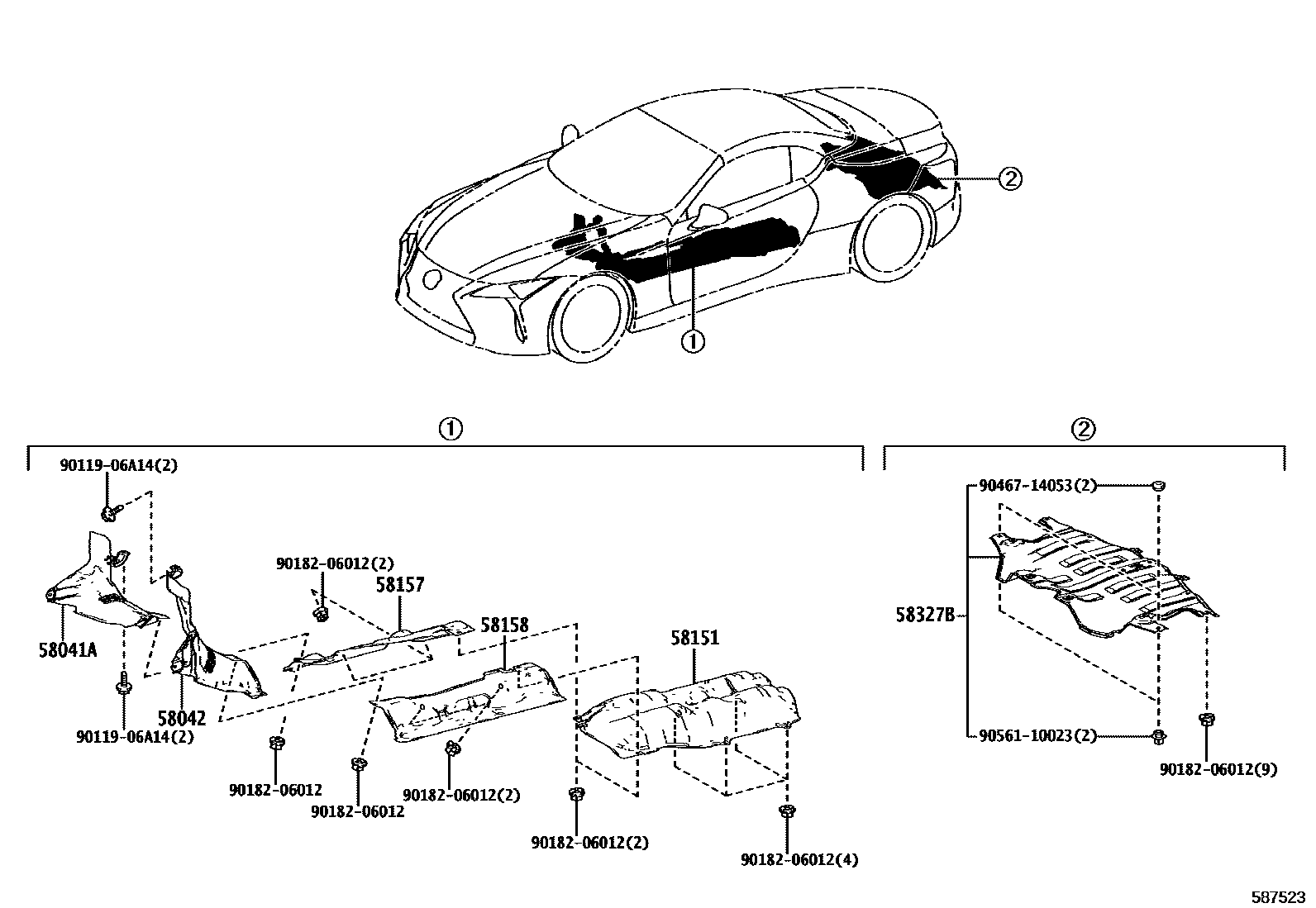

FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-11021iURZ100202007

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-11021iURZ100202007

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-11010iURZ100202007-202303

sub58151-11011

main58151-11011iURZ100202304

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-11010iURZ100202007

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-11010iURZ100202007

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-11020iURZ100202007

9011906A14

main90119-06A14

9018206012

main90182-06012

9046714053

main90467-14053

9056110023

main90561-10023

10 parts on this diagram · 1 diagram in section
