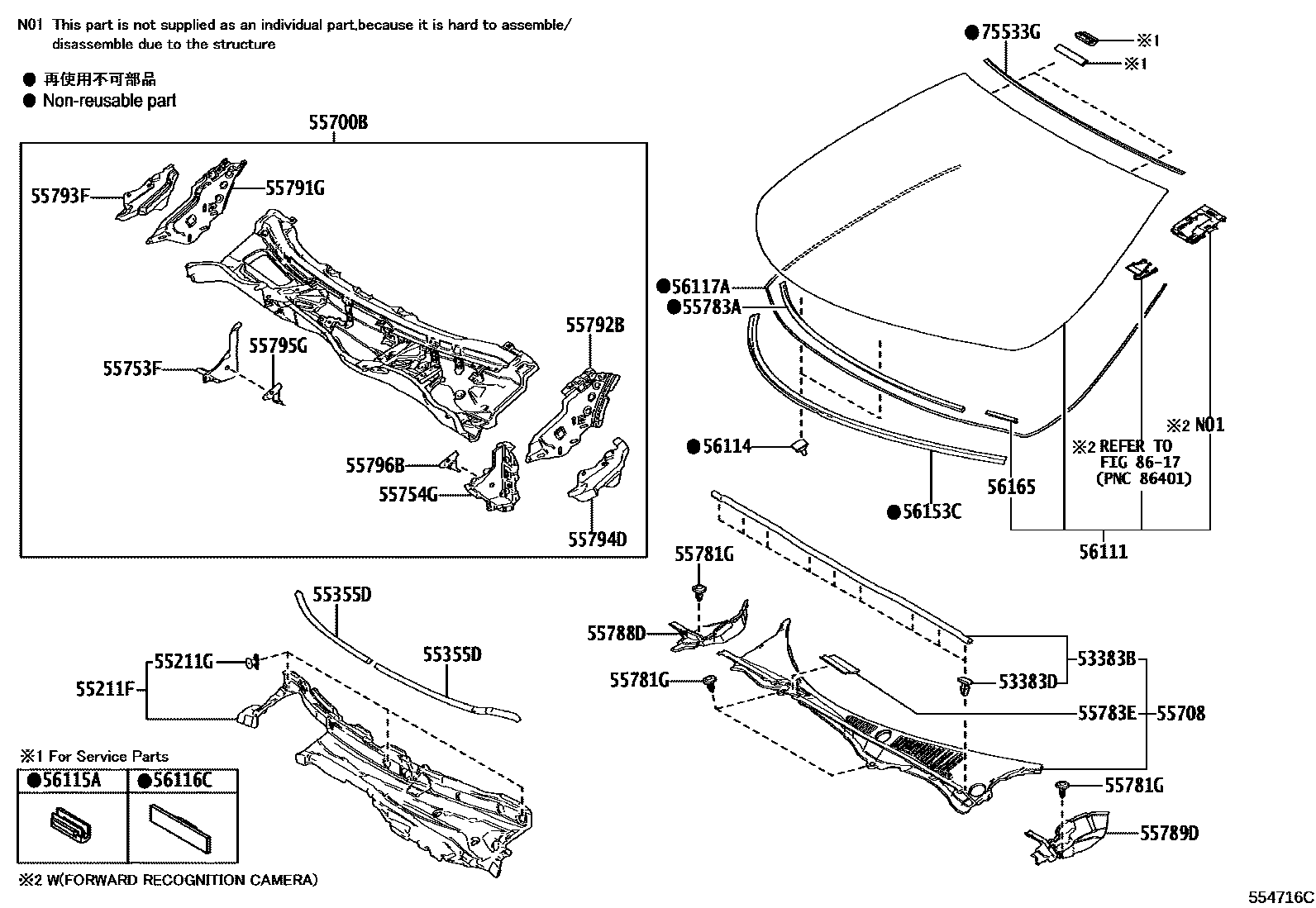

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55211GCLIP, DASH PANEL INSULATOR COVER
55355DCUSHION, INSTRUMENT PANEL, NO.1
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
COLD AREA SPEC-WITH
COLD AREA SPEC-WITH
55753FBRACKET, INSTRUMENT PANEL TO COWL, NO.1
55754GBRACKET, INSTRUMENT PANEL TO COWL, NO.2
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55788DINSULATOR, COWL TOP PANEL, NO.2
55789DINSULATOR, COWL TOP PANEL, NO.3
55791GCOVER, COWL REINFORCEMENT, UPPER RH
55792BCOVER, COWL REINFORCEMENT, UPPER LH
55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH
55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH
55795GCOVER, COWL REINFORCEMENT, UPPER NO.3 RH
55796BCOVER, COWL REINFORCEMENT, UPPER NO.3 LH
56111GLASS, WINDSHIELD
MIDDLE & SOUTH AMERICA SPEC
PHILIPPINE SPEC
HEAD UP DISPLAY-WITH
COLD AREA SPEC-WITH
COLD AREA SPEC-WITH&HEAD UP DISPLAY-WITH
ARGENTINA SPEC
ARGENTINA SPEC
INDONESIA SPEC
SINGAPORE SPEC
COLD AREA SPEC-WITH
SINGAPORE SPEC
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2819,BRUNEI SPEC
56153CMOULDING, FRONT WINDOW, INNER CENTER
56165COVER, FRONT WINDOW INNER MOULDING, LH
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
29 parts on this diagram · 2 diagrams in section
