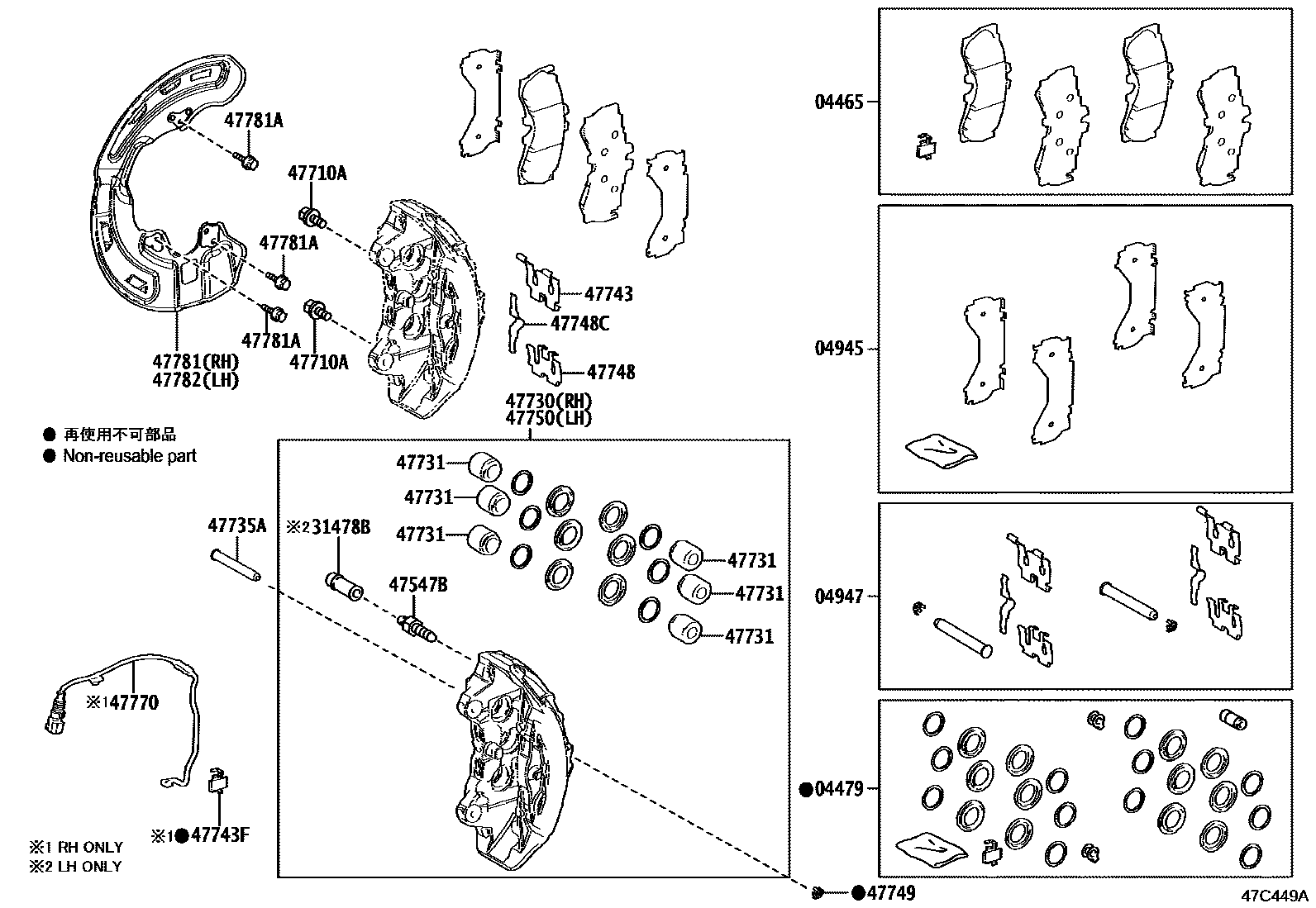

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-11011iURZ100..EUR,GCC202007

MARK AK NS380H

main04465-11020iURZ100..ARL,GEN202007

MARK NBK D6994H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-11010iURZ100202007

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-11011iURZ100202007

04947FITTING KIT, DISC BRAKE, FRONT

main04947-11010iURZ100202007

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iURZ100202007

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010iURZ100202007

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14180iURZ100202007

*14-1.5PX40-35.5

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-11050iURZ100202007

47731PISTON, FRONT DISC BRAKE

main47731-11050iURZ100202007

47735APIN, TORQUE

main47735-11050iURZ100202007

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-11051iURZ100..EUR,GCC202007

47743FCLIP, PAD WEAR INDICATOR WIRE

main47743-11052iURZ100..EUR,GCC202007

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-11050iURZ100..EUR,GCC202007

47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47748-11051iURZ100..EUR,GCC202007

47749CLIP, PIN HOLD

main47743-11050iURZ100..EUR,GCC202007

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-11040iURZ100202007

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-11010iURZ100202007

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-11010iURZ100202007

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06508iURZ100202007

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-11010iURZ100202007

20 parts on this diagram · 2 diagrams in section
