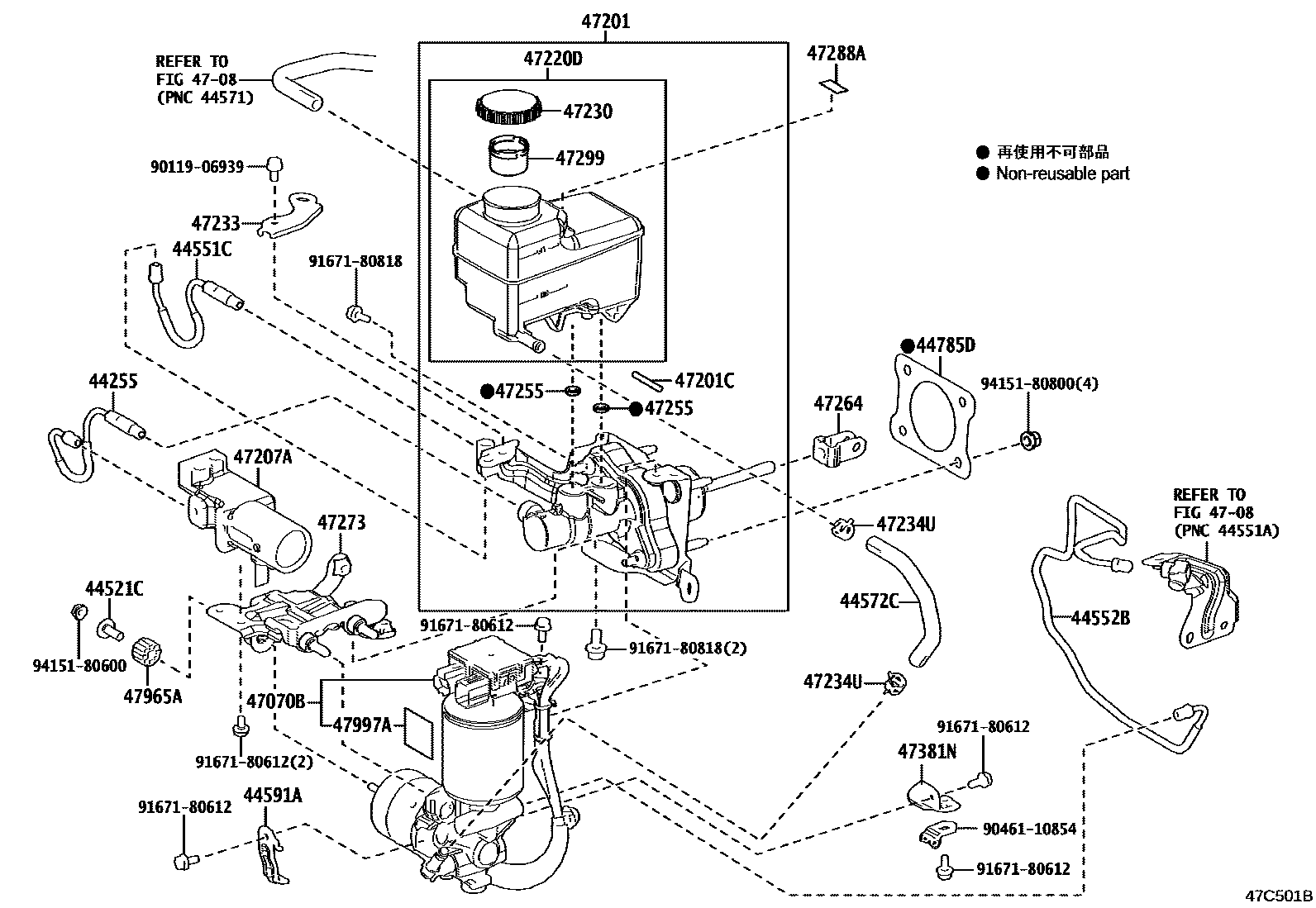

BRAKE MASTER CYLINDER
44521CCOLLAR, BRAKE ACTUATOR CASE
44591ABRACKET, BRAKE ACTUATOR, NO.1
44785DGASKET, BRAKE MASTER CYLINDER
47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR
4708
47201CYLINDER SUB-ASSY, BRAKE MASTER
47201CRING PIN, BRAKE MASTER CYLINDER
47207ACYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR
47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47234UCLIP(FOR RESERVOIR HOSE NO.1)
47255GROMMET, MASTER CYLINDER RESERVOIR
sub90016-AT001
47264CLEVIS, MASTER CYLINDER PUSH ROD
47273BRACKET, BRAKE STROKE SIMULATOR
47288ALABEL, BRAKE FLUID NOTICE
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47965ABUSH, BRAKE BOOSTER PUMP
47997ALABEL, ACCUMULATOR CAUTION, NO.1
9011906939
main90119-06939
9046110854
main90461-10854
9167180612
main91671-80612
9167180818
main91671-80818
9415180600
main94151-80600
9415180800
main94151-80800
30 parts on this diagram · 2 diagrams in section
