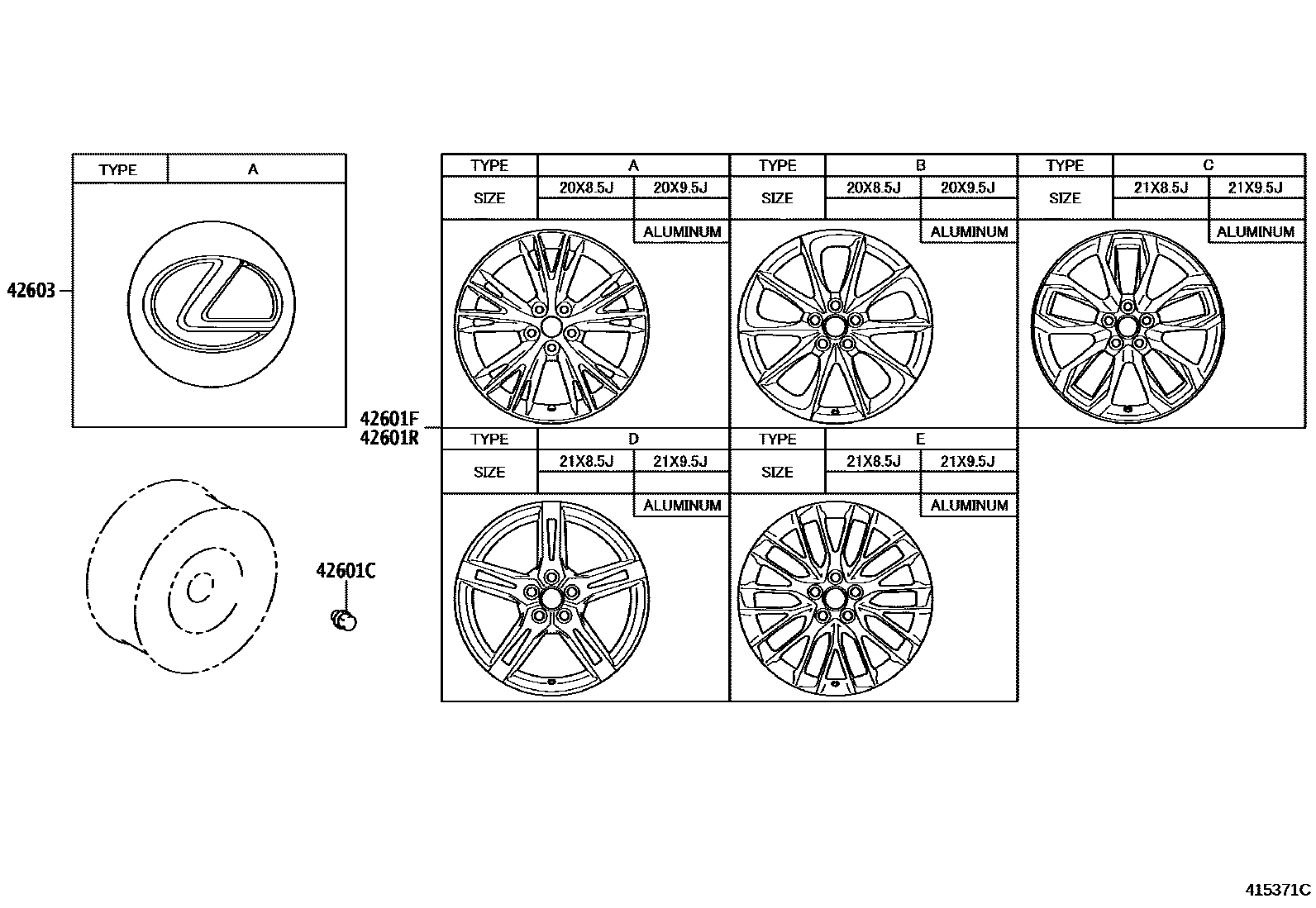

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601CNUT, HUB (FOR AXLE)

main90942-01118iURZ100202007

42601FWHEEL, DISC (FOR FRONT)

main42611-11040iURZ100..ARL,GCC,GEN202007-202111

20X8.5J,#,TYPE A:REFER ILLUST.

main42611-11050iURZ100..EUR202007

20X8.5J,#,TYPE A:REFER ILLUST.

42601RWHEEL, DISC (FOR REAR)

main42611-11060iURZ100..ARL,GCC,GEN202007-202111

20X9.5J,#,TYPE A:REFER ILLUST.

main42611-11070iURZ100..EUR202007

20X9.5J,#,TYPE A:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-53110iURZ100202007

*ALU,TYPE A:REFER ILLUST.

4 parts on this diagram · 3 diagrams in section
