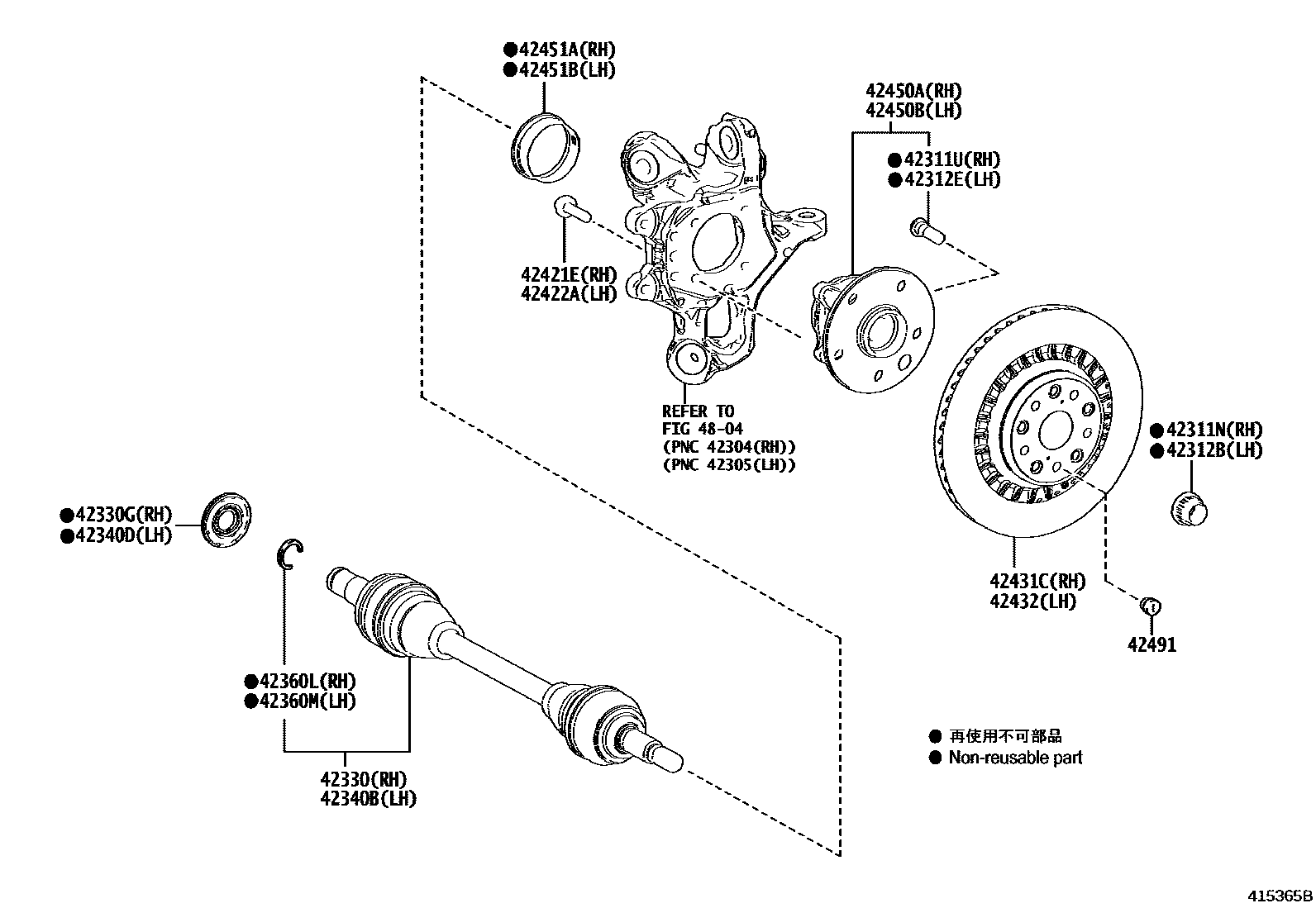

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iURZ100¥260202007

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02083iURZ100¥280202007

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iURZ100¥260202007

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02083iURZ100¥280202007

42330SHAFT ASSY, REAR DRIVE, RH

main42330-11010iURZ100¥39,900202007

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-47031iURZ100¥1,650202007

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-11010iURZ100¥39,900202007

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-47032iURZ100¥1,650202007

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-37010iURZ100¥90202007

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-37010iURZ100¥90202007

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12364iURZ100¥250202007

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12364iURZ100¥250202007

42431CDISC, REAR RH

main42431-11020iURZ100¥11,900202007

sub42431-11031¥10,900

42432DISC, REAR LH

main42432-11010iURZ100¥11,900202007

sub42432-11021¥10,900

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-50042iURZ100¥11,900202007

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-50042iURZ100¥11,900202007

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-50030iURZ100¥790202007

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-50030iURZ100¥790202007

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010iURZ100¥60202007

4804

20 parts on this diagram · 1 diagram in section
