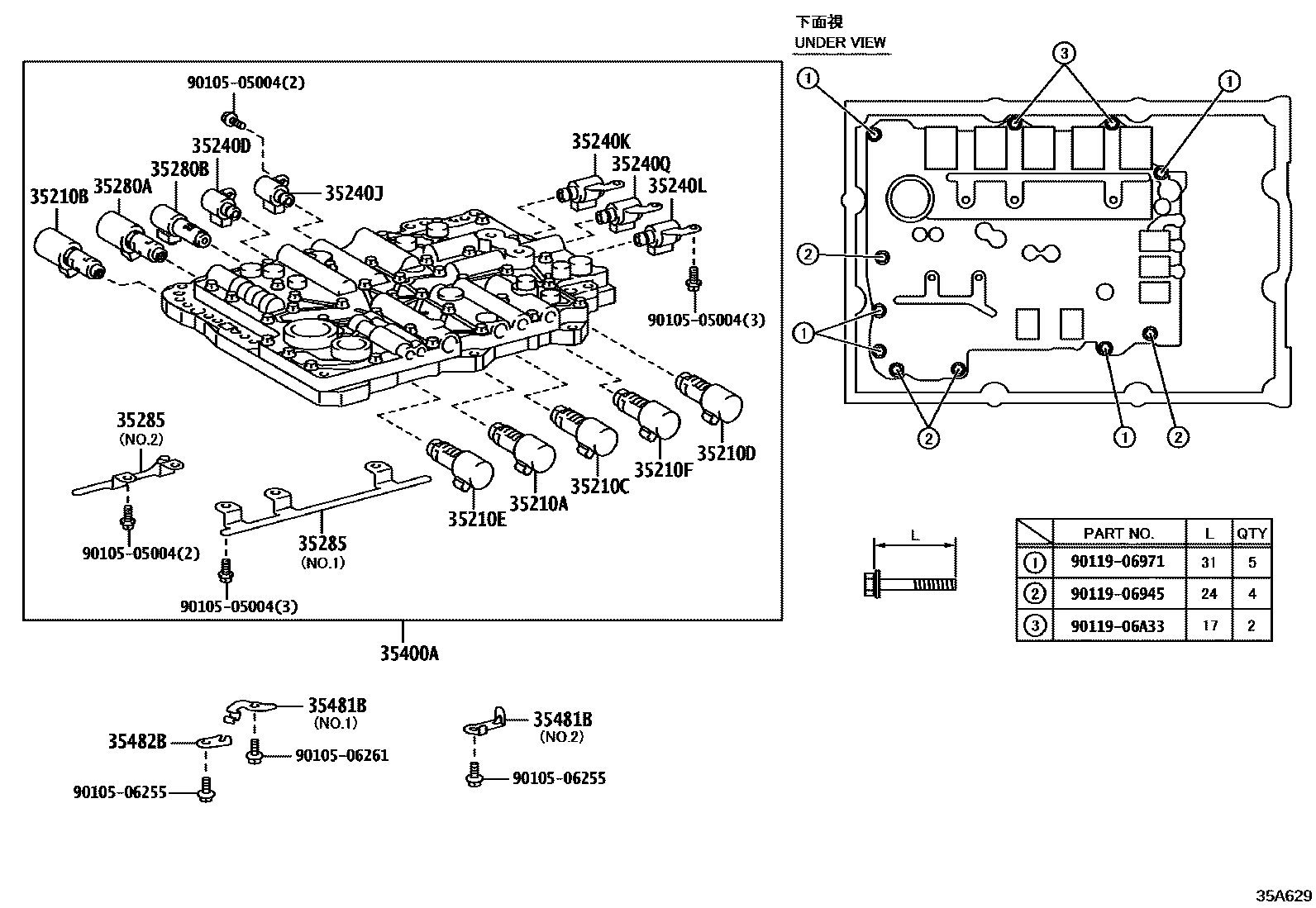

VALVE BODY & OIL STRAINER (ATM)
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35210CVALVE, SOLENOID(SL2)
35210DVALVE, SOLENOID(SL4)
35210EVALVE, SOLENOID(SL5)
35210FVALVE, SOLENOID(SL6)
35240DVALVE, SOLENOID(SL)
35240JVALVE, SOLENOID(SR)
35240KSOLENOID ASSY, TRANSMISSION 3WAY(SC1)
35240LSOLENOID ASSY, TRANSMISSION 3WAY(SC2)
35240QSOLENOID ASSY, TRANSMISSION 3WAY(SC3)
35280AVALVE, SOLENOID(SLU)
35280BVALVE, SOLENOID(SLT)
35285PLATE, SOLENOID LOCK
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35400ABODY ASSY, TRANSMISSION VALVE W/SOLENOID
35481BCLAMP, VALVE BODY WIRE HARNESS
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35482BCLAMP, TEMPERATURE SENSOR
9010505004
9010506255
9010506261
9011906945
9011906971
9011906A33
23 parts on this diagram · 2 diagrams in section
