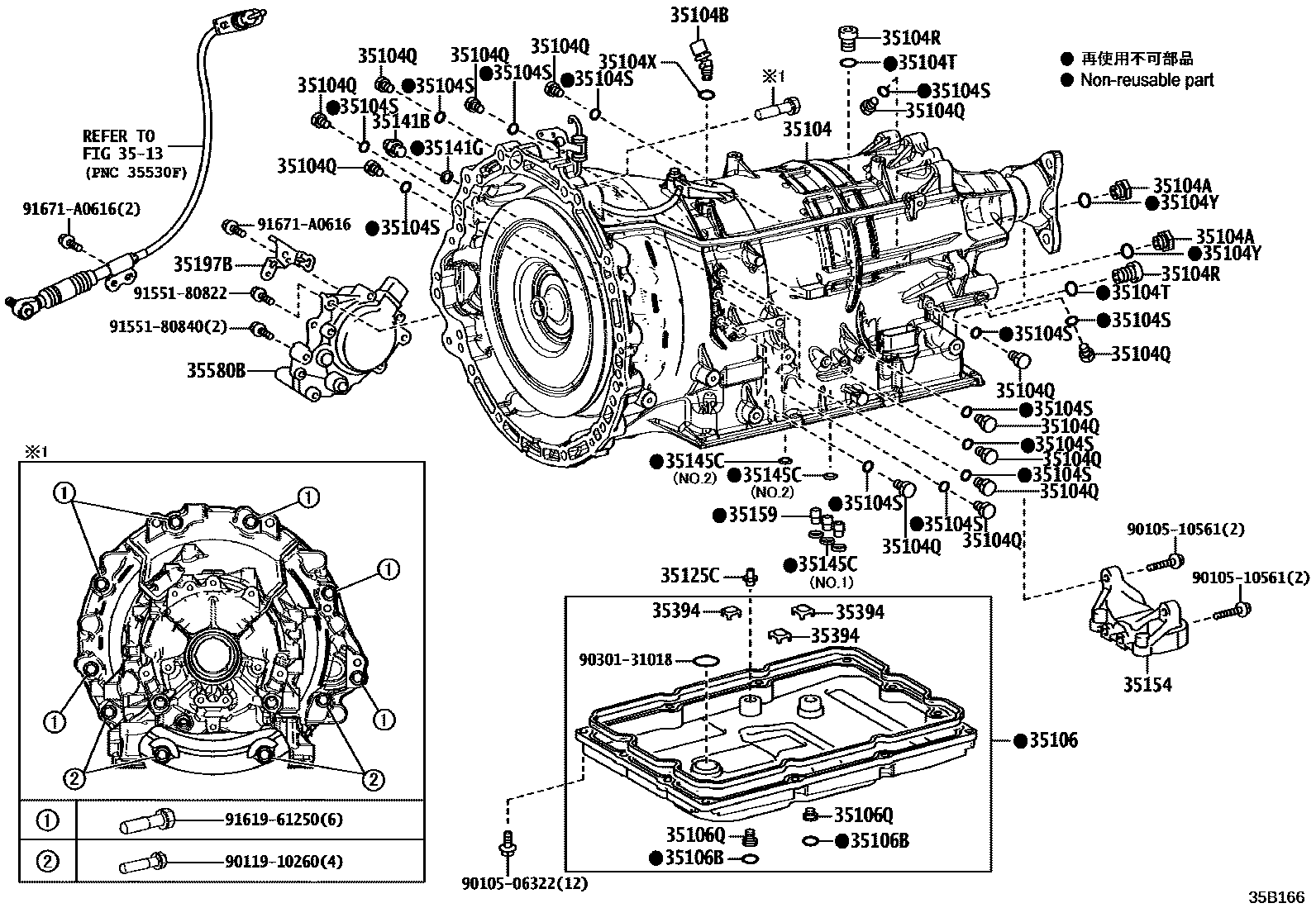

TRANSMISSION CASE & OIL PAN (ATM)

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-11010iURZ100¥45,100202007

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-18059iURZ100¥190202007

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03238iURZ100¥90202007

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iURZ100¥120202007

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14011iURZ100¥190202007

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iURZ100¥170202007

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-11030iURZ100¥140202007

35104XRING, O (FOR BREATHER PLUG)

main90301-08015iURZ100¥140202007

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-15004iURZ100¥160202007

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-11020iURZ100¥8,700202007

35106BGASKET, DRAIN PLUG (ATM)

main90301-17022iURZ100¥170202007

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-12039iURZ100¥190202007

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-11020iURZ100¥170202007

3513

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-18060iURZ100¥240202007

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90430-18008iURZ100¥110202007

35145CGASKET, TRANSAXLE CASE

main35145-11020iURZ100¥340202007

NO.1:REFER ILLUST.

main35145-60020iURZ100¥360202007

NO.2:REFER ILLUST.

35154ADAPTER, TRANSMISSION CASE

main35154-11010iURZ100¥6,300202007

35159GASKET, BRAKE DRUM

main35159-11010iURZ100¥620202007

35197BBRACKET, HEAT INSULATOR, NO.2

main35197-11010iURZ100¥370202007

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-11010iURZ100¥350202007

35580BACTUATOR ASSY, SHIFT CONTROL

main35580-10010iURZ100¥53,800202007

9010506322

main90105-06322¥60

9010510561

main90105-10561¥120

9011910260

main90119-10260¥210

9030131018

main90301-31018¥170

9155180822

main91551-80822¥80

9155180840

main91551-80840¥120

9161961250

main91619-61250¥140

91671A0616

main91671-A0616¥60

30 parts on this diagram · 1 diagram in section
