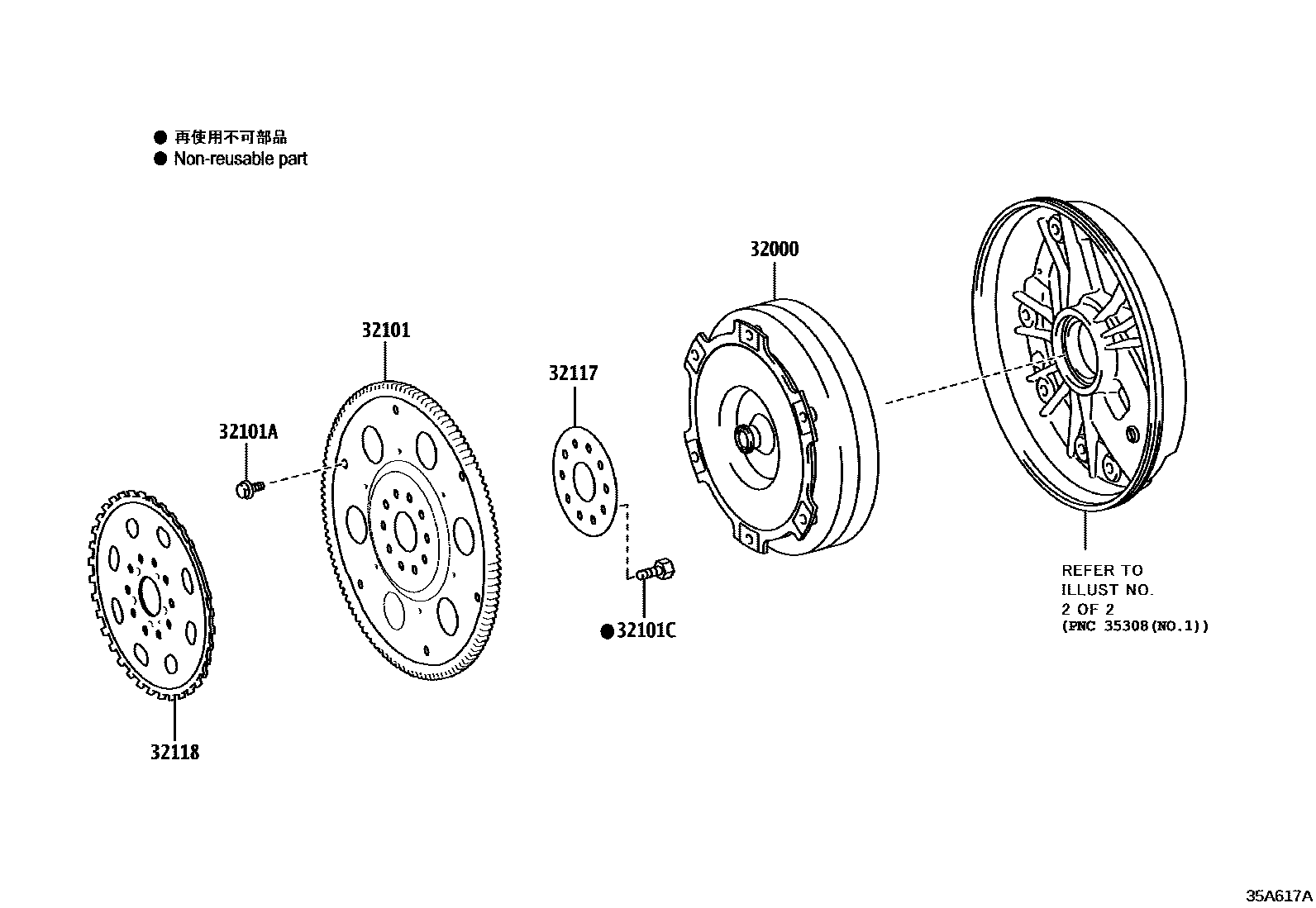

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AGA0E 0002 1AGA0E

32000CONVERTER ASSY, TORQUE

main32000-11010iURZ100¥149,000202007

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-24020iURZ100¥13,400202007

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10340iURZ100¥110202007

*10-1.5PX12.8-9.8,SILVER WHITE

main90105-10547iURZ100¥160202007

*10-1.5PX12.8-9.7,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90910-02129iURZ100¥110202007-202104

*10-1.25PX23-16,(J)

main90910-A2002iURZ100202007-202104

*10-1.25PX23-16,(L)

32117SPACER, DRIVE PLATE, REAR

main32117-34010iURZ100¥930202007

32118ROTOR, CRANKSHAFT ANGLE SENSOR

main32118-24010iURZ100¥2,480202007

6 parts on this diagram · 2 diagrams in section
