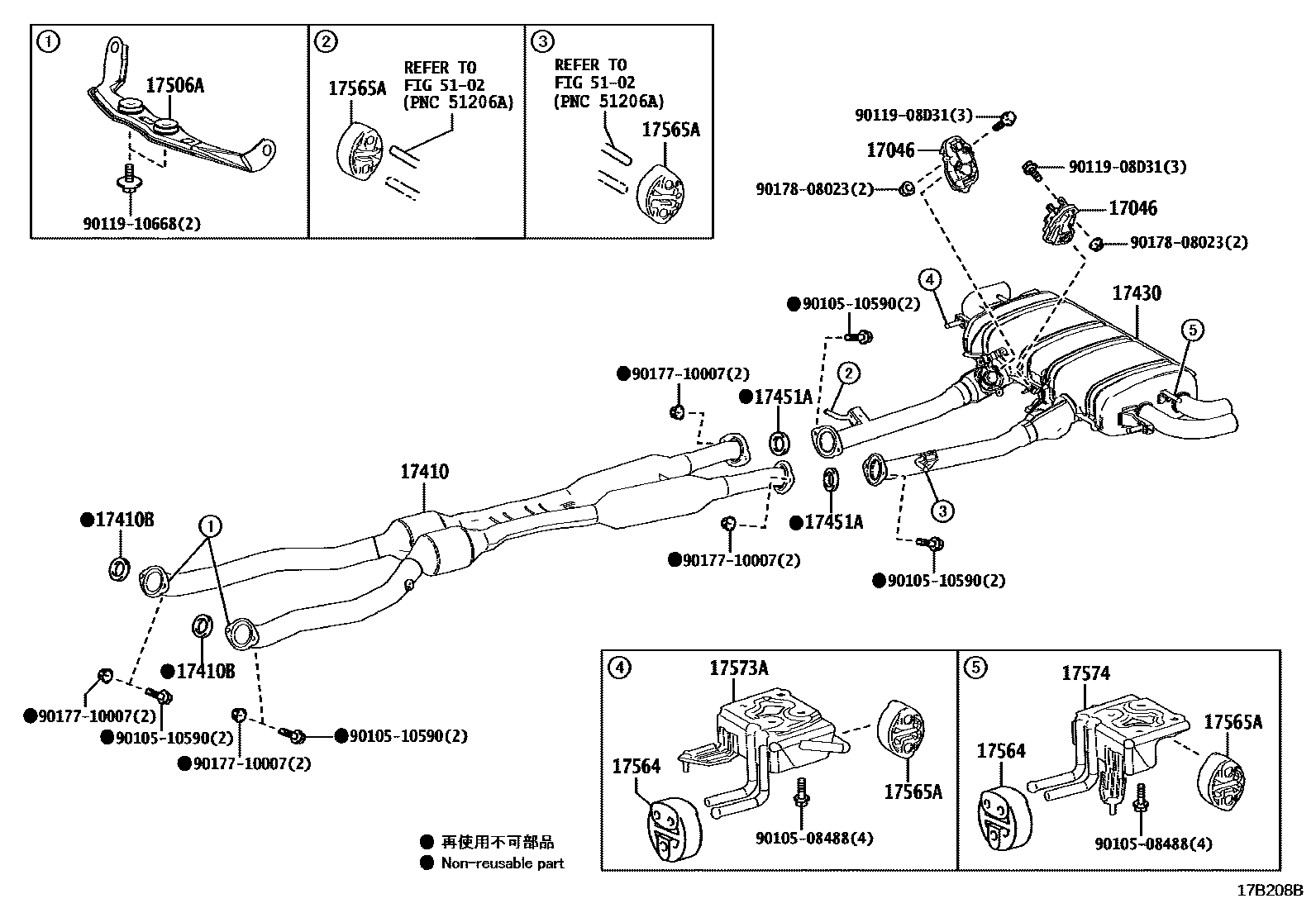

EXHAUST PIPE

17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL

main17046-38020i2URGSE..URZ100202007

17410PIPE ASSY, EXHAUST, FRONT

main17410-38570i2URGSE..URZ100..ARL,GCC202007

*114=TOYOTA/PA6/Y

main17410-38570i2URGSE..URZ100..ARL,GCC202007

*114=TOYOTA/PA6/Y,AZERBAIJAN SPEC

main17410-38570i2URGSE..URZ100..ARL,GCC202007

*114=TOYOTA/PA6/Y,PHILIPPINE SPEC

main17410-38570i2URGSE..URZ100..ARL,GCC202007

*114=TOYOTA/PA6/Y,MIDDLE & SOUTH AMERICA SPEC

main17410-38570i2URGSE..URZ100..ARL,GCC202007

*114=TOYOTA/PA6/Y,UKRAINE SPEC

main17410-38570i2URGSE..URZ100..ARL,GCC202007

*114=TOYOTA/PA6/Y,ARGENTINA SPEC

main17410-38570i2URGSE..URZ100..ARL,GCC202007

*114=TOYOTA/PA6/Y,GUATEMALA SPEC

main17410-38610i2URGSE..URZ100..EUR,GEN202007

*114=TOYOTA/PB1/Y

17410BGASKET, EXHAUST PIPE

main90917-06070i2URGSE..URZ100202007

17430PIPE ASSY, EXHAUST, TAIL

main17405-38050i2URGSE..URZ100202007

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06078i2URGSE..URZ100202007

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-38150i2URGSE..URZ100202007

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-31050i2URGSE..URZ100202007

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i2URGSE..URZ100202007

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17573-38072i2URGSE..URZ100202007

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-38092i2URGSE..URZ100202007

5102

9010508488

main90105-08488

9010510590

main90105-10590

9011908D31

main90119-08D31

9011910668

main90119-10668

9017710007

main90177-10007

9017808023

main90178-08023

17 parts on this diagram · 1 diagram in section
