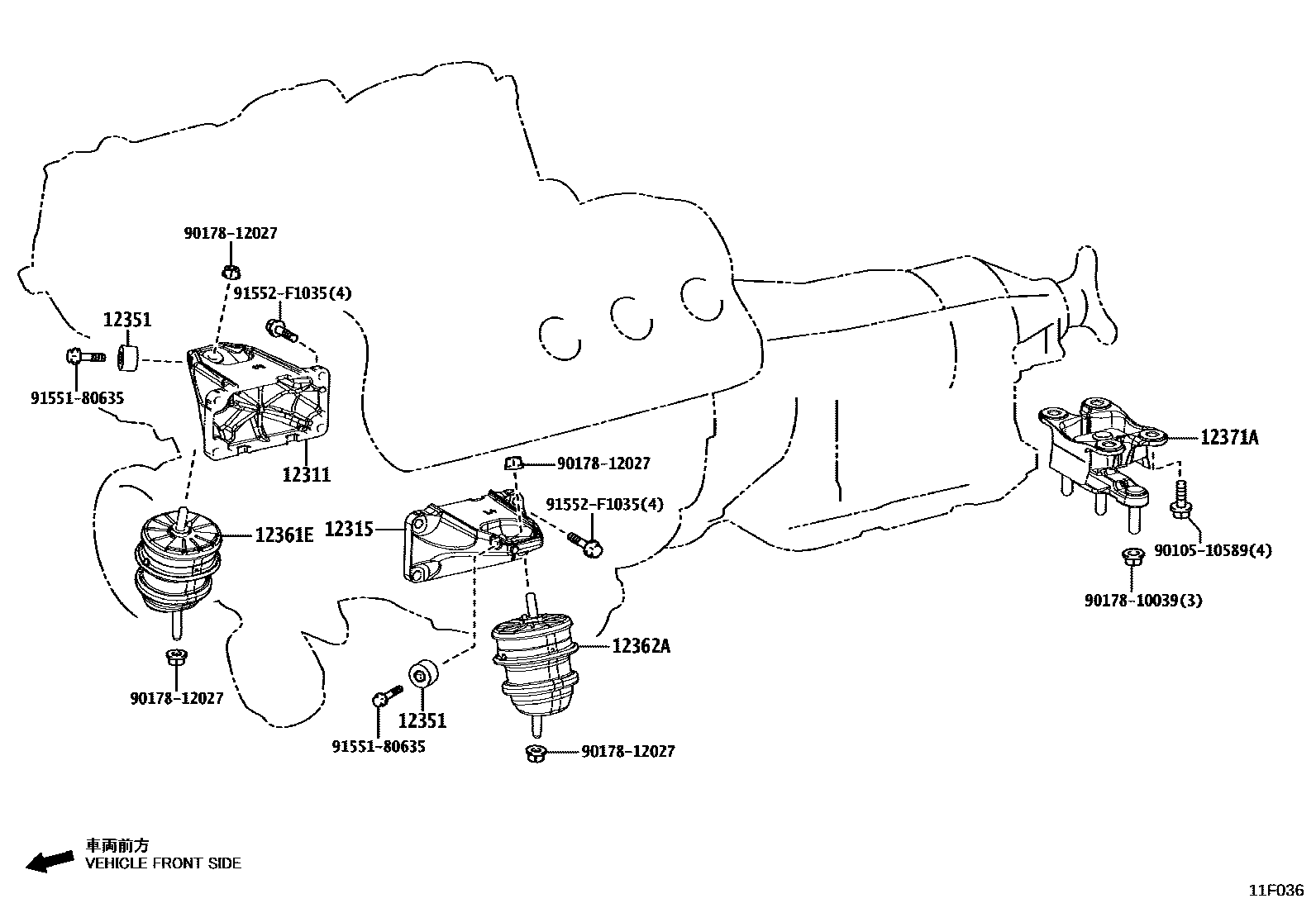

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-38050i2URGSE..URZ100202007

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-38040i2URGSE..URZ100202007

12351DAMPER, ENGINE MOUNTING

main12351-38020i2URGSE..URZ100202007

12361EINSULATOR, ENGINE MOUNTING, FRONT RH

main12361-38290i2URGSE..URZ100202007-202303

sub12361-38291

main12361-38291i2URGSE..URZ100202304

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12361-38290i2URGSE..URZ100202007-202303

sub12361-38291

main12361-38291i2URGSE..URZ100202304

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-38170i2URGSE..URZ100202007

9010510589

main90105-10589

9017810039

main90178-10039

9017812027

main90178-12027

9155180635

main91551-80635

91552F1035

main91552-F1035

11 parts on this diagram · 1 diagram in section
