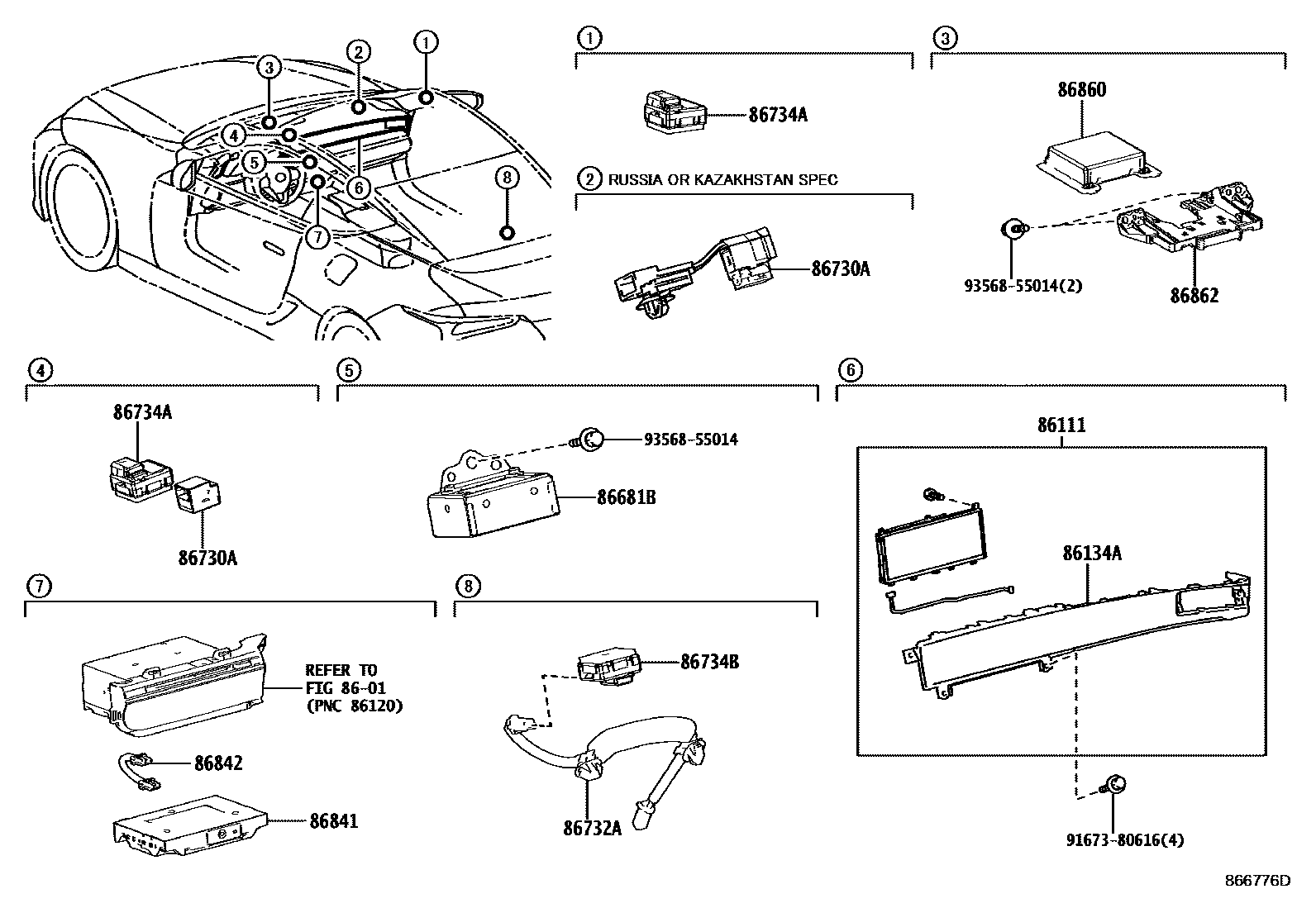

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601

86111MULTI-DISPLAY

main86111-11010iGWZ100,URZ100..RHD201705

DENSO

main86111-11020iGWZ100,URZ100..LHD201705-201801

DENSO

sub86111-11021

main86111-11021iGWZ100,URZ100..LHD201802-202005

DENSO

sub86111-11022

main86111-11022iGWZ100,URZ100..LHD202006

DENSO

86134APARTS, MULTI-DISPLAY

main86134-11010iGWZ100,URZ100..LHD201705

main86134-11020iGWZ100,URZ100..RHD201705

86681BDIVIDER, ANTENNA

86730AMICROPHONE ASSY, TELEPHONE

main86730-11010iGWZ100,URZ100201705-202104

sub86730-48110

main86730-48110iGWZ100,URZ100202105

86732AWIRE,MICROPHONE

main86732-11010iGWZ100,URZ100201705

86734AMICROPHONE, ACTIVE NOISE CONTROL, FRONT

main86734-11010iGWZ100,URZ100201705-202011

main86734-11030iGWZ100,URZ100202012

86734BMICROPHONE, ACTIVE NOISE CONTROL, REAR

main86734-11010iGWZ100,URZ100201705

86841COMPUTER, NAVIGATION

main86840-0W030iGWZ100,URZ100201705-201707

sub86840-0W031

main86840-0W031iGWZ100,URZ100201708-201710

sub86840-0W032

main86840-0W032iGWZ100,URZ100201711-202004

main86840-0W230iGWZ100,URZ100202004-202203

sub86840-0W231

main86840-0W231iGWZ100,URZ100202204

86842WIRE, NAVIGATION, NO.1

main86842-11010iGWZ100,URZ100201705

86860ANTENNA ASSY, NAVIGATION

main86860-78010iGWZ100,URZ100201705

86862BRACKET, NAVIGATION ANTENNA

main86862-58020iGWZ100,URZ100201705

9167380616

main91673-80616

9356855014

main93568-55014

14 parts on this diagram · 2 diagrams in section
