RADIO RECEIVER & AMPLIFIER & CONDENSER

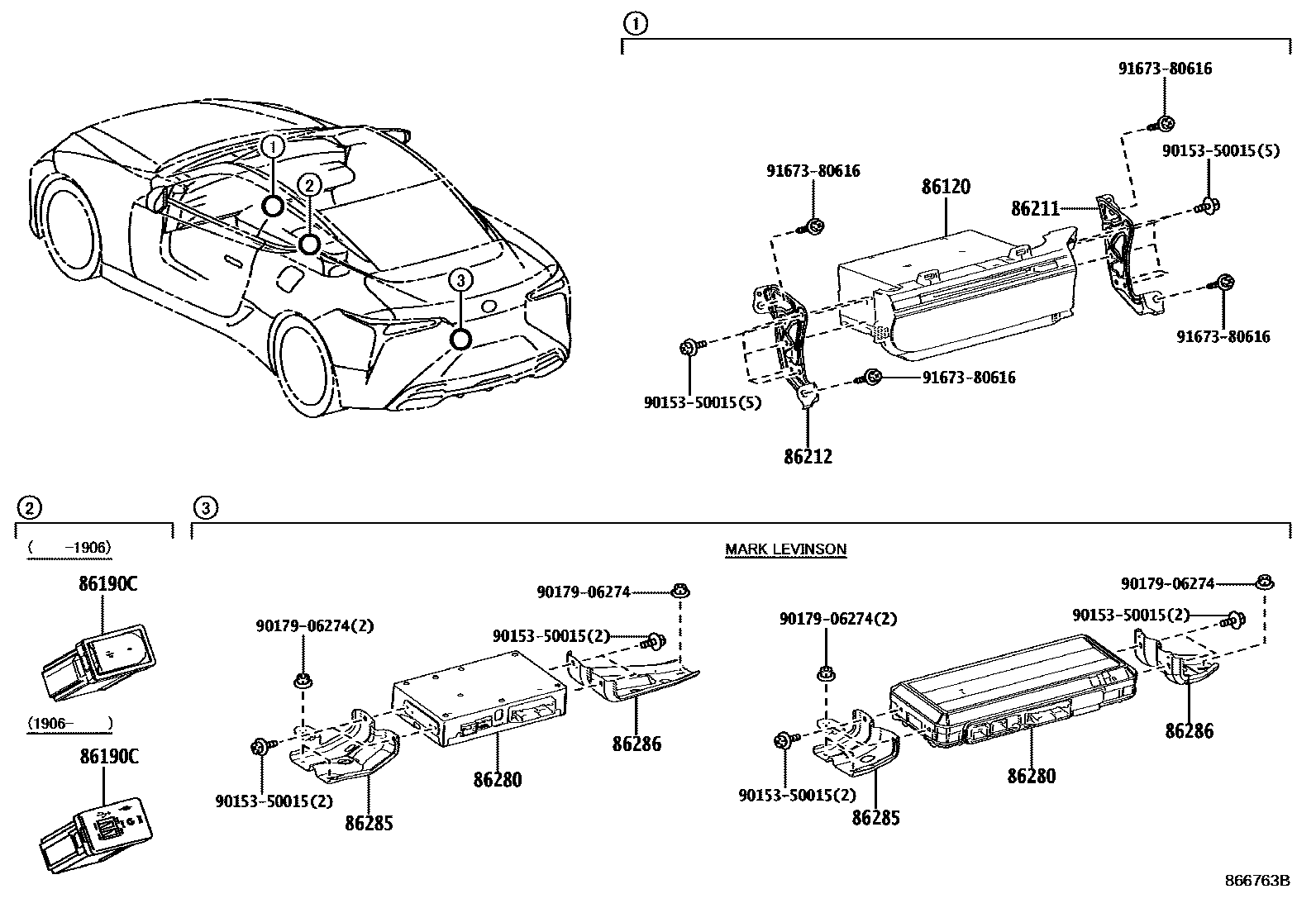

Parts diagram
86120RECEIVER ASSY, RADIO
main86120-11080i201705-201806
PANASONIC
main86120-11090i201705-201806
PANASONIC,AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11100i201705-201806
PANASONIC
main86120-11110i201705-201806
PANASONIC,AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11390i201705-201809
PANASONIC,AZERBAIJAN,GEORGIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11390i201705-201809
PANASONIC,UKRAINE SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11390i201705-201809
PANASONIC,KAZAKHSTAN SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11390i201705-201809
PANASONIC,RUSSIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11540i201809-202004
PANASONIC
main86120-11550i201809-202004
PANASONIC,AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11560i201809-201910
PANASONIC
sub86120-11561
main86120-11561i201911-202004
PANASONIC
main86120-11570i201809-201910
PANASONIC,AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
sub86120-11571
main86120-11571i201911-202004
PANASONIC,AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11780i201809-202004
PANASONIC,UKRAINE SPEC
main86120-11780i201809-202004
PANASONIC,RUSSIA SPEC
main86120-11780i201809-202004
PANASONIC,AZERBAIJAN,GEORGIA SPEC
main86120-11780i201809-202004
PANASONIC,KAZAKHSTAN SPEC
main86120-11790i201809-202004
PANASONIC,KAZAKHSTAN SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11790i201809-202004
PANASONIC,UKRAINE SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11790i201809-202004
PANASONIC,RUSSIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11790i201809-202004
PANASONIC,AZERBAIJAN,GEORGIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11C90i201906-202004
PIONEER,INDIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11D40i202004-202102
PANASONIC
sub86120-11D41
main86120-11D41i202103-202210
PANASONIC
main86120-11D50i202004-202102
PANASONIC,AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
sub86120-11D51
main86120-11D51i202210
PANASONIC
main86120-11D51i202103-202210
PANASONIC,AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11D60i202210
PIONEER,INDIA SPEC
main86120-11D60i202004-202210
PIONEER,INDIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11E90i202004-202102
PANASONIC
sub86120-11E91
main86120-11E91i202103-202210
PANASONIC
main86120-11F00i202004-202102
PANASONIC,AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
sub86120-11F01
main86120-11F01i202103-202209
PANASONIC,AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
sub86120-11F02
main86120-11F02i202210
PANASONIC
main86120-11F10i202004-202102
PANASONIC,AZERBAIJAN,GEORGIA SPEC
sub86120-11F11
main86120-11F10i202004-202102
PANASONIC,RUSSIA SPEC
sub86120-11F11
main86120-11F10i202004-202102
PANASONIC,UKRAINE SPEC
sub86120-11F11
main86120-11F10i202004-202102
PANASONIC,KAZAKHSTAN SPEC
sub86120-11F11
main86120-11F11i202103-202201
PANASONIC,KAZAKHSTAN SPEC
main86120-11F11i202103-202201
PANASONIC,RUSSIA SPEC
main86120-11F11i202103-202201
PANASONIC,AZERBAIJAN,GEORGIA SPEC
main86120-11F11i202103-202201
PANASONIC,UKRAINE SPEC
main86120-11F11i202111-202201
PANASONIC,ARMENIA SPEC
main86120-11F11i202111-202201
PANASONIC,GEORGIA SPEC
main86120-11F11i202111-202201
PANASONIC,BELARUS SPEC
main86120-11F20i202004-202102
PANASONIC,AZERBAIJAN,GEORGIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
sub86120-11F21
main86120-11F20i202004-202102
PANASONIC,RUSSIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
sub86120-11F21
main86120-11F20i202004-202102
PANASONIC,UKRAINE SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
sub86120-11F21
main86120-11F20i202004-202102
PANASONIC,KAZAKHSTAN SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
sub86120-11F21
main86120-11F21i202103-202201
PANASONIC,KAZAKHSTAN SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11F21i202103-202201
PANASONIC,RUSSIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11F21i202103-202201
PANASONIC,AZERBAIJAN,GEORGIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11F21i202103-202201
PANASONIC,UKRAINE SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11F21i202111-202201
PANASONIC,GEORGIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11F21i202111-202201
PANASONIC,ARMENIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11F21i202111-202201
PANASONIC,BELARUS SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11G80i202201-202210
PANASONIC,GEORGIA SPEC
main86120-11G80i202201-202210
PANASONIC,RUSSIA SPEC
main86120-11G80i202201-202210
PANASONIC,AZERBAIJAN,GEORGIA SPEC
main86120-11G80i202201-202210
PANASONIC,UKRAINE SPEC
main86120-11G80i202201-202210
PANASONIC,KAZAKHSTAN SPEC
main86120-11G80i202201-202210
PANASONIC,BELARUS SPEC
main86120-11G80i202201-202210
PANASONIC,ARMENIA SPEC
main86120-11G90i202210
PANASONIC,ARMENIA SPEC
main86120-11G90i202201-202210
PANASONIC,GEORGIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11G90i202201-202210
PANASONIC,ARMENIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11G90i202201-202210
PANASONIC,BELARUS SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11G90i202201-202210
PANASONIC,RUSSIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11G90i202201-202210
PANASONIC,AZERBAIJAN,GEORGIA SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11G90i202201-202210
PANASONIC,UKRAINE SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11G90i202201-202210
PANASONIC,KAZAKHSTAN SPEC&AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86120-11G90i202210
PANASONIC,RUSSIA SPEC
main86120-11G90i202210
PANASONIC,AZERBAIJAN,GEORGIA SPEC
main86120-11G90i202210
PANASONIC,UKRAINE SPEC
main86120-11G90i202210
PANASONIC,KAZAKHSTAN SPEC
main86120-11G90i202210
PANASONIC,BELARUS SPEC
main86120-11G90i202210
PANASONIC,GEORGIA SPEC
86190CADAPTER ASSY, STEREO JACK, NO.1
main86190-11010i201705-201906
main86190-24030i201906
86211BRACKET, RADIO, NO.1
main86211-11010i201705
86212BRACKET, RADIO, NO.2
main86212-11010i201705
86280AMPLIFIER ASSY, STEREO COMPONENT
main86280-0WE20i201705-201711
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
sub86280-0WE22
main86280-0WE22i201711-201909
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
sub86280-11040
main86280-0WF00i201705-201711
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
sub86280-0WF02
main86280-0WF02i201711-201910
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
sub86280-11050
main86280-11010i201705-201709
sub86280-11011
main86280-11011i201710-202210
main86280-11020i201705-201709
sub86280-11021
main86280-11021i201710-202210
main86280-11040i201910-202210
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86280-11040i202210
main86280-11050i201911-202210
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86280-11050i202210
86285BRACKET, AMPLIFIER, NO.1
main86285-11010i201705-202210
main86285-11020i201705-202210
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86285-11020i202210
86286BRACKET, AMPLIFIER, NO.2
main86286-11010i201705-202210
main86286-11020i201705-202210
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP
main86286-11020i202210
9015350015
main90153-50015
9017906274
main90179-06274
9167380616
main91673-80616

10 parts on this diagram · 2 diagrams in section
