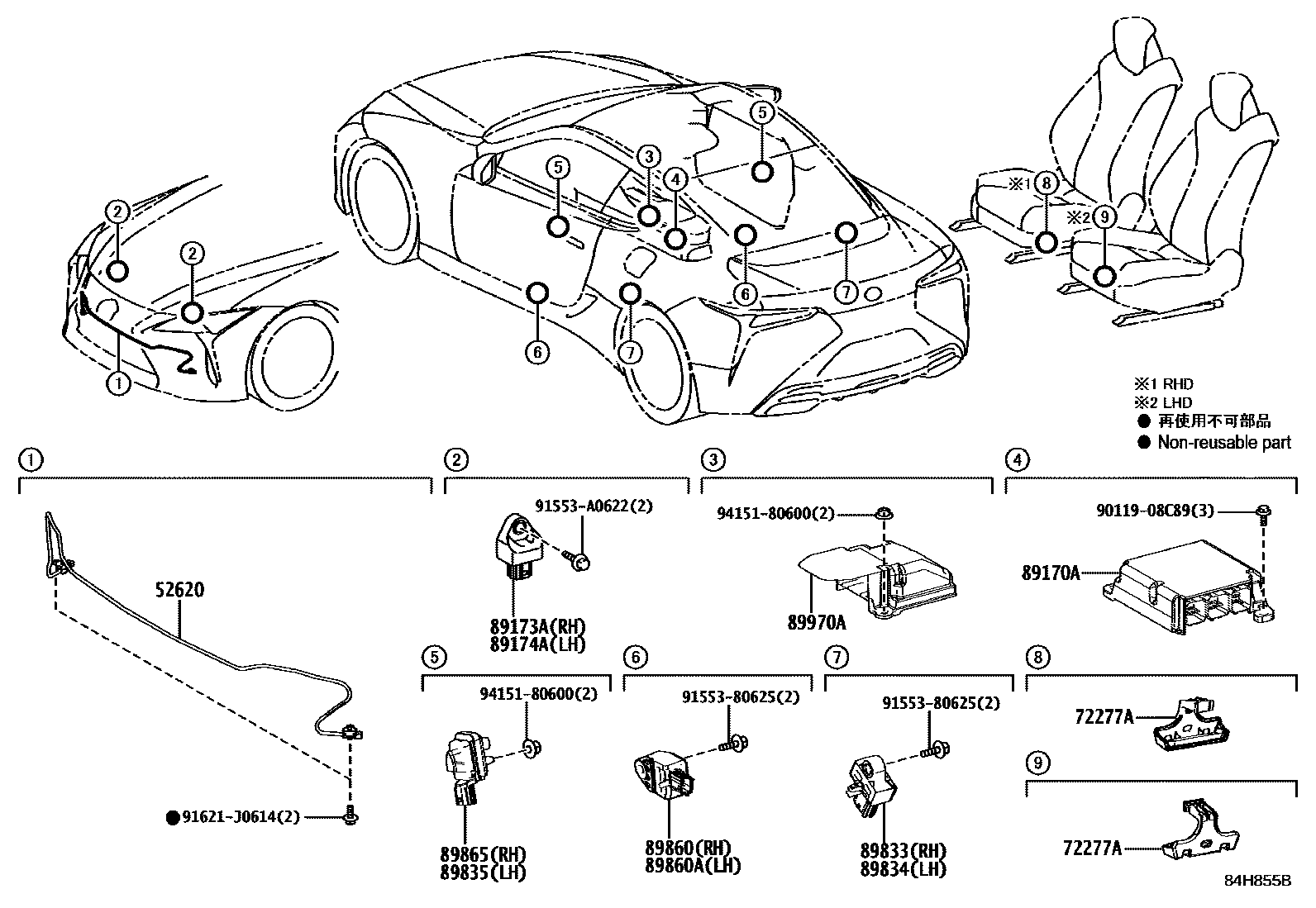

AIR BAG

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-11010iGWZ100,URZ100201705-201707

main52620-11011iGWZ100,URZ100¥0201707

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-47050iGWZ100,URZ100¥590201705

89170ACOMPUTER ASSY, AIRBAG

main89170-11040iGWZ100,URZ100..LHD201705-202004

main89170-11050iGWZ100,URZ100..RHD201705-202004

main89170-11160iGWZ100,URZ100..LHD202004

main89170-11170iGWZ100,URZ100..RHD202004

89173ASENSOR, AIRBAG, FRONT RH

main89173-19505iGWZ100,URZ100¥8,200201705

89174ASENSOR, AIRBAG, FRONT LH

main89173-19505iGWZ100,URZ100¥8,200201705

89833SENSOR, AIRBAG, REAR RH

main89831-28030iGWZ100,URZ100¥8,200201705

89834SENSOR, AIRBAG, REAR LH

main89831-28030iGWZ100,URZ100¥8,200201705

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-33010iGWZ100,URZ100¥9,100201705-202012

sub8983A-33011¥8,200

main8983A-33011iGWZ100,URZ100¥8,200202101

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-11010iGWZ100,URZ100¥8,200201705

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-11010iGWZ100,URZ100¥8,200201705

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-33010iGWZ100,URZ100¥9,100201705-202012

sub8983A-33011¥8,200

main8983A-33011iGWZ100,URZ100¥8,200202101

89970ACOMPUTER ASSY, PEDESTRIAN DETECTION

main89970-11010iGWZ100,URZ100¥22,500201705-202004

9011908C89

main90119-08C89¥80

9155380625

main91553-80625¥60

91553A0622

main91553-A0622¥60

91621J0614

main91621-J0614¥110

9415180600

main94151-80600¥60

17 parts on this diagram · 1 diagram in section
