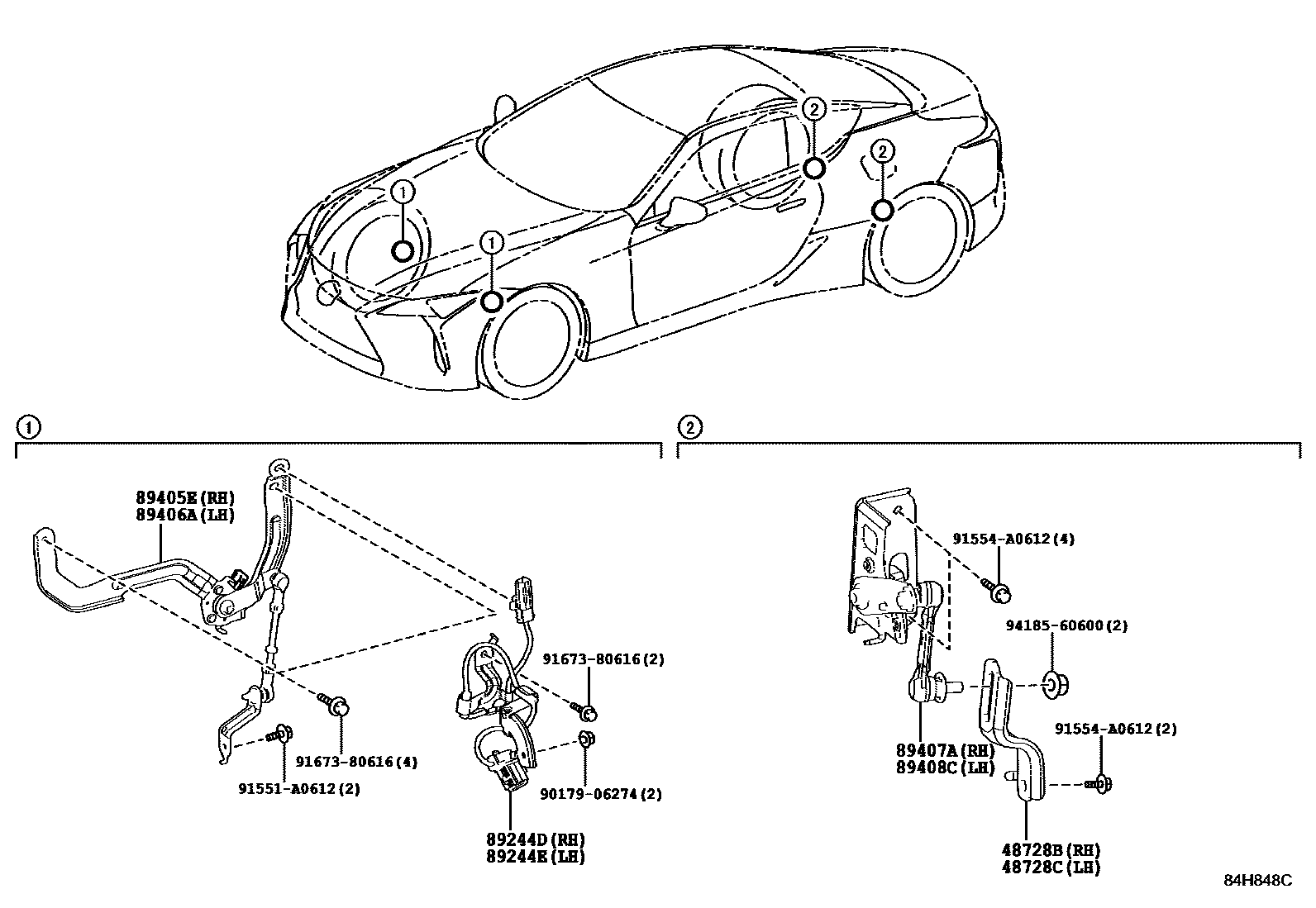

ELECTRONIC HEIGHT CONTROL

48728BBRACKET, LOAD SENSING VALVE SENSOR, RH

main48728-11010iGWZ100,URZ100201705

48728CBRACKET, LOAD SENSING VALVE SENSOR, LH

main48728-11020iGWZ100,URZ100201705

89244DWIRE, ABSORBER CONTROL, RH

main89244-11010iGWZ100,URZ100201705

89244EWIRE, ABSORBER CONTROL, LH

main89244-11020iGWZ100,URZ100201705

89405ESENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-11010iGWZ100,URZ100201705

89406ASENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-11010iGWZ100,URZ100201705

89407ASENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-11010iGWZ100,URZ100201705

89408CSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-11010iGWZ100,URZ100201705

9017906274

main90179-06274

91551A0612

main91551-A0612

91554A0612

main91554-A0612

9167380616

main91673-80616

9418560600

main94185-60600

13 parts on this diagram · 1 diagram in section
